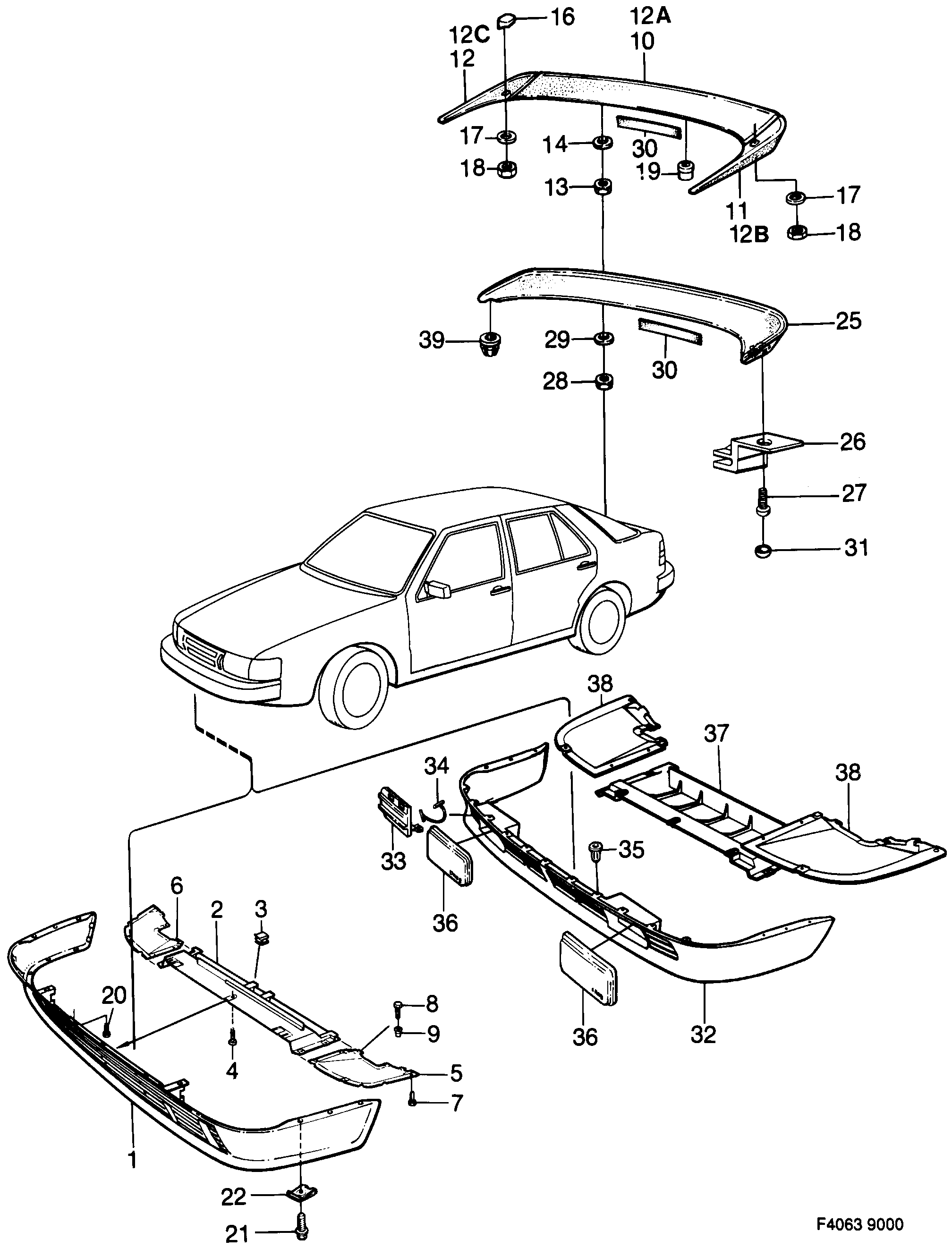

Group 8a Car body, external, section 850
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spoiler | 9262759 |
| 2 | Air shield | 9268079 |
| 2 | Air shield | 9276064 |
| 3 | Clamp | 9265331 |
| 4 | Screw | 92151807 (replaces 7976988) |
| 5 | Shield | 9267972 |
| 6 | Shield | 9267964 |
| 8 | Screw | 92153149 (replaces 7975774) |
| 8 | Screw | 92153149 (replaces 7977465) |
| 9 | Nut | 7975279 |
| 10 | Spoiler | 9255993 |
| 11 | Spoiler | 9256017 |
| 12 | Spoiler | 9256009 |
| 12A | Spoiler | 6957815 |
| 12B | Spoiler | 6957823 |
| 12C | Spoiler | 6957831 |
| 13 | Nut | 8029548 |
| 14 | Washer | 9228255 |
| 16 | Cover | 9265281 |
| 17 | Washer | 92153033 (replaces 7916497) |
| 18 | Nut | 8074106 |
| 19 | Bushing | 9703232 |
| 20 | Screw | 7976996 |
| 21 | Screw | 7973134 |
| 22 | Clip | 7977523 |
| 25 | Spoiler | 7874811 |
| 25 | Spoiler | 8284283 |
| 25 | Spoiler | 7874688 |
| 25 | Spoiler | 8284275 |
| 26 | Attaching bracket | 9277864 |
| 27 | Screw | 8059537 |
| 28 | Nut | 92150136 (replaces 7973365) |
| 28 | Nut | 7398423 |
| 29 | Washer | 9230293 |
| 29 | Washer | 12755938 (replaces 4089389) |
| 30 | Tape | 7874662 |
| 31 | Protecting cap | 9278847 |
| 32 | Spoiler | 4343117 (replaces 6954929) |
| 33 | Cover | 6942429 |
| 34 | Bracket | 6960926 |
| 35 | Nut | 9288846 |
| 36 | Cover | 6956254 |
| 36 | Cover | 6956247 |
| 37 | Air shield | 9279589 |
| 38 | Shield | 6954879 |
| 38 | Shield | 6954861 |
| 39 | Clip | 4013454 |
| Mounting kit | 9269127 | |
| Mounting kit | 9269135 | |
| Mounting kit | 6962708 | |
| Mounting kit | 9698374 | |
| Mounting kit | 8284267 | |
| Mounting kit | 9267956 |
