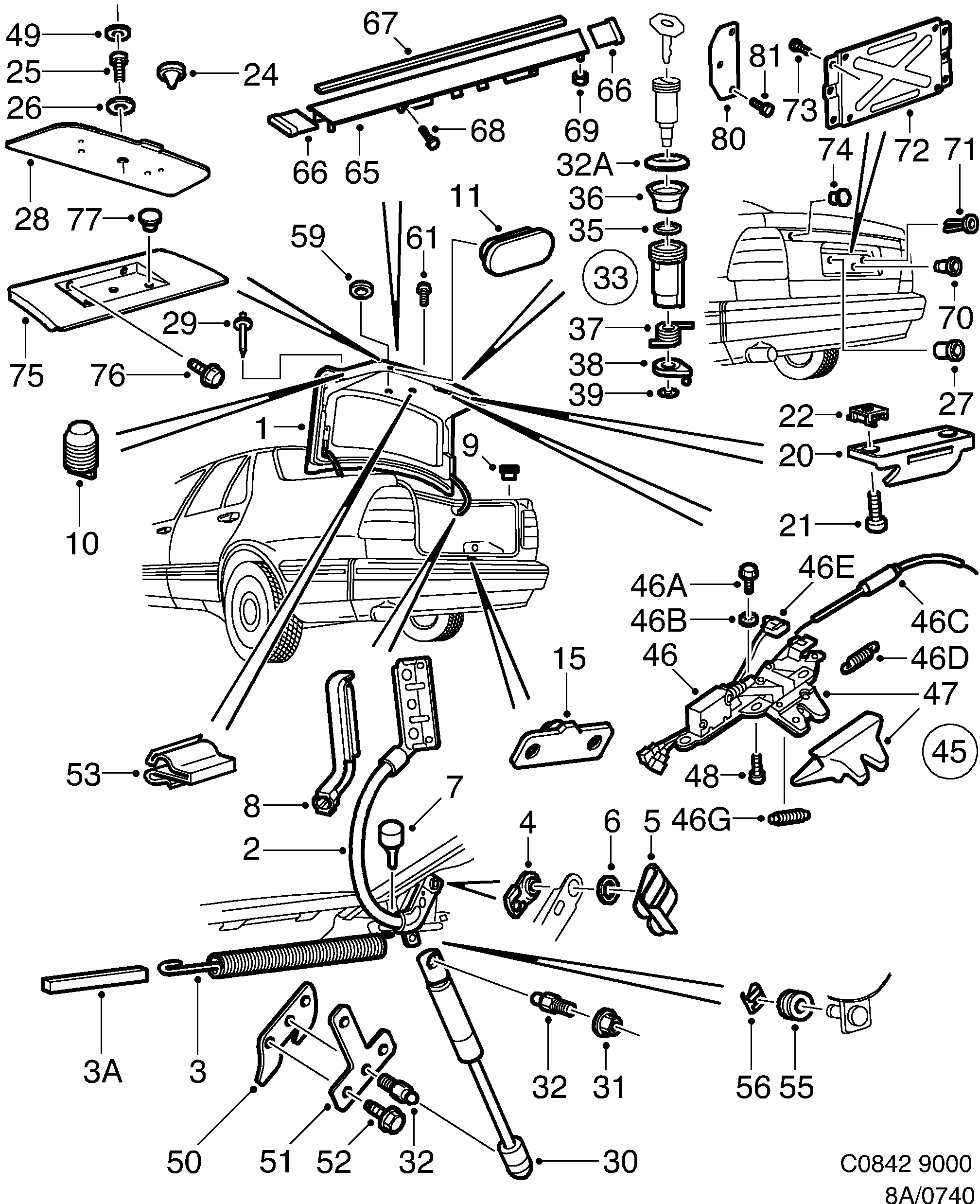

Group 8a Car body, external, section 740
| Pos | Article | Part No. |
|---|---|---|
| 1 | Trunk lid | 4006094 |
| 1 | Trunk lid | 4100582 |
| 2 | Hinge | 6963995 |
| 2 | Hinge | 6963953 |
| 3 | Spring | 6961866 |
| 3A | Absorber | 4305330 |
| 4 | Bushing | 9225475 |
| 5 | Locking | 8257750 |
| 6 | Washer | 6973317 |
| 7 | Buffer | 6945497 |
| 8 | Cover | 6962534 |
| 8 | Cover | 6962526 |
| 9 | Wear protection | 12770126 (replaces 6974000) |
| 10 | Buffer | 6961874 |
| 10 | Rubber buffer | 12786272 (replaces 4304234) |
| 11 | Plug | 92152133 (replaces 7398886) |
| 15 | Striker | 6991533 |
| 20 | Handle | 9574302 |
| 21 | Screw | 8426199 |
| 21 | Screw | 7970262 |
| 22 | Nut | 7974231 (replaces 9774456) |
| 24 | Plastic plug | 7399447 |
| 25 | Screw | 7977010 |
| 26 | Washer kit | 6962567 |
| 27 | Nut | 7553308 |
| 28 | Cover | 4005609 |
| 28 | Cover | 4005617 |
| 29 | Rivet | 9279621 |
| 30 | Spring | 6976369 |
| 31 | Nut | 11900429 (replaces 7967953) |
| 32 | Ballpin | 4493912 (replaces 6951974) |
| 32A | Sealing collar | 4094462 |
| 32A | Sealing collar | 4094405 |
| 35 | Seal | 9262163 |
| 36 | Seal | 4010682 |
| 37 | Spring | 4010617 |
| 38 | Companion flange | 6992929 |
| 39 | Retaining ring | 8123473 (replaces 7936016) |
| 45 | Lock | 4010666 |
| 45 | Lock | 4251922 |
| 45 | Lock | 4251799 |
| 45 | Lock | 4304564 |
| 46 | Electrical motor | 4010872 |
| 46 | Electrical motor | 4251914 |
| 46 | Electrical motor | 4251658 |
| 46 | Electrical motor | 4736880 (replaces 4304242) |
| 46A | Screw | 8059214 (replaces 8059206) |
| 46B | Spring nut | 4251930 |
| 46C | Cable | 4010674 |
| 46C | Cable | 4293213 |
| 46D | Spring | 4010963 |
| 46E | Switch | 4013140 |
| 46E | Switch | 4251906 |
| 46E | Switch | 4251666 |
| 46G | Spring | 4088209 |
| 47 | Protection | 4010260 |
| 48 | Screw | 11900354 (replaces 7978109) |
| 49 | Absorber | 6975403 |
| 50 | Attaching plate | 6945711 |
| 51 | Washer | 6945760 |
| 52 | Screw | 7975451 |
| 53 | Clamp | 7108491 |
| 55 | Bushing | 4006557 |
| 56 | Clip | 12780365 (replaces 8252553) |
| 59 | Washer | 4005153 |
| 61 | Screw | 7977283 (replaces 7973423) |
| 65 | Shield plate | 4008454 |
| 66 | End piece | 4009577 |
| 66 | End piece | 4009569 |
| 67 | Sealing strip | 9252057 |
| 69 | Nut | 11900428 (replaces 7971658) |
| 70 | Plastic plug | 8279044 |
| 71 | Plug | 9221987 |
| 72 | Bracket | 9272139 |
| 73 | Screw | 8059578 |
| 74 | Protecting plug | 4100905 |
| 75 | Decor panel | 8669319 |
| 75 | Decor panel | 4380283 |
| 77 | Plug | 4333563 (replaces 9267881) |
| 80 | Bracket | 8669913 |
| Mounting kit | 12804284 (replaces 9240086) |
