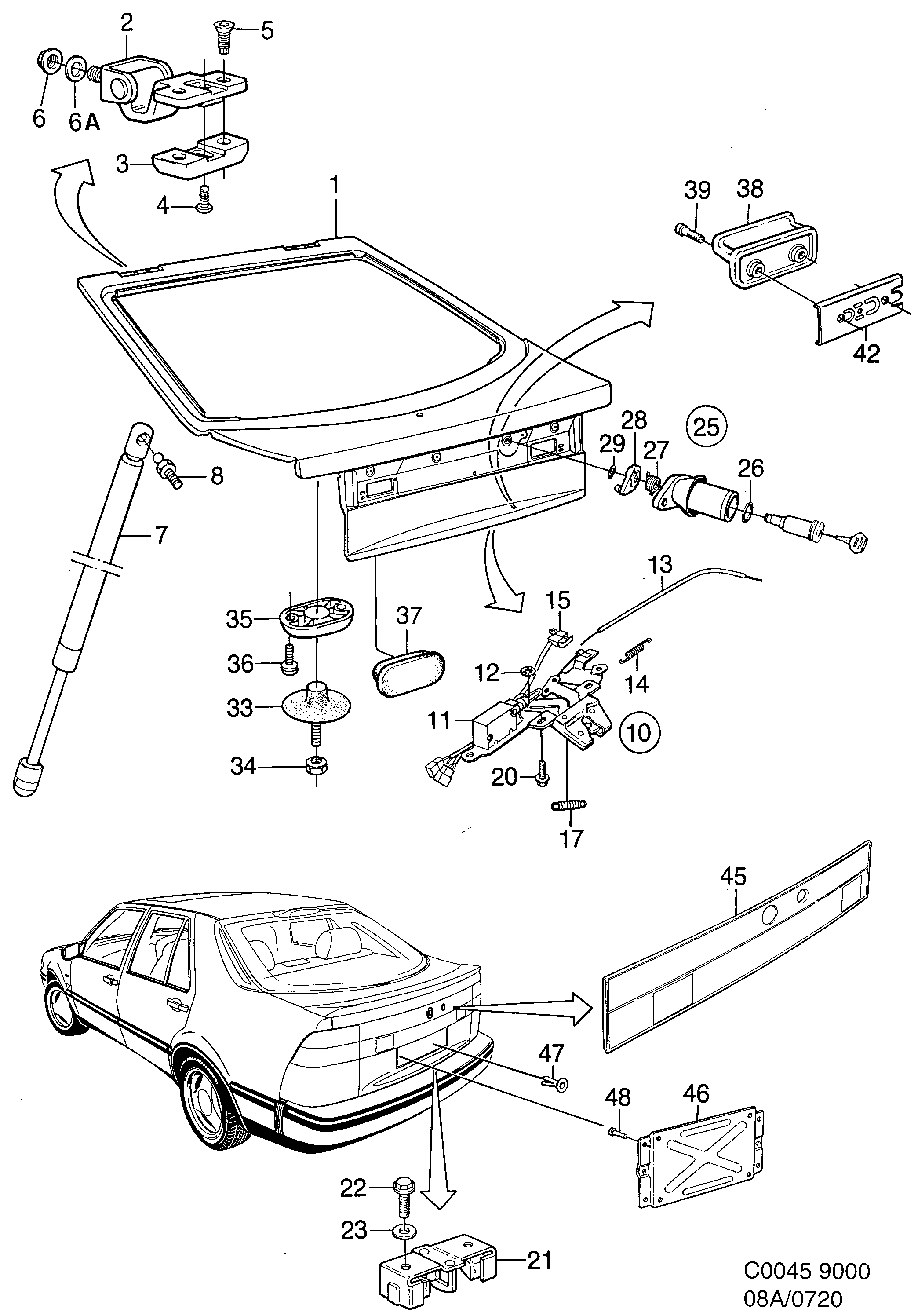

Group 8a Car body, external, section 720
| Pos | Article | Part No. |
|---|---|---|
| 1 | Trunk lid | 30541916 (replaces 4293049) |
| 1 | Trunk lid | 4853776 |
| 2 | Hinge | 6944490 |
| 2 | Hinge | 6944482 |
| 3 | Plate | 6944565 |
| 4 | Screw | 8059545 |
| 5 | Screw | 8262958 (replaces 9088592) |
| 5 | Screw | 8262958 |
| 6 | Nut | 11900429 (replaces 7967953) |
| 6A | Washer | 4101705 |
| 7 | Spring | 32000136 (replaces 4006060) |
| 7 | Gas spring | 4306411 |
| 7 | Spring | 32000137 (replaces 4006078) |
| 8 | Ballpin | 4493912 |
| 10 | Lock | 4304846 |
| 10 | Lock | 4733366 |
| 11 | Electrical motor | 4736880 (replaces 4304242) |
| 11 | Electrical motor | 4736880 (replaces 4556890) |
| 11 | Electrical motor | 4736880 |
| 12 | Spring nut | 4251930 |
| 13 | Cable | 9085861 |
| 14 | Spring | 4010963 |
| 15 | Switch | 4251674 |
| 17 | Spring | 4088209 |
| 20 | Screw | 11900354 (replaces 7978109) |
| 21 | Striker | 6991533 (replaces 9252206) |
| 22 | Screw | 7969223 |
| 23 | Washer | 4685343 |
| 26 | Seal | 9262163 |
| 27 | Spring | 4010617 |
| 28 | Companion flange | 9086141 |
| 29 | Retaining ring | 8123473 (replaces 7936016) |
| 33 | Support | 4100871 |
| 34 | Nut | 4087045 |
| 35 | Support | 4099099 |
| 35 | Support | 4559209 |
| 36 | Screw | 7978422 |
| 37 | Plug | 92152133 (replaces 7398886) |
| 38 | Handle | 5332788 (replaces 9670548) |
| 39 | Screw | 7970262 |
| 42 | Bracket | 4270948 |
| 46 | Bracket | 9087297 |
| 47 | Plug | 9221987 |
| 48 | Screw | 8059578 |
| Mounting kit | 4959565 |
