Saab 9000 1990-1993 Trunk door, hinges lock

Group 8a Car body, external, section 710

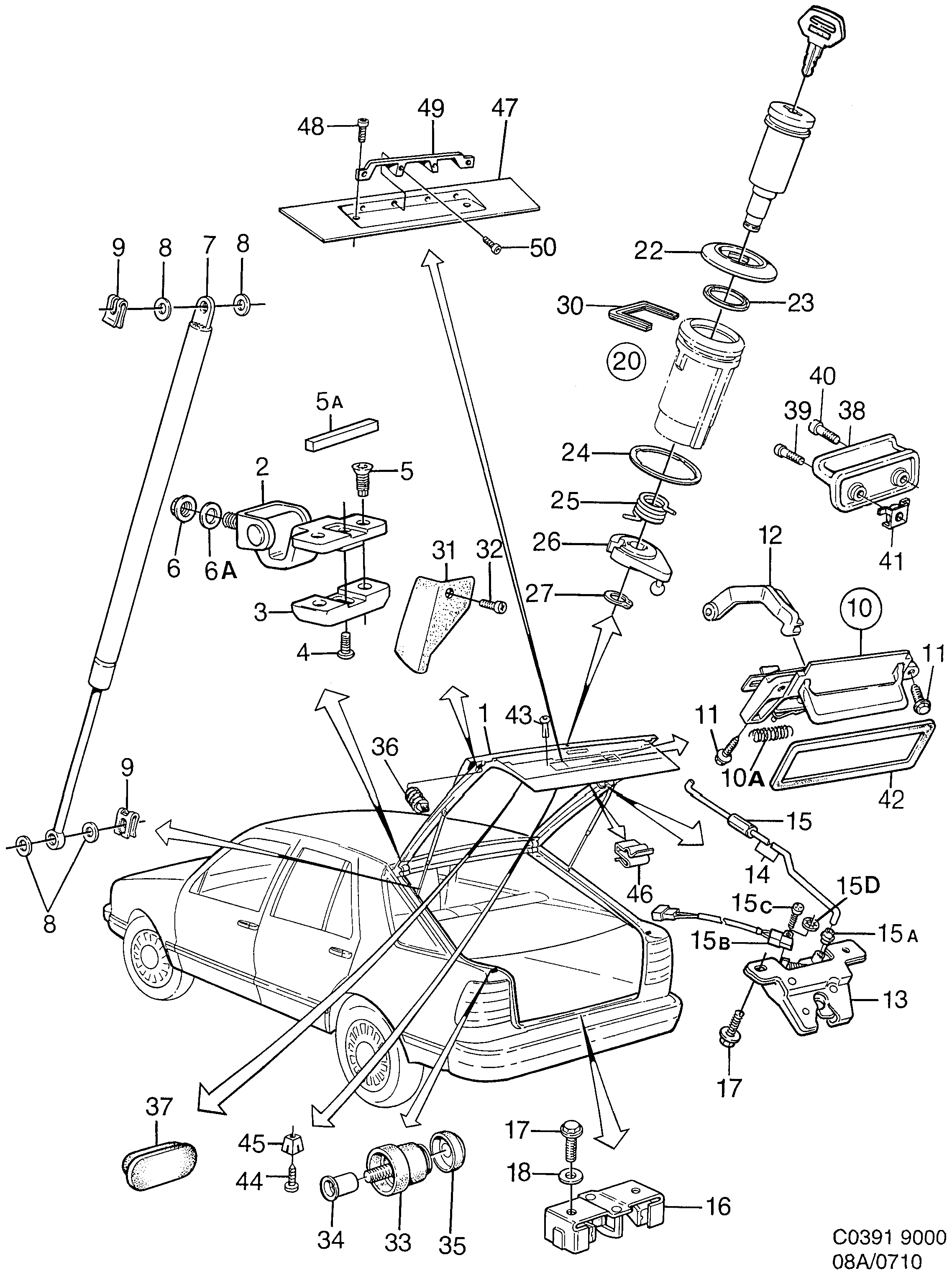

Saab 9000 Trunk door, hinges lock diagram

Pos	Article	Part No.
1	Trunk lid	6944573
2	Hinge	6944490
2	Hinge	6944482
3	Plate	6944565
4	Screw	8059545
5	Screw	6973119
5A	Spacer	12787842 (replaces 6992028)
6	Nut	4087045 (replaces 7399736)
6	Nut	4087045
6	Nut	11900429 (replaces 7967953)
6A	Washer	4101705
7	Gas spring	6956288
7	Gas spring	6956270
8	Washer	8252363
9	Clip	12780365 (replaces 8252553)
10	Handle	4091765
10A	Tension spring	6991855
11	Screw	7977283 (replaces 7973423)
12	Control link	9260068
13	Lock	4102034 (replaces 4091682)
13	Lock	4102034
14	Control rod	4091690
15	Adjustment screw	4091724
15A	Clip	9256306
15B	Switch	4091955
15B	Switch	4102059
15C	Screw	8059214 (replaces 8059206)
15D	Spring nut	4251930
16	Striker	6991533 (replaces 9252206)
17	Screw	7969223
18	Washer	7981954
22	Cover	9261579
23	Seal	9262163
24	Spacer	9261595
24	Seal	4092409
25	Spring	9261561
26	Companion flange	9261538
27	Retaining ring	7935992
30	Clip	9262486
31	Protection	9264433
31	Protection	4101119
31	Protection	9264425
31	Protection	4101127
32	Screw	8059578
33	Support	9268947
34	Nut	7399710
35	Protecting cap	9268921
36	Buffer	9275744
36	Rubber buffer	12786272 (replaces 4304234)
37	Plug	92152133 (replaces 7398886)
38	Handle	5332788 (replaces 9670548)
39	Screw	8426199
39	Screw	7970262
40	Screw	7970023
41	Cage nut	7974231
42	Seal	6956189
43	Plug	9221987
44	Screw	92150118 (replaces 7970536)
45	Nut	7975261
46	Clamp	4011698
47	Decor panel	105219901 (replaces 8659328)
47	Decor panel	8659310
49	Protection	8662058
49	Protection	8669244
50	Screw	11900379 (replaces 7978380)
