Saab 9000 1985-1989 Trunk lid, hinges, lock

Group 8a Car body, external, section 670

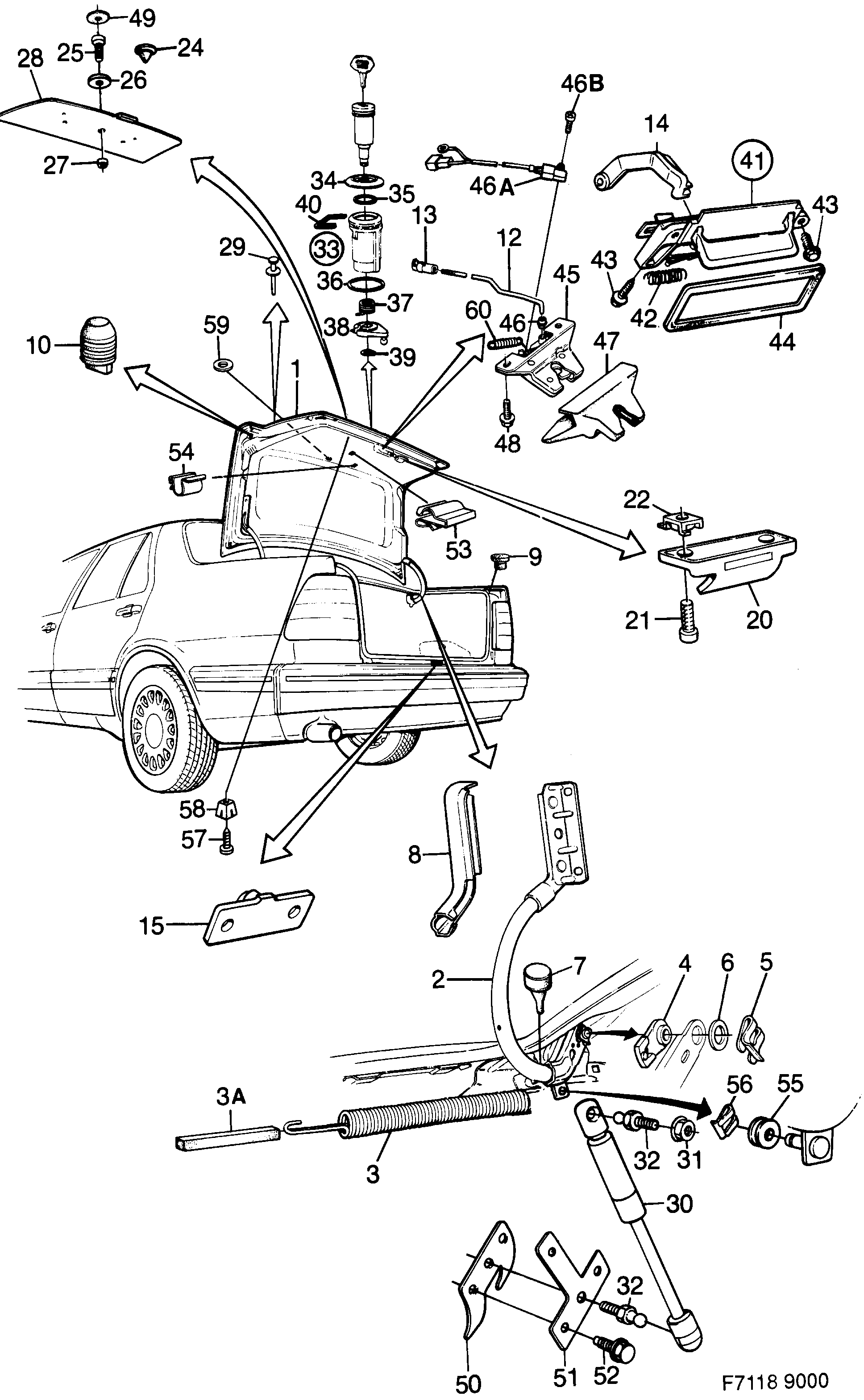

Saab 9000 Trunk lid, hinges, lock diagram

Pos	Article	Part No.
1	Trunk lid	4006086 (replaces 6963987)
2	Hinge	6963995
2	Hinge	6963953
3	Spring	6961866
3A	Absorber	4305330
4	Bushing	9225475
5	Locking	8257750
6	Washer	6973317
7	Buffer	6945497
8	Cover	6962534
8	Cover	6962526
9	Wear protection	12770126 (replaces 6974000)
10	Buffer	6961874
12	Control rod	6963029
13	Ball joint	9256488
14	Control link	6956791
15	Striker	6991533
20	Handle	9574302
21	Screw	8426199
22	Nut	7974231 (replaces 9774456)
24	Plastic plug	7399447
25	Screw	7977010
26	Washer kit	6962567
27	Nut	7399629
27	Nut	7553308
28	Cover	9279423
28	Cover	6955306
29	Rivet	9279621
30	Spring	6976369
31	Nut	11900429 (replaces 7967953)
32	Ballpin	4493912 (replaces 6951974)
34	Cover	9261579
35	Seal	9262163
36	Spacer	9261595
37	Spring	9261561
38	Companion flange	9261538
39	Retaining ring	7935992
40	Clip	9262486
41	Handle	8284861 (replaces 6960298)
42	Tension spring	6991855
43	Screw	7977283 (replaces 7973423)
44	Seal	6956189
45	Lock	9252198
45	Lock	6992184
46	Clip	9256306
46A	Switch	6993570
46B	Screw	8059214 (replaces 8059206)
47	Protection	6956957
47	Protection	4010260
48	Screw	7969223
49	Absorber	6975403
50	Attaching plate	6945711
51	Washer	6945760
52	Screw	7975451
53	Clamp	4011698
54	Clamp	7951783
55	Bushing	4006557
56	Clip	12780365 (replaces 8252553)
57	Screw	92150118 (replaces 7970536)
58	Nut	7975261
59	Washer	4005153
60	Spring	4088209
