Saab 9000 1994-1998 Door lock Rear door

Group 8a Car body, external, section 660

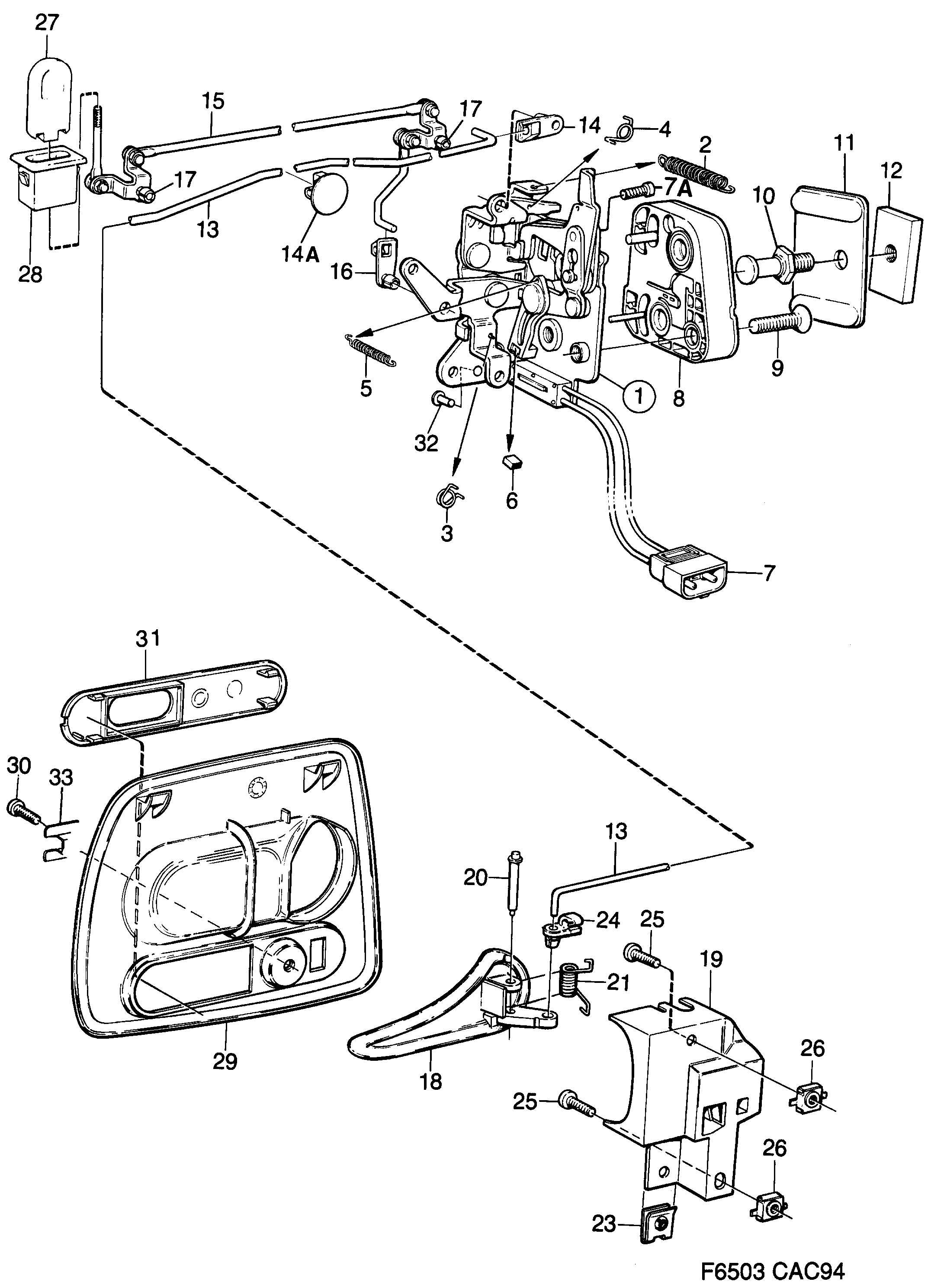

Saab 9000 Door lock Rear door diagram

Pos	Article	Part No.
1	Door lock	6943476
1	Door lock	6943468
2	Spring	9257080
3	Spring	9257171
3	Spring	9257163
4	Spring	9259433
4	Spring	9259425
5	Spring	9263401
6	Magnet	30525962 (replaces 9508011)
7	Switch	9505454
7A	Screw	8059214
8	Door lock	6948970
8	Door lock	6948962
9	Screw	4087763
10	Pin	6947824
11	Spacer	4251518
12	Plate	9085077
13	Rod	6956676
13	Rod	6956668
14	Clip	8453755
14A	Clip	4304663
15	Latch	4089652
15	Latch	4089645
17	Clip	9266644
18	Handle	9754763
18	Handle	9754755
19	Bracket	9769134
19	Bracket	9769126
20	Rivet	9776139
21	Return spring	9776188
21	Return spring	9776105
23	Nut	9776121
24	Clamp	9782566
25	Screw	8059396
26	Cage nut	7974231
27	Lock button	4037735
28	Bushing	4269957
29	Attaching plate	9578824
29	Attaching plate	9578816
30	Screw	7965684
30	Screw	7982333
31	Cover	9767559
32	Rivet	30525968 (replaces 9508094)
33	Washer	9578386
