Saab 9000 1990-1993 Door lock Front door

Group 8a Car body, external, section 650

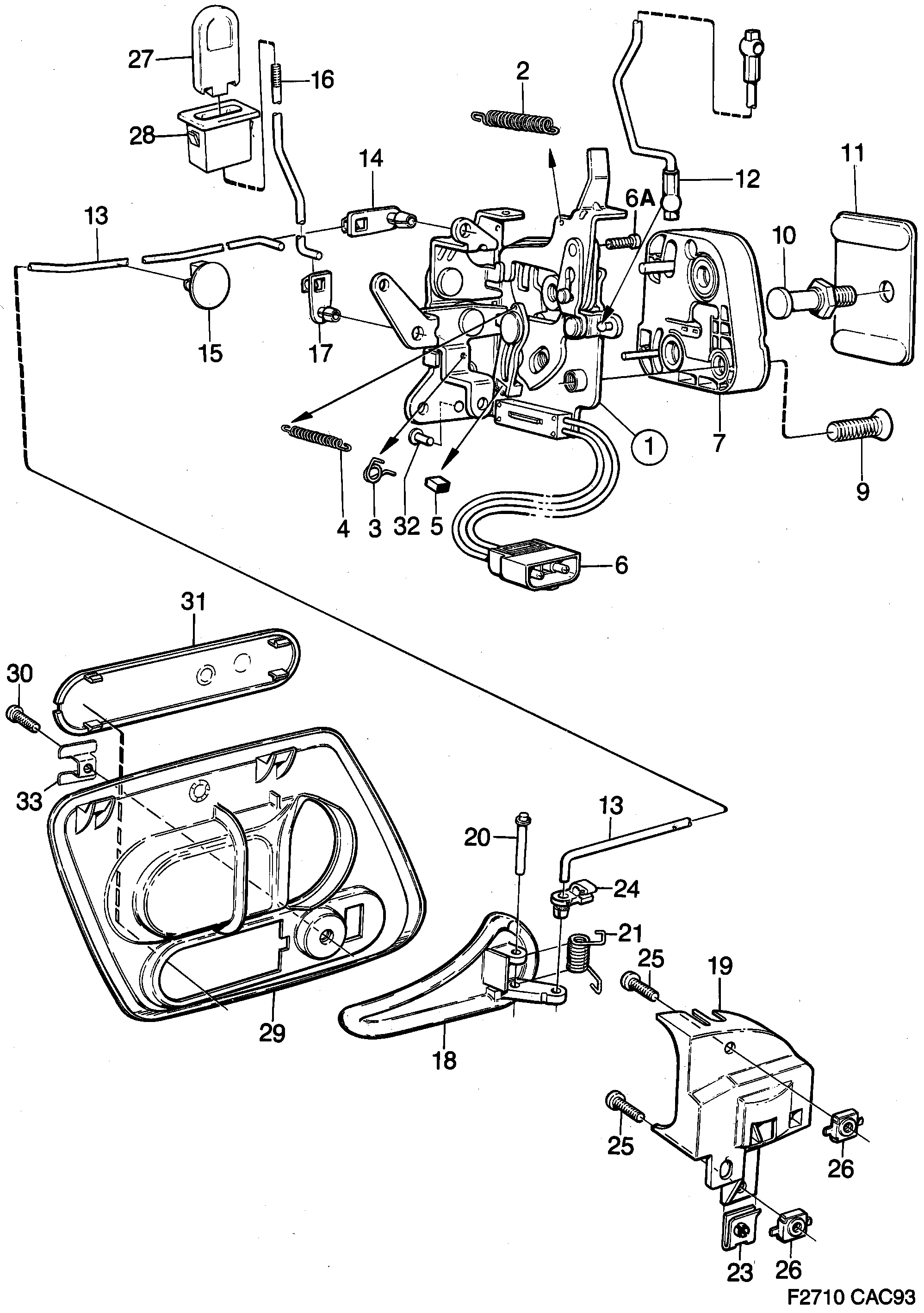

Saab 9000 Door lock Front door diagram

Pos	Article	Part No.
1	Door lock	4093050 (replaces 9253519)
1	Door lock	4093050
1	Door lock	4093308 (replaces 9253527)
1	Door lock	4093308
1	Door lock	4093316 (replaces 9253535)
1	Door lock	4093316
1	Door lock	4093043 (replaces 9253501)
1	Door lock	4093043
2	Spring	9257080
3	Spring	9257171
3	Spring	9257163
4	Spring	9263401
5	Magnet	30525962 (replaces 9508011)
6	Switch	9505454
6A	Screw	8059214
7	Door lock	6948970
7	Door lock	6948962
9	Screw	7982184
10	Pin	6947824
11	Spacer	4251518 (replaces 6991012)
11	Spacer	4251518
12	Rod	9279340
12	Rod	9279332
13	Rod	9262031
13	Rod	9262023
14	Clip	8453755
15	Clip	4304663 (replaces 9263583)
15	Clip	4304663
16	Rod	4089975
16	Rod	4089967
18	Handle	9754763
18	Handle	9754755
19	Bracket	9769118
19	Bracket	9769100
20	Rivet	9776139
21	Return spring	9776188
21	Return spring	9776105
23	Nut	9776121
24	Clamp	9782566
25	Screw	8059396
26	Cage nut	7974231
27	Lock button	4037735
28	Bushing	4269957 (replaces 9762048)
28	Bushing	4269957
29	Attaching plate	9578808
29	Attaching plate	9578790
30	Screw	7965684
31	Cover washer	9758186
32	Rivet	30525968 (replaces 9508094)
33	Washer	9578386
