Saab 9000 1985-1989 Trunk door, hinges Lock

Group 8a Car body, external, section 640

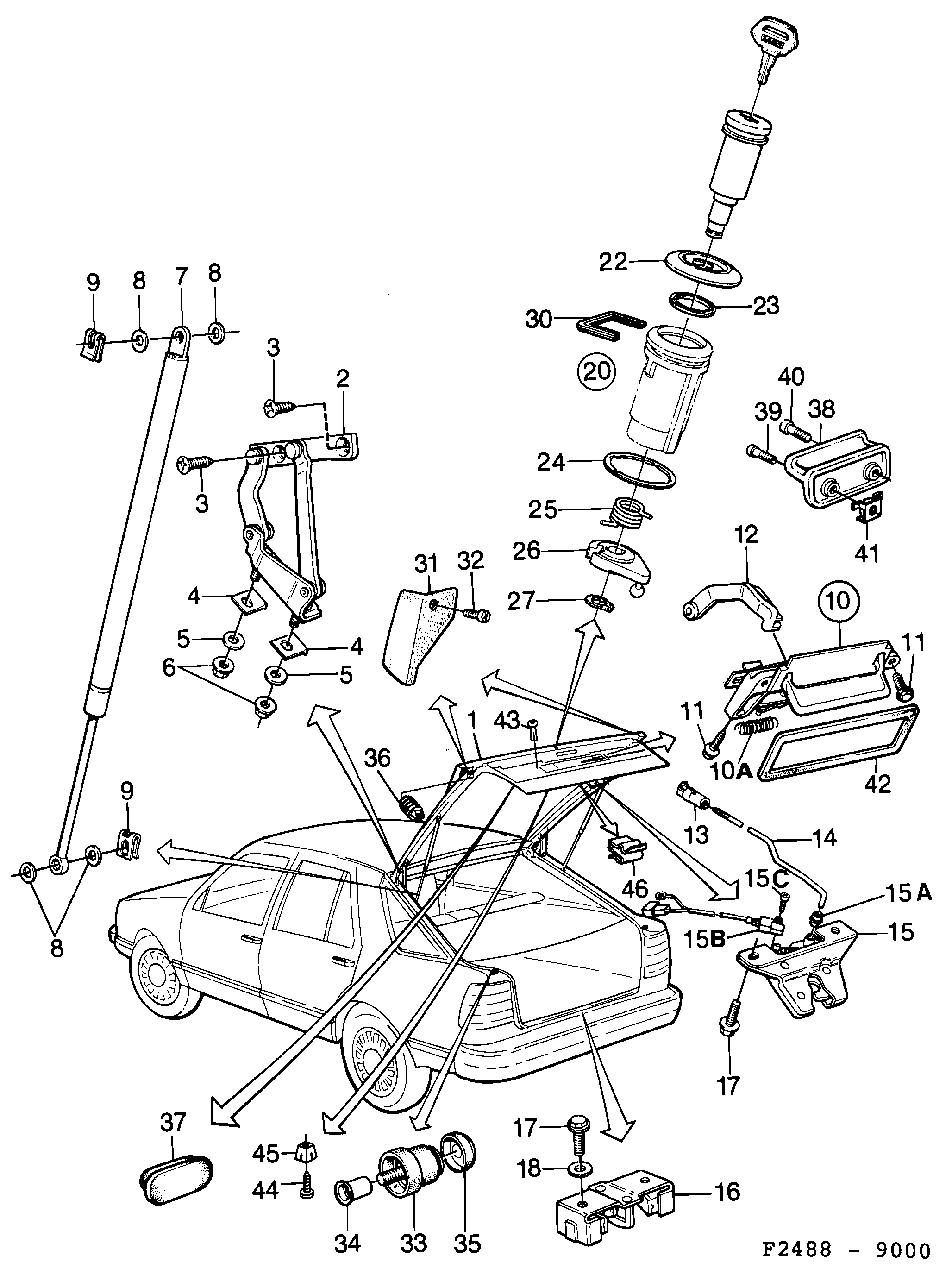

Saab 9000 Trunk door, hinges Lock diagram

Pos	Article	Part No.
1	Trunk lid	9252800
1	Trunk lid	6958284
2	Hinge	9255530
2	Hinge	9255522
3	Screw	8056160
3	Screw	7977713
3	Screw	7399892
4	Seal	9263393
4	Seal	9263385
5	Washer	7311772
6	Nut	11900429 (replaces 7967953)
7	Spring	9253964
7	Gas spring	6956288
7	Spring	6956262
7	Gas spring	6956270
8	Washer	8252363
9	Clip	12780365 (replaces 8252553)
10	Handle	8284861 (replaces 9259417)
10	Handle	8284861 (replaces 6960298)
10	Handle	6960306
10A	Tension spring	6991855
11	Screw	7977283 (replaces 7973423)
12	Control link	9260068
12	Control link	9252214
13	Ball joint	9256488
14	Control link	6954325
15	Lock	9252198
15	Lock	6992184
15A	Clip	9256306
15B	Switch	6993570
15C	Screw	8059214 (replaces 8059206)
16	Striker	6991533 (replaces 9252206)
17	Screw	7969223
18	Washer	92153033 (replaces 7916497)
18	Washer	7981954
22	Cover	9261579
23	Seal	9262163
24	Spacer	9261595
25	Spring	9261561
26	Companion flange	9261538
26	Companion flange	9261546
27	Retaining ring	7935992
30	Clip	9262486
31	Protection	9264433
31	Protection	9264425
32	Screw	8059578
33	Support	9268947
34	Nut	9268889
34	Nut	7399710
35	Protecting cap	9268921
36	Buffer	9275744
37	Plug	92152133 (replaces 7398886)
38	Handle	5332788 (replaces 9767682)
38	Handle	5332788 (replaces 9670548)
39	Screw	8426199
40	Screw	7970023
41	Nut	7974231 (replaces 9774456)
41	Cage nut	7974231
42	Seal	6956189
43	Plug	9221987
44	Screw	92150118 (replaces 7970536)
45	Nut	7975261
46	Clamp	4011698
