Saab 9000 1985-1989 Door lock Rear door

Group 8a Car body, external, section 610

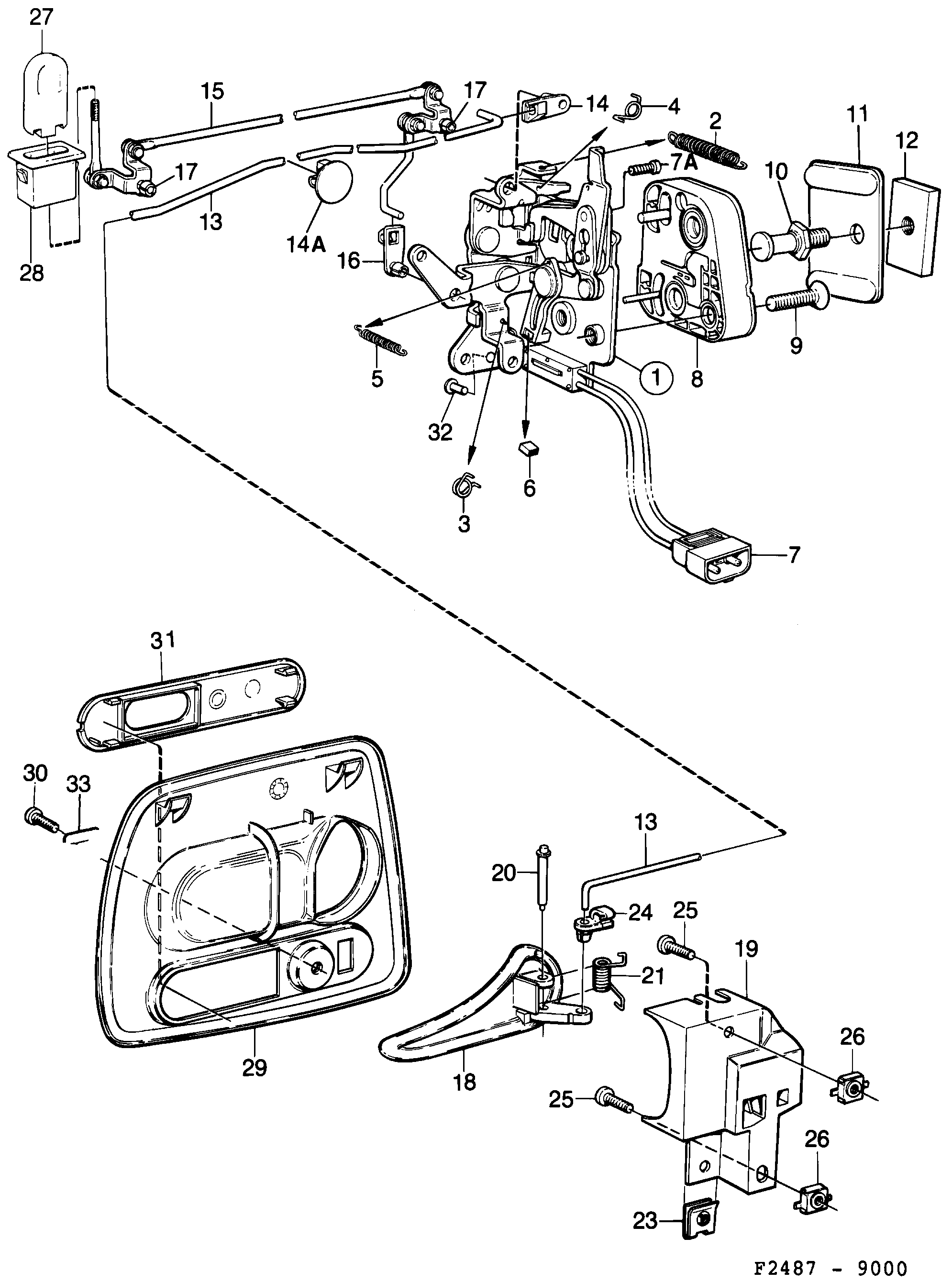

Saab 9000 Door lock Rear door diagram

Pos	Article	Part No.
1	Door lock	9253410
1	Door lock	9275306
1	Door lock	6956429
1	Door lock	9253402
1	Door lock	9275298
1	Door lock	6956411
2	Spring	9257080
3	Spring	9257171
3	Spring	9257163
4	Spring	9259433
4	Spring	9259425
5	Spring	9263401
6	Magnet	30525962 (replaces 9508011)
7	Switch	9505454
7A	Screw	8059214
8	Door lock	6948970 (replaces 9253451)
8	Door lock	6948970
8	Door lock	6948962 (replaces 9253444)
8	Door lock	6948962
9	Screw	7982184 (replaces 8056228)
9	Screw	7982184
10	Pin	6947824 (replaces 9258252)
10	Pin	6947824 (replaces 6991004)
11	Spacer	4251518 (replaces 9268483)
11	Spacer	4251518 (replaces 6991012)
12	Plate	9085077 (replaces 9260183)
13	Rod	6954341
13	Rod	6956676
13	Rod	9255241
13	Rod	6954333
13	Rod	6956668
14	Clip	8453755
14A	Clip	4304663 (replaces 9263583)
15	Latch	4089652 (replaces 9263617)
15	Latch	4089652 (replaces 6948640)
15	Latch	9263609
15	Latch	6948632
17	Clip	9266644
18	Handle	9754763
18	Handle	9754755
19	Bracket	9769134
19	Bracket	9769126
20	Rivet	9776139
21	Return spring	9776188
21	Return spring	9776105
23	Nut	9776121
24	Clamp	9782566
25	Screw	8059396
26	Cage nut	7974231
27	Lock button	9762030
27	Lock button	4037735
28	Bushing	4269957 (replaces 9762048)
29	Attaching plate	9578824
29	Attaching plate	9578816
30	Screw	7972888
30	Screw	7965684 (replaces 7972896)
30	Screw	7965684
31	Cover	9767559
32	Rivet	30525968 (replaces 9508094)
33	Washer	9578386
