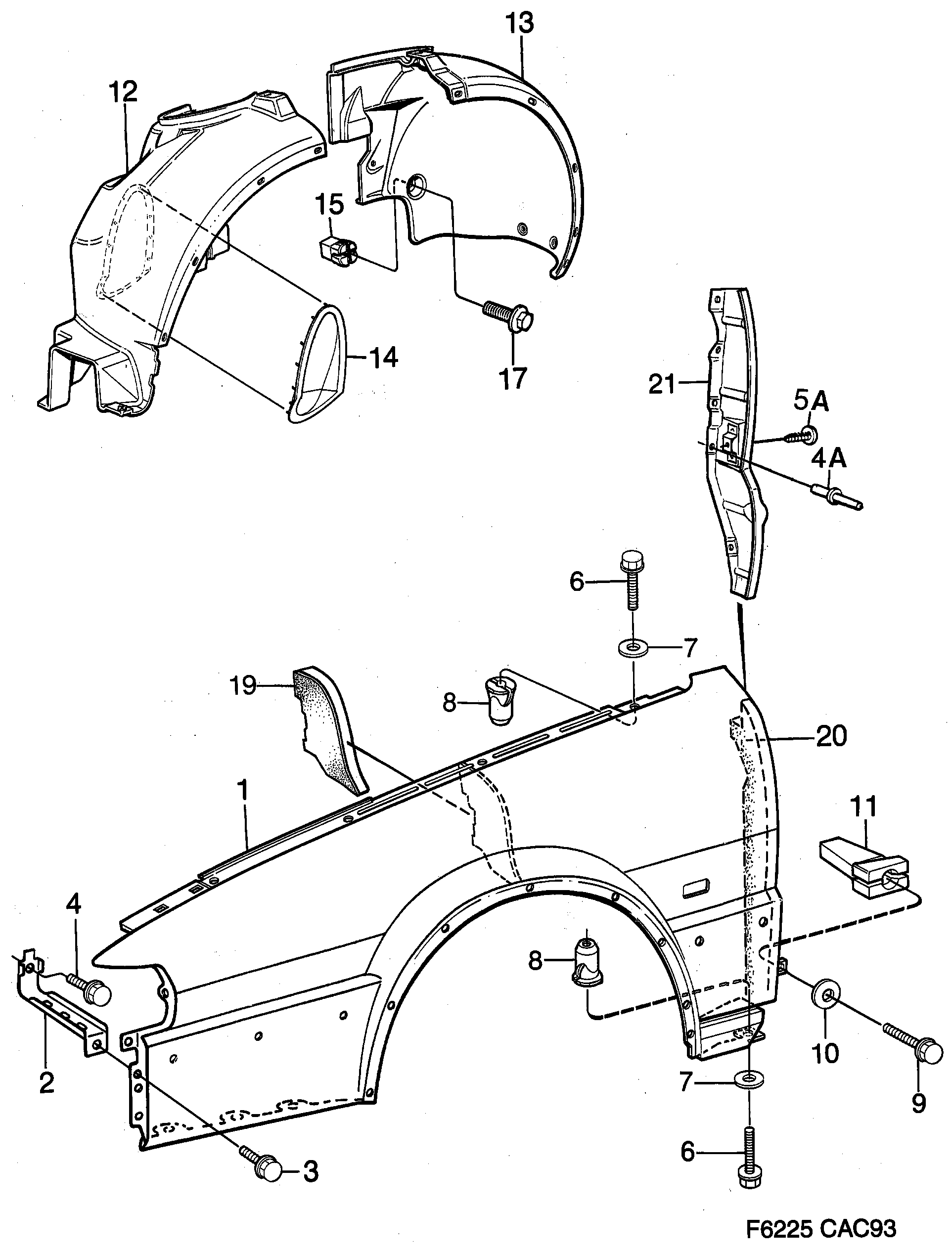

Group 8a Car body, external, section 560
| Pos | Article | Part No. |
|---|---|---|
| 1 | Front fender | 32000142 (replaces 4293015) |
| 1 | Front fender | 32000141 (replaces 4293007) |
| 2 | Bracket | 4303962 |
| 3 | Screw | 11900353 (replaces 7978091) |
| 4 | Screw | 11900354 (replaces 7978109) |
| 4A | Rivet | 92153060 (replaces 92150179) |
| 5A | Screw | 7973050 |
| 6 | Screw | 7974694 |
| 7 | Washer | 7398829 |
| 8 | Cage nut | 30550323 (replaces 9268913) |
| 9 | Screw | 7923014 |
| 11 | Clip | 9252958 |
| 12 | Wheel housing | 9087032 |
| 12 | Wheel housing | 9087024 |
| 13 | Wheel housing | 9087016 |
| 13 | Wheel housing | 9087008 |
| 14 | Cover | 9262601 |
| 15 | Press nut | 7982655 |
| 17 | Screw | 92153216 (replaces 7982325) |
| 19 | Screen | 30541917 (replaces 4293346) |
| 20 | Screen | 4296208 (replaces 6957708) |
| 21 | End plate | 4296208 (replaces 6973333) |
| 21 | End plate | 4296208 (replaces 6973325) |
| 21 | End plate | 4296208 (replaces 4295150) |
| 21 | End plate | 4296208 (replaces 4295168) |
| 23 | Nut | 9087040 |
