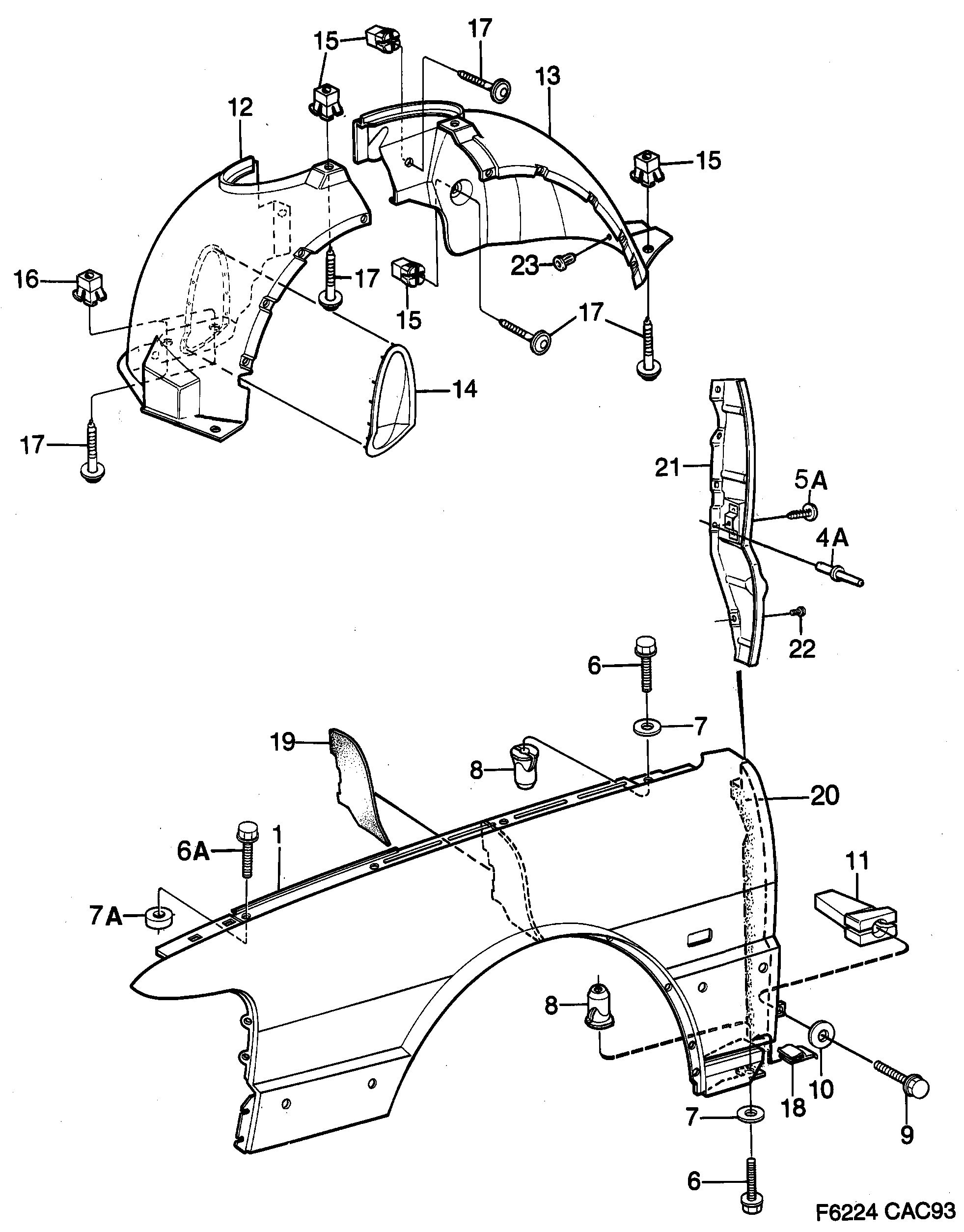

Group 8a Car body, external, section 530
| Pos | Article | Part No. |
|---|---|---|
| 1 | Front fender | 9273939 |
| 1 | Front fender | 9273921 |
| 4A | Rivet | 92153058 (replaces 7972490) |
| 5A | Screw | 7398555 |
| 5A | Screw | 7973050 |
| 6 | Screw | 7974694 (replaces 7399223) |
| 6 | Screw | 7974694 |
| 6A | Screw | 7975436 |
| 7 | Washer | 7398829 |
| 7A | Washer | 4100897 |
| 8 | Cage nut | 30550323 (replaces 9268913) |
| 9 | Screw | 7923014 (replaces 9252966) |
| 9 | Screw | 7923014 |
| 10 | Washer | 8029977 |
| 11 | Clip | 9252958 |
| 12 | Wheel housing | 6945315 |
| 12 | Wheel housing | 4294054 |
| 12 | Wheel housing | 6945307 |
| 12 | Wheel housing | 4294047 |
| 13 | Wheel housing | 6945356 |
| 13 | Wheel housing | 6945349 |
| 14 | Cover | 9262601 |
| 15 | Nut | 7975261 |
| 15 | Press nut | 7982655 |
| 16 | Nut | 7975279 |
| 17 | Screw | 92153149 (replaces 7977465) |
| 17 | Screw | 92153216 (replaces 7982325) |
| 18 | Protection | 6959811 |
| 18 | Protection | 6959803 |
| 19 | Screen | 9279860 |
| 20 | Screen | 4296208 (replaces 6957708) |
| 21 | End plate | 4296208 (replaces 6973333) |
| 21 | End plate | 4296208 (replaces 6973325) |
| 21 | End plate | 4296208 (replaces 4295150) |
| 21 | End plate | 4296208 (replaces 4295168) |
| 22 | Rivet | 92153060 (replaces 92150179) |
| 23 | Nut | 9288846 |
| 23 | Nut | 9087040 |
