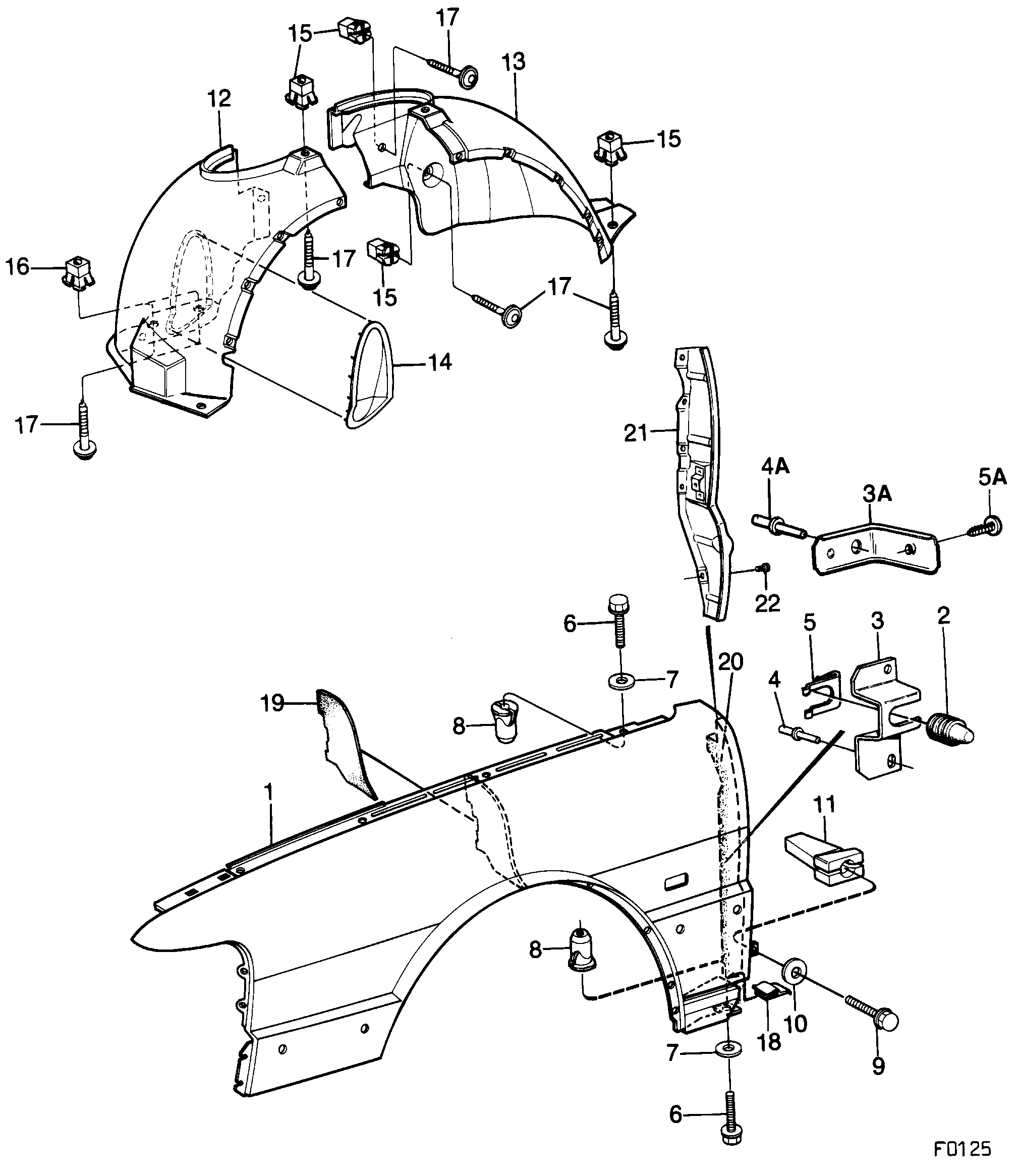

Group 8a Car body, external, section 490
| Pos | Article | Part No. |
|---|---|---|
| 1 | Front fender | 9252677 |
| 1 | Front fender | 9252669 |
| 1 | Front fender | 9273939 |
| 1 | Front fender | 9273921 |
| 2 | Buffer | 9268111 |
| 3 | Bracket | 9268129 |
| 3 | Bracket | 9268137 |
| 4 | Rivet | 92153058 (replaces 7972490) |
| 5 | Clip | 9268145 |
| 3A | Bracket | 9240078 |
| 5A | Screw | 7398555 |
| 6 | Screw | 7974694 |
| 6 | Screw | 7974694 (replaces 7399223) |
| 7 | Washer | 7398829 |
| 8 | Cage nut | 30550323 (replaces 9268913) |
| 9 | Screw | 7923014 (replaces 9252966) |
| 10 | Washer | 8029977 |
| 11 | Clip | 9252958 |
| 12 | Wheel housing | 9267832 |
| 12 | Wheel housing | 6955371 |
| 12 | Wheel housing | 6955413 |
| 12 | Wheel housing | 6958938 |
| 12 | Wheel housing | 6961577 |
| 12 | Wheel housing | 6945315 |
| 12 | Wheel housing | 9267824 |
| 12 | Wheel housing | 6955405 |
| 12 | Wheel housing | 6945380 |
| 13 | Wheel housing | 9248519 |
| 13 | Wheel housing | 9274697 |
| 13 | Wheel housing | 6945356 |
| 13 | Wheel housing | 9248501 |
| 13 | Wheel housing | 9274689 |
| 13 | Wheel housing | 6955447 |
| 14 | Cover | 9262601 |
| 15 | Nut | 7975261 |
| 16 | Nut | 7975279 |
| 17 | Screw | 92153149 (replaces 7977465) |
| 18 | Protection | 6955652 |
| 18 | Protection | 6959811 |
| 18 | Protection | 6955660 |
| 18 | Protection | 6959803 |
| 19 | Screen | 9276288 |
| 19 | Screen | 9276312 |
| 19 | Screen | 9279860 |
| 20 | Screen | 4296208 (replaces 6957708) |
| 21 | End plate | 4296208 (replaces 6973333) |
| 21 | End plate | 4296208 (replaces 6973325) |
| 22 | Rivet | 92153060 (replaces 92150179) |
