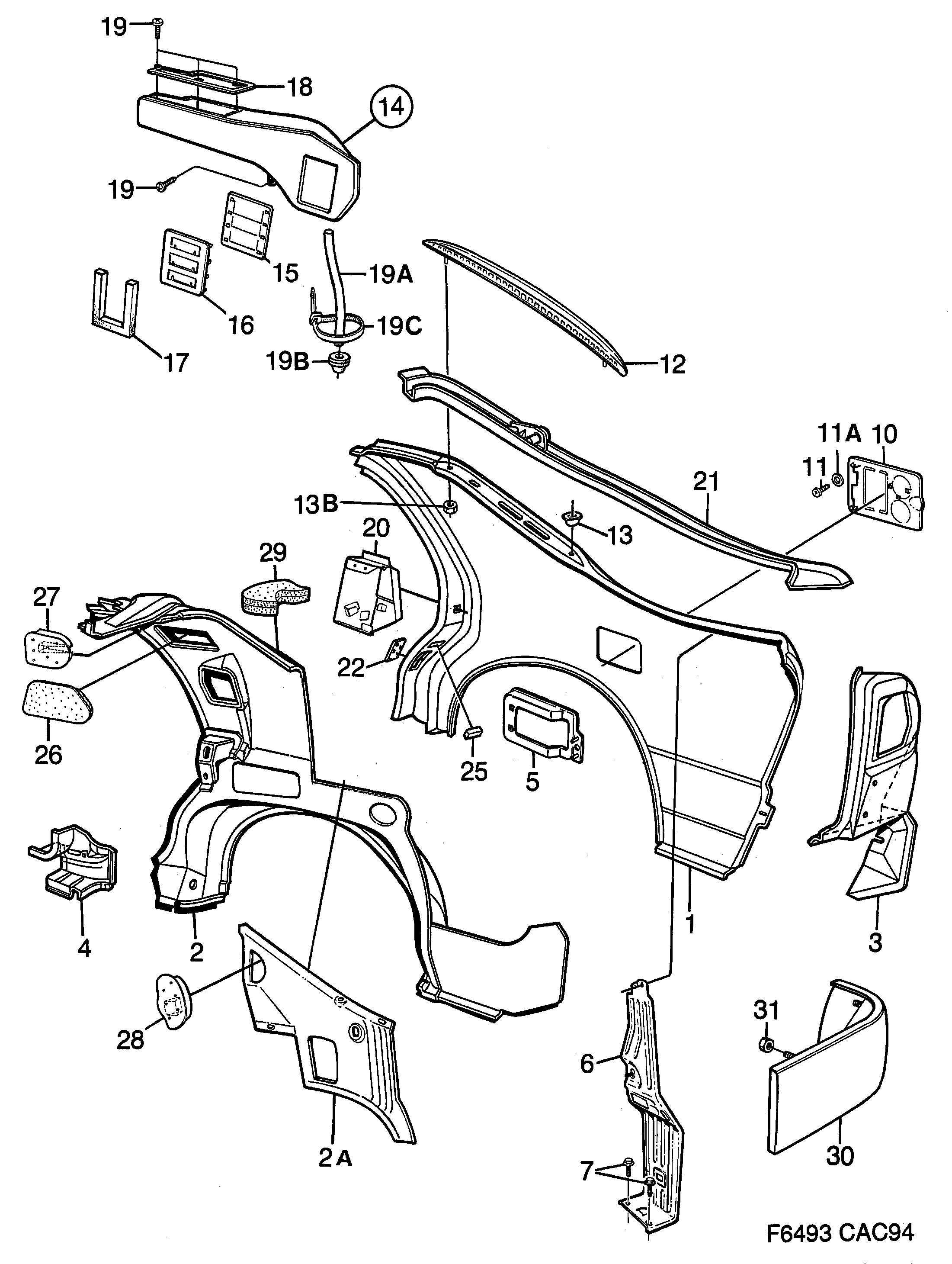

Group 8a Car body, external, section 360
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 30542775 (replaces 4293130) |
| 1 | Valance | 30542776 (replaces 4293122) |
| 2 | Valance | 4293114 |
| 2 | Valance | 4293106 |
| 2A | Support plate | 30545646 (replaces 4294716) |
| 2A | Support plate | 4294708 |
| 3 | Corner | 30542779 (replaces 4293171) |
| 3 | Corner | 30542780 (replaces 4293163) |
| 4 | Extension | 4293478 |
| 4 | Extension | 4293460 |
| 5 | Attaching plate | 30542783 (replaces 4293791) |
| 6 | Support plate | 4269759 |
| 7 | Screw | 11900353 (replaces 7978091) |
| 10 | Tank hatch | 4306171 |
| 11A | Washer | 8029951 |
| 12 | Exhaust grille | 4383667 |
| 12 | Exhaust grille | 4383659 |
| 13 | Clamp | 9630526 |
| 13B | Nut | 92153044 (replaces 7974298) |
| 14 | Box | 4072096 |
| 14 | Box | 4072088 |
| 14 | Box | 4635264 |
| 14 | Box | 4635256 |
| 15 | Valve | 4072062 |
| 16 | Bracket | 4072070 |
| 17 | Seal | 4072104 |
| 18 | Seal | 4072120 |
| 19 | Hexagon screw | 92152130 (replaces 7984305) |
| 19 | Screw | 4087938 |
| 19A | Draining hose | 4382990 |
| 19B | Grommet | 9254707 |
| 19C | Tie strap | 7971864 |
| 20 | Bracket | 4293197 |
| 20 | Bracket | 4293189 |
| 21 | Roof gutter | 4293155 |
| 21 | Roof gutter | 4293148 |
| 22 | Cover | 9267527 |
| 25 | Seal | 4101721 |
| 26 | Seal | 4101358 |
| 26 | Seal | 4101366 |
| 27 | Seal | 30541919 (replaces 4293676) |
| 27 | Seal | 30541918 (replaces 4293668) |
| 28 | Seal | 4101374 |
| 28 | Seal | 4101341 |
| 29 | Seal | 4101606 |
| 30 | Corner | 9088998 |
| 30 | Corner | 30561313 (replaces 9088980) |
| 30 | Corner | 4295119 |
| 30 | Corner | 30561313 (replaces 4295101) |
| 31 | Nut | 11900451 (replaces 7977929) |
