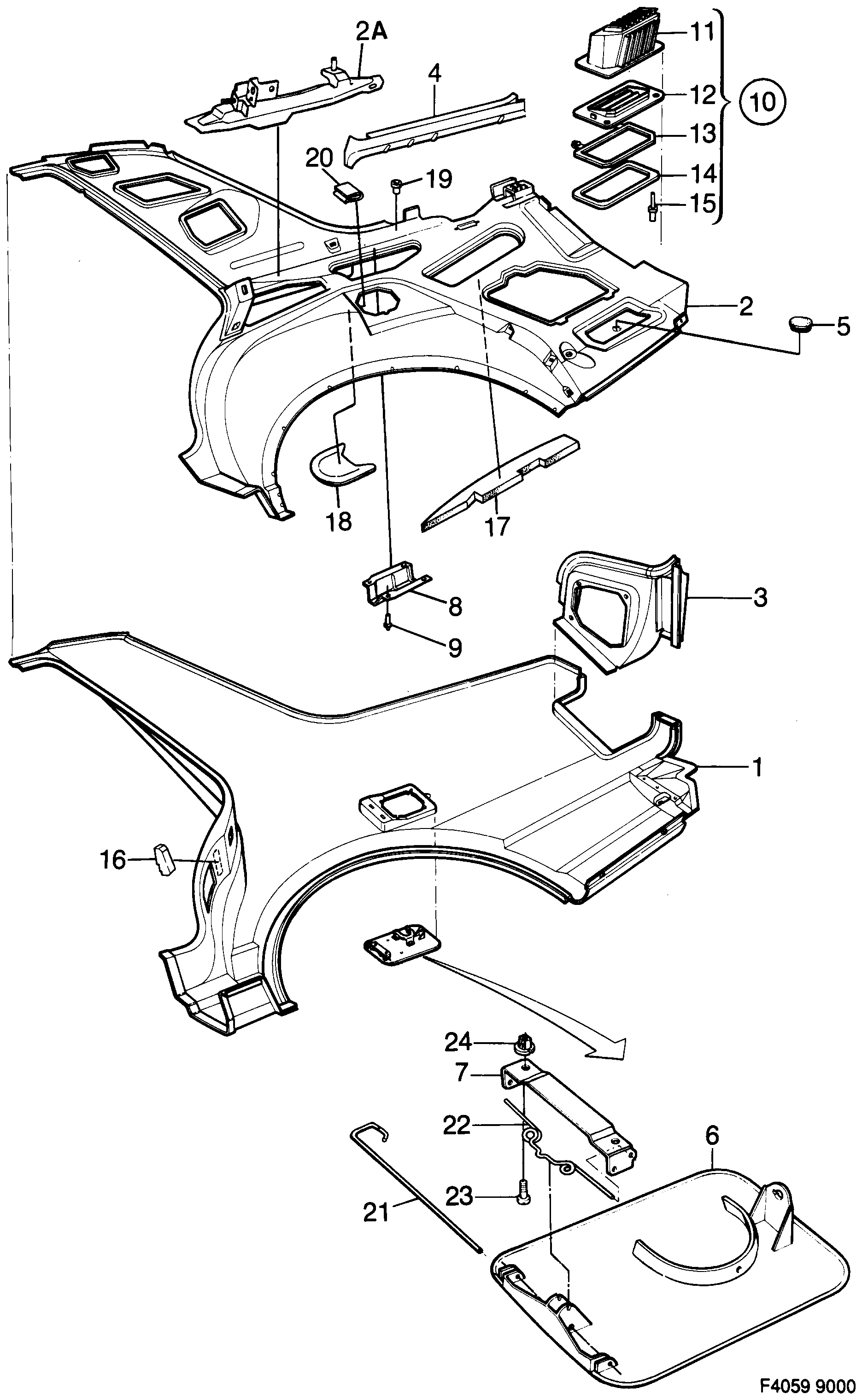

Group 8a Car body, external, section 340
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 6973036 |
| 1 | Valance | 6973044 |
| 2 | Valance | 6973051 |
| 2 | Valance | 6976237 |
| 2 | Valance | 6976229 |
| 2A | Reinforcement | 4007332 |
| 2A | Reinforcement | 4007324 |
| 3 | Corner | 6973002 |
| 3 | Corner | 6963961 |
| 4 | Roof gutter | 6973028 |
| 4 | Roof gutter | 6973010 |
| 5 | Plug | 9267899 |
| 6 | Cover | 4306510 (replaces 9277559) |
| 7 | Hinge | 9255910 (replaces 9277567) |
| 7 | Hinge | 9255910 |
| 8 | Spacer | 6941017 |
| 9 | Rivet | 6945505 |
| 10 | Air outlet | 9628843 |
| 11 | Cover | 9628850 |
| 12 | Grille | 9628868 |
| 13 | Flap | 9628876 |
| 14 | Seal | 9628884 |
| 15 | Rivet | 7975717 |
| 16 | Seal | 6973549 |
| 17 | Damper mat | 6975460 |
| 18 | Sealing collar | 8982472 |
| 19 | Rivet nut | 9130829 (replaces 7399454) |
| 20 | Protection | 6975510 |
| 21 | Shaft | 30521805 (replaces 9276403) |
| 22 | Spring | 9252511 |
| 22 | Spring | 4005948 |
| 23 | Screw | 7967730 |
| 24 | Clip | 4013165 (replaces 9236589) |
