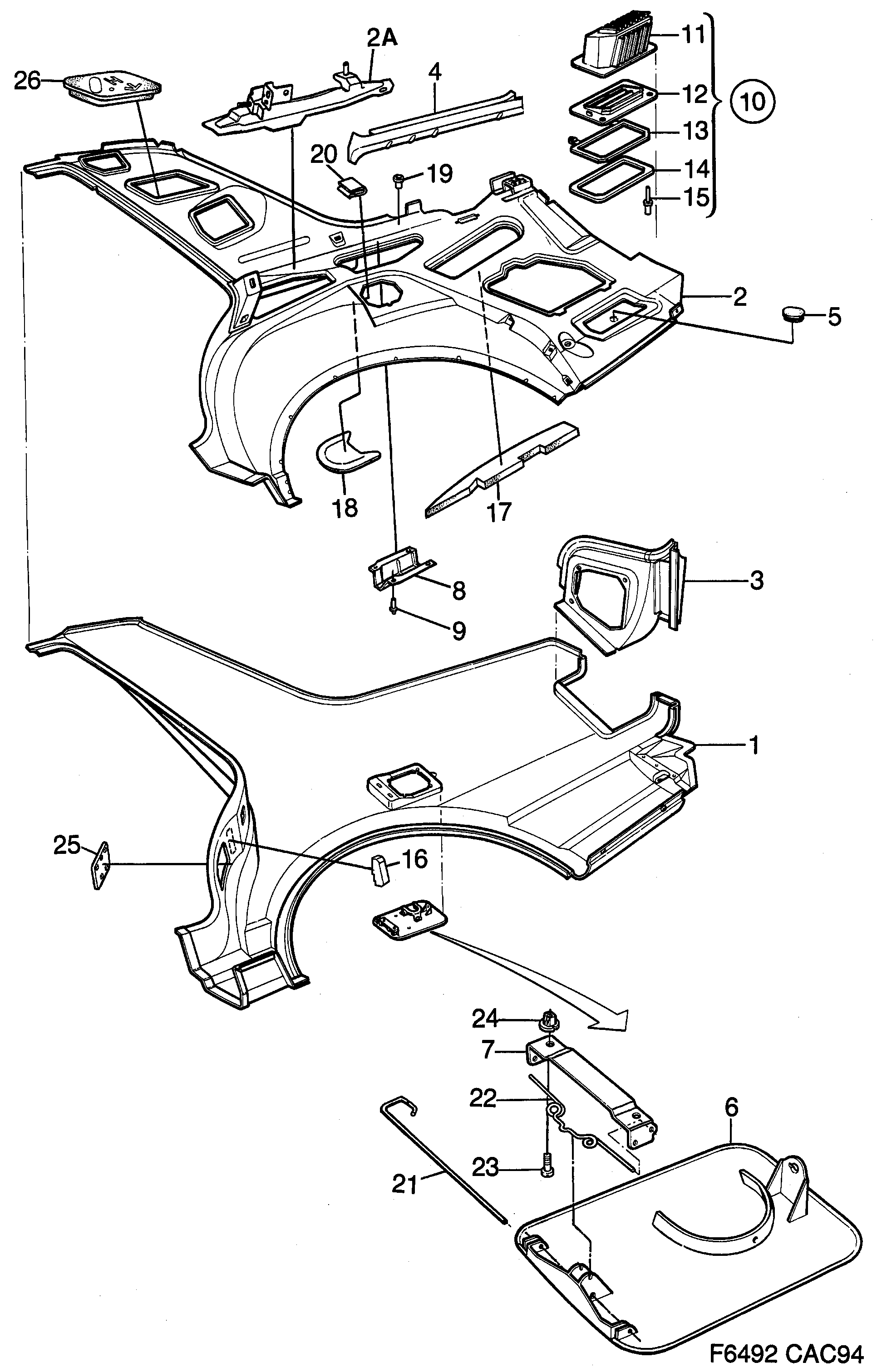

Group 8a Car body, external, section 330
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 4098570 |
| 1 | Valance | 4098562 |
| 1 | Valance | 4294658 |
| 1 | Valance | 4294641 |
| 2 | Valance | 4007233 |
| 2 | Valance | 4007241 |
| 2A | Reinforcement | 4294278 |
| 2A | Reinforcement | 4294260 |
| 3 | Corner | 6973002 |
| 3 | Corner | 6963961 |
| 4 | Roof gutter | 6973028 |
| 4 | Roof gutter | 6973010 |
| 5 | Plug | 9267899 |
| 6 | Cover | 4306510 |
| 7 | Hinge | 9255910 |
| 8 | Spacer | 6941017 |
| 9 | Rivet | 6945505 |
| 10 | Air outlet | 9628843 |
| 11 | Cover | 9628850 |
| 12 | Grille | 9628868 |
| 13 | Flap | 9628876 |
| 14 | Seal | 9628884 |
| 15 | Rivet | 7975717 |
| 16 | Seal | 6973549 |
| 17 | Damper mat | 6975460 |
| 18 | Sealing collar | 8982472 |
| 19 | Rivet nut | 9130829 (replaces 7399454) |
| 20 | Protection | 6975510 |
| 21 | Shaft | 30521805 (replaces 9276403) |
| 22 | Spring | 4005948 |
| 23 | Screw | 7967730 |
| 24 | Clip | 4013165 (replaces 9236589) |
| 25 | Cover | 9267527 |
| 26 | Seal | 4098950 |
| 26 | Seal | 4098943 |
