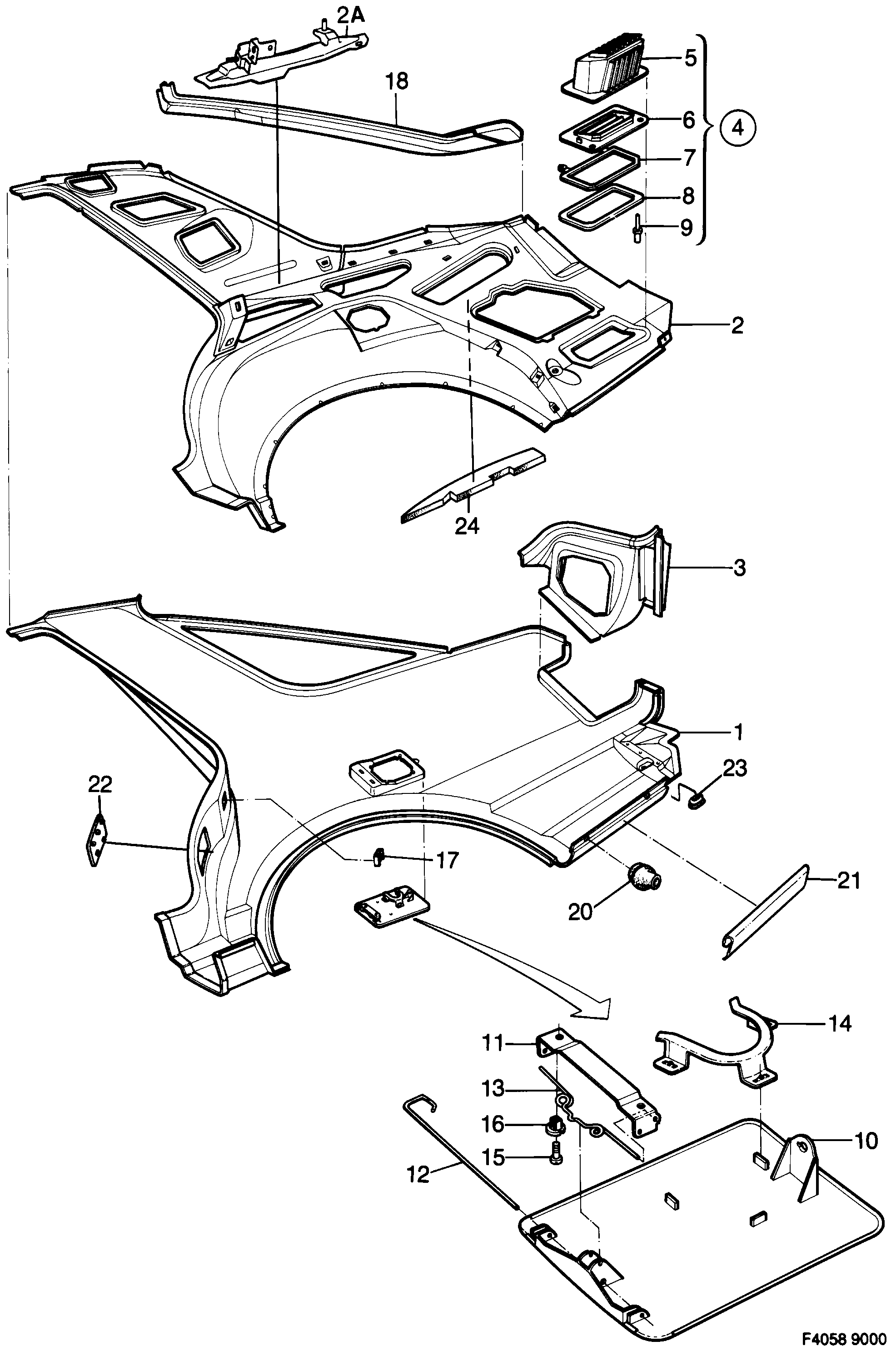

Group 8a Car body, external, section 310
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 9266438 |
| 1 | Valance | 9266420 |
| 2 | Valance | 9266370 |
| 2 | Valance | 9266362 |
| 2A | Reinforcement | 4294237 |
| 2A | Reinforcement | 4294229 |
| 3 | Corner | 9266479 |
| 3 | Corner | 9266461 |
| 4 | Air outlet | 9265372 |
| 5 | Cover | 9264359 |
| 6 | Grille | 9264367 |
| 7 | Flap | 9264375 |
| 8 | Seal | 9264383 |
| 9 | Rivet | 7975717 |
| 10 | Cover | 9276387 |
| 10 | Cover | 6957955 |
| 11 | Hinge | 9255910 |
| 12 | Shaft | 30521805 (replaces 9276403) |
| 13 | Spring | 4005948 |
| 14 | Bracket | 9261801 |
| 15 | Screw | 7967730 |
| 16 | Clip | 4013165 (replaces 9236589) |
| 17 | Bracket | 9266495 |
| 17 | Bracket | 9266487 |
| 18 | Roof gutter | 9266453 |
| 18 | Roof gutter | 9266446 |
| 20 | Plug | 9268160 |
| 21 | Protecting moulding | 9272352 |
| 22 | Cover | 9267527 |
| 23 | Plug | 9277880 |
| 24 | Seal | 4006433 |
