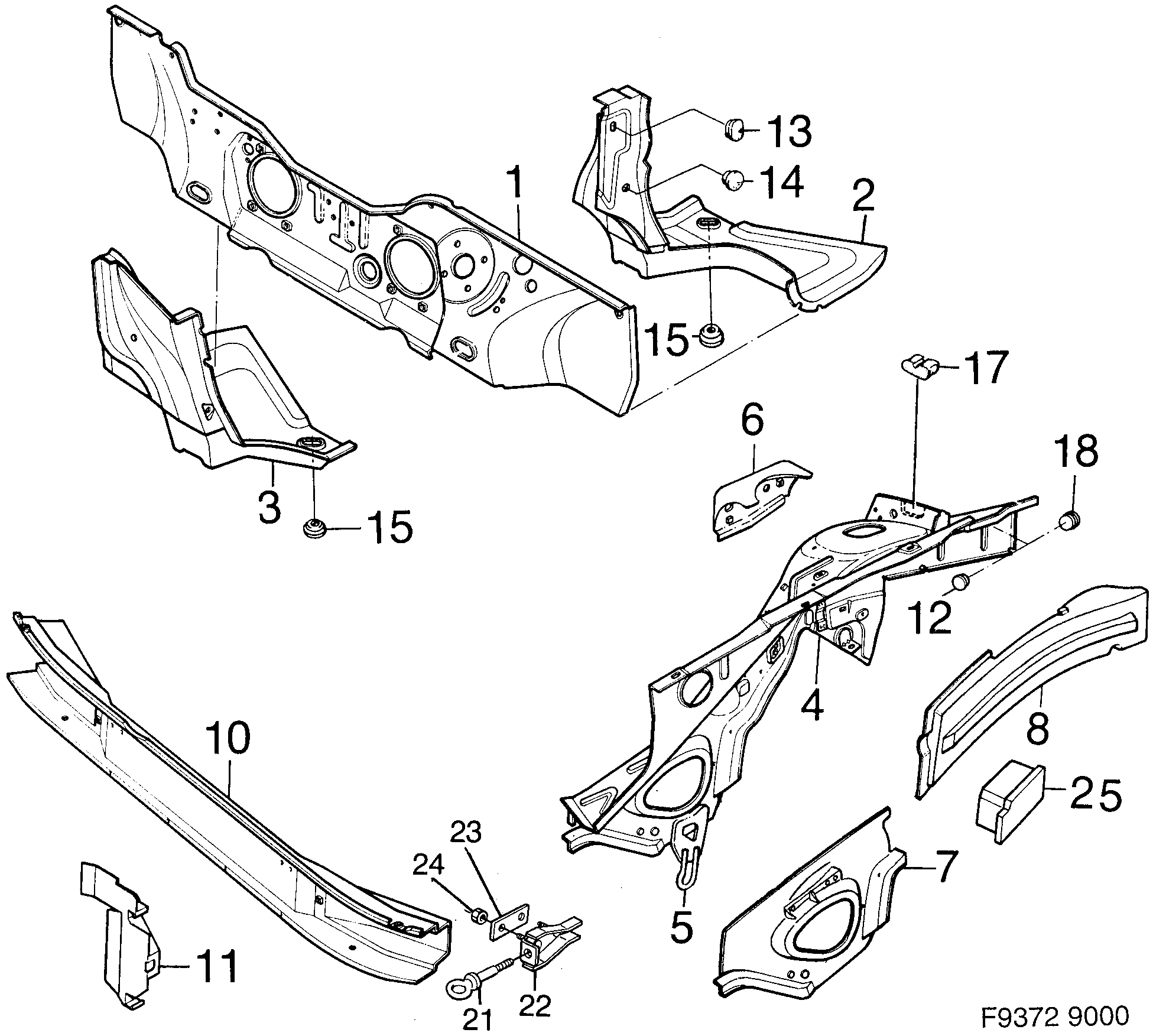

Group 8a Car body, external, section 270
| Pos | Article | Part No. |
|---|---|---|
| 2 | Reinforcement | 9265844 |
| 3 | Reinforcement | 4293726 |
| 4 | Wheel housing | 4098711 |
| 4 | Wheel housing | 4098729 |
| 5 | Towing hook | 6955678 |
| 6 | Bracket | 4293882 |
| 7 | Plate | 4098695 |
| 7 | Plate | 4098703 |
| 8 | Reinforcement | 9275793 |
| 8 | Reinforcement | 9275785 |
| 10 | Beam | 4009700 |
| 11 | Air shield | 9088675 |
| 12 | Plug | 8206096 |
| 13 | Plug | 9267915 |
| 14 | Plug | 9268178 |
| 15 | Plug | 9268863 |
| 17 | Bracket | 4117628 |
| 17 | Bracket | 4583902 |
| 17 | Bracket | 4117610 |
| 17 | Bracket | 4117602 |
| 18 | Plug | 7038342 |
| 18 | Plug | 90242083 (replaces 4333480) |
| 21 | Towing eye | 8670002 |
| 22 | Retaining plate | 9090119 |
| 23 | Clamping plate | 9090135 |
| 24 | Nut | 7974371 |
| 25 | Seal | 4009775 |
| 25 | Seal | 4009767 |
| Weld screw | 7982952 | |
| Weld screw | 4348173 |
