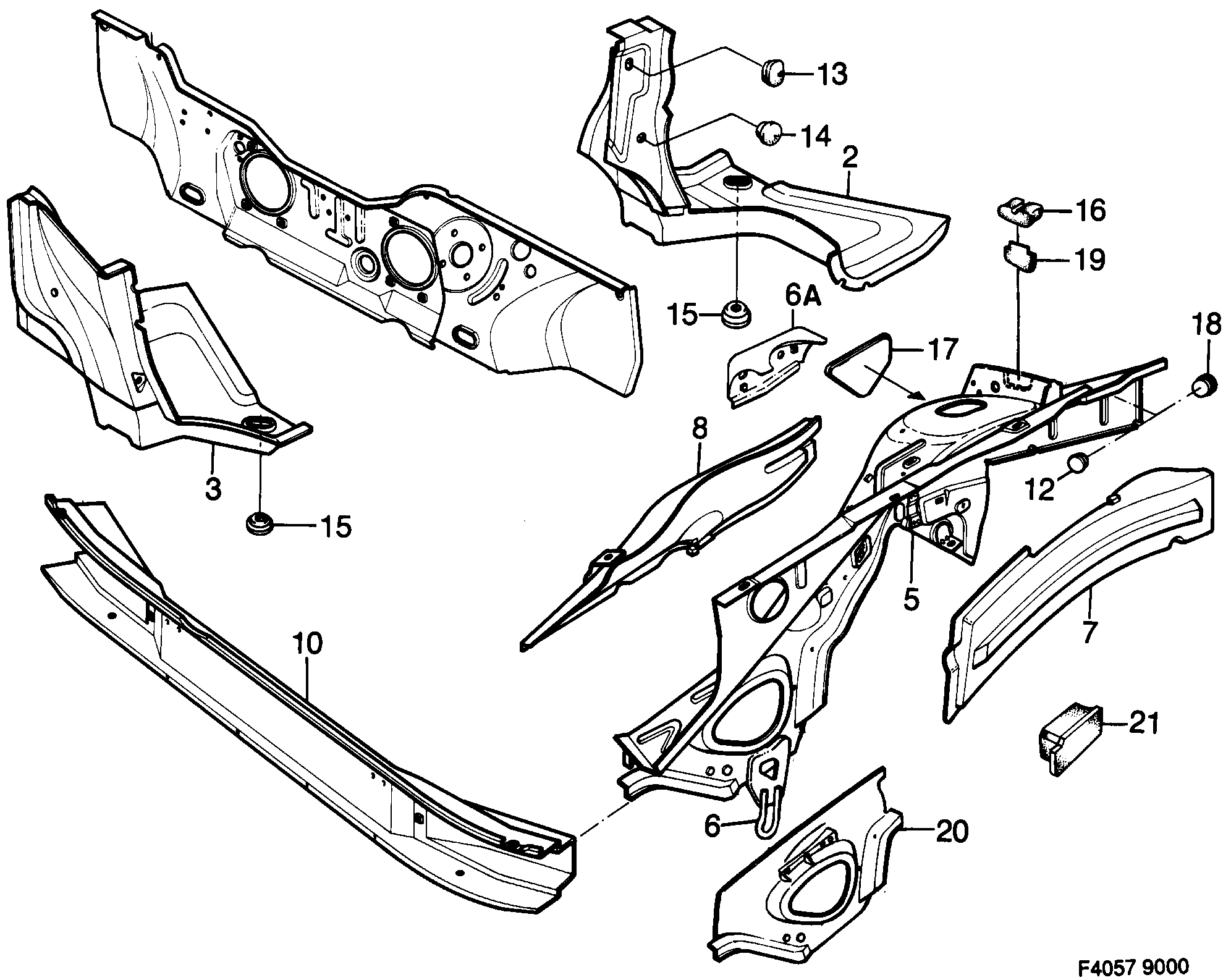

Group 8a Car body, external, section 250
| Pos | Article | Part No. |
|---|---|---|
| 2 | Reinforcement | 9265844 |
| 3 | Reinforcement | 9265836 |
| 5 | Wheel housing | 4100897 (replaces 9265554) |
| 5 | Wheel housing | 4100897 (replaces 9265547) |
| 6 | Towing hook | 6955678 |
| 6A | Bracket | 4293882 |
| 7 | Reinforcement | 9275793 (replaces 9265570) |
| 7 | Reinforcement | 9265562 |
| 7 | Reinforcement | 9275793 |
| 7 | Reinforcement | 9275785 |
| 8 | Beam | 9265596 |
| 8 | Beam | 9265588 |
| 10 | Beam | 4009700 |
| 10 | Beam | 6961940 |
| 12 | Plug | 8206096 |
| 13 | Plug | 9267915 |
| 14 | Plug | 9268806 |
| 14 | Plug | 9268178 |
| 15 | Plug | 9268863 |
| 16 | Seal | 8968133 |
| 17 | Cover | 9267857 |
| 17 | Cover | 6973077 |
| 17 | Cover | 9267840 |
| 17 | Cover | 6973069 |
| 18 | Plug | 7038342 |
| 19 | Seal | 9625641 |
| 20 | Plate | 4098695 (replaces 6962609) |
| 20 | Plate | 4098703 (replaces 6962617) |
| 21 | Seal | 6973853 |
| 21 | Seal | 4009775 |
| 21 | Seal | 6973846 |
| 21 | Seal | 4009767 |
| Tape | 8283715 | |
| Weld screw | 7982952 | |
| Weld screw | 4348173 |
