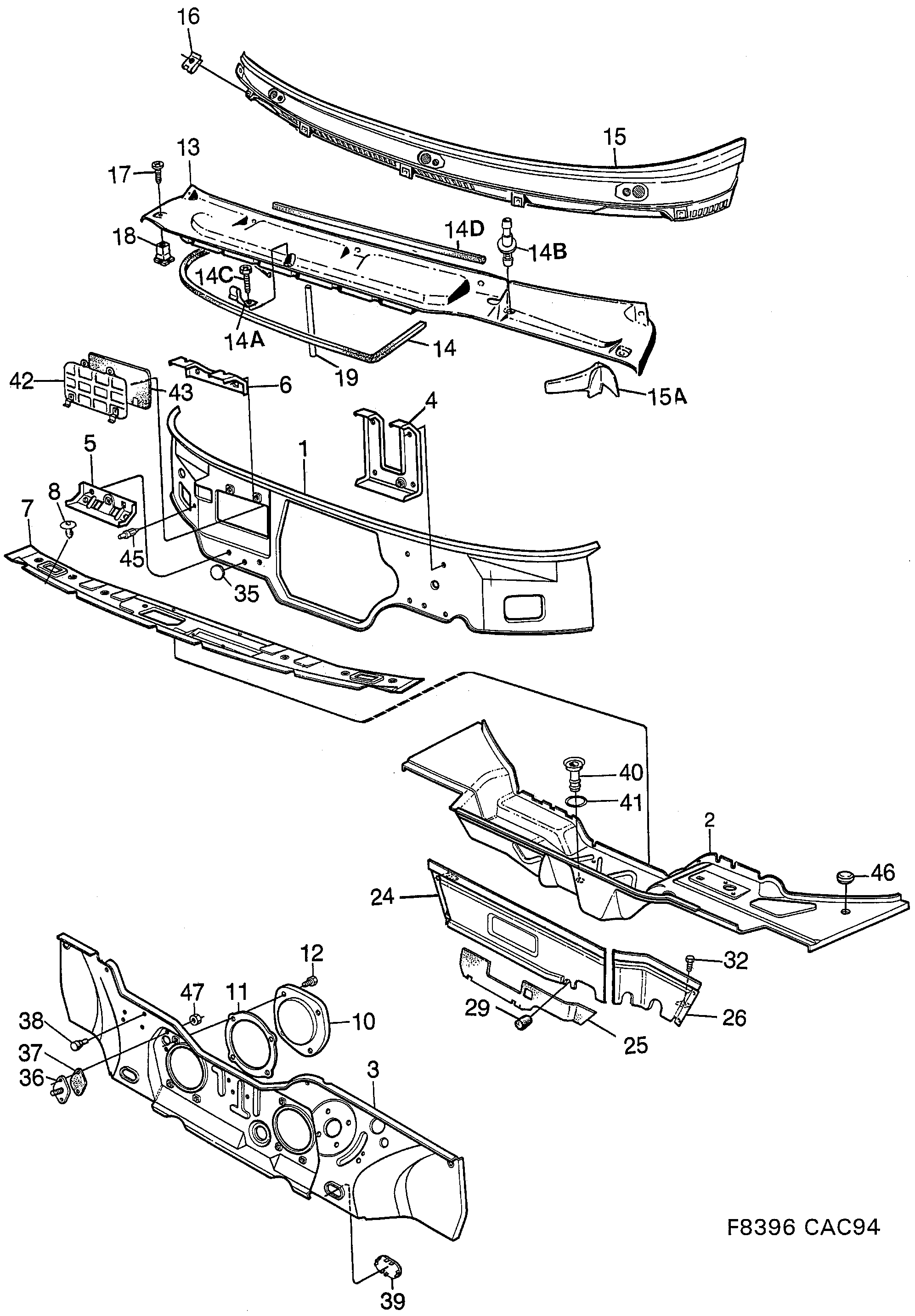

Group 8a Car body, external, section 240
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cowl plate | 32000144 (replaces 4293718) |
| 2 | Cowl plate | 4100301 |
| 2 | Cowl plate | 4298626 |
| 3 | Cowl plate | 4293700 |
| 4 | Bracket | 4293734 |
| 5 | Bracket | 9265786 |
| 6 | Bracket | 9265794 |
| 7 | Cover plate | 4005062 |
| 8 | Plug | 9276353 |
| 10 | Cover | 8956294 |
| 11 | Seal | 8956245 |
| 12 | Screw | 7971294 |
| 12 | Screw | 92153146 (replaces 7972607) |
| 13 | Cover | 30541959 |
| 13 | Cover | 30541960 |
| 14 | Seal | 9630674 |
| 14 | Seal | 4073631 |
| 14A | Brace | 4070785 |
| 14B | Connector | 4094199 |
| 14C | Screw | 4755914 |
| 14D | Seal | 4073110 |
| 15 | Screen | 9630021 |
| 15 | Screen | 4074332 |
| 15A | Screen | 4074696 |
| 15A | Screen | 4074688 |
| 16 | Clip nut | 9427014 |
| 17 | Hexagon screw | 92153149 (replaces 7983000) |
| 18 | Press nut | 7977341 |
| 19 | Draining hose | 30541957 (replaces 4318499) |
| 24 | Cowl plate | 4008538 |
| 24 | Cowl plate | 30556374 (replaces 4295630) |
| 29 | Plug | 4016192 |
| 32 | Screw | 92153149 (replaces 7977465) |
| 35 | Sealing washer | 8929531 |
| 36 | Plate | 8971582 |
| 37 | Gasket | 8941478 |
| 38 | Buffer | 9388588 (replaces 8209009) |
| 39 | Cover | 9267816 |
| 40 | Draining pipe | 6955561 |
| 41 | Tape | 9288127 |
| 42 | Hatch | 4074936 |
| 43 | Seal | 9627746 |
| 45 | Rivet nut | 9130829 (replaces 7399454) |
| 46 | Plug | 7162308 |
| 47 | Lock nut | 55557005 (replaces 7965767) |
| Tape | 8283715 |
