Saab 9000 1990-1993 Car body, external

Group 8a Car body, external, section 1670

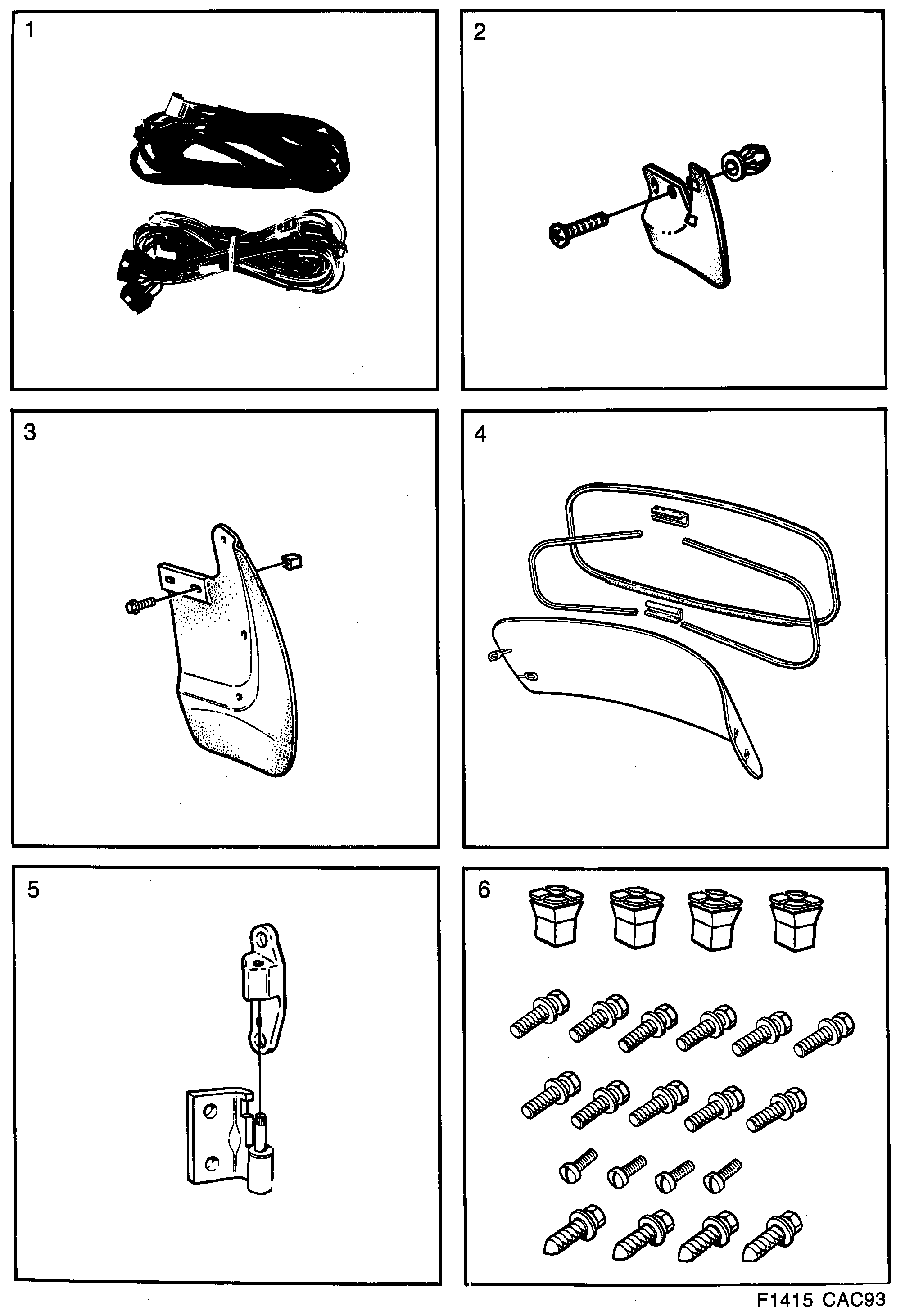

Saab 9000 Car body, external diagram

Pos	Article	Part No.
1	Cable harness	8547390
	Cable harness	9523598
	Tie strap	11900513 (replaces 7971880)
2	Baffle	8284721 (replaces 9698416)
	Screw	8059271
	Screw	7981947
	Baffle	4008959
	Baffle	4008942 (replaces 9279407)
	Nut	9288846
2	Baffle	9698424
	Baffle	9279415
2	Baffle	9698432
2	Baffle	8284721
	Screw	92153216 (replaces 7982325)
	Baffle	4008942
	Nut	9087040
2	Baffle	8284747
2	Baffle	8284739
3	Baffle	9698440
	Screw	7973191
	Baffle	9268038
3	Baffle	9698457
	Baffle	9268020
3	Baffle	8284663
	Baffle	4099776
3	Baffle	8284655
	Baffle	4099768
4	Rear window	7497118 (replaces 8284069)
	Rear window	4306486 (replaces 6943559)
	Cover moulding	6948871
	Strip holder	6962807
	Strip holder	6962815
	Connector	9278334
	Spacer	6991244
	Spacer	12787842 (replaces 6992028)
5	Hinge kit	8284085
	Hinge	6960793
	Hinge	4306809 (replaces 6961718)
5	Hinge kit	8284077
	Hinge	6960785
	Hinge	4306791 (replaces 6961700)
6	Mounting kit	6962708
	Nut	7975279
	Screw	92151807 (replaces 7976988)
	Screw	92153149 (replaces 7977465)
6	Mounting kit	4009502
	Press nut	7982655
