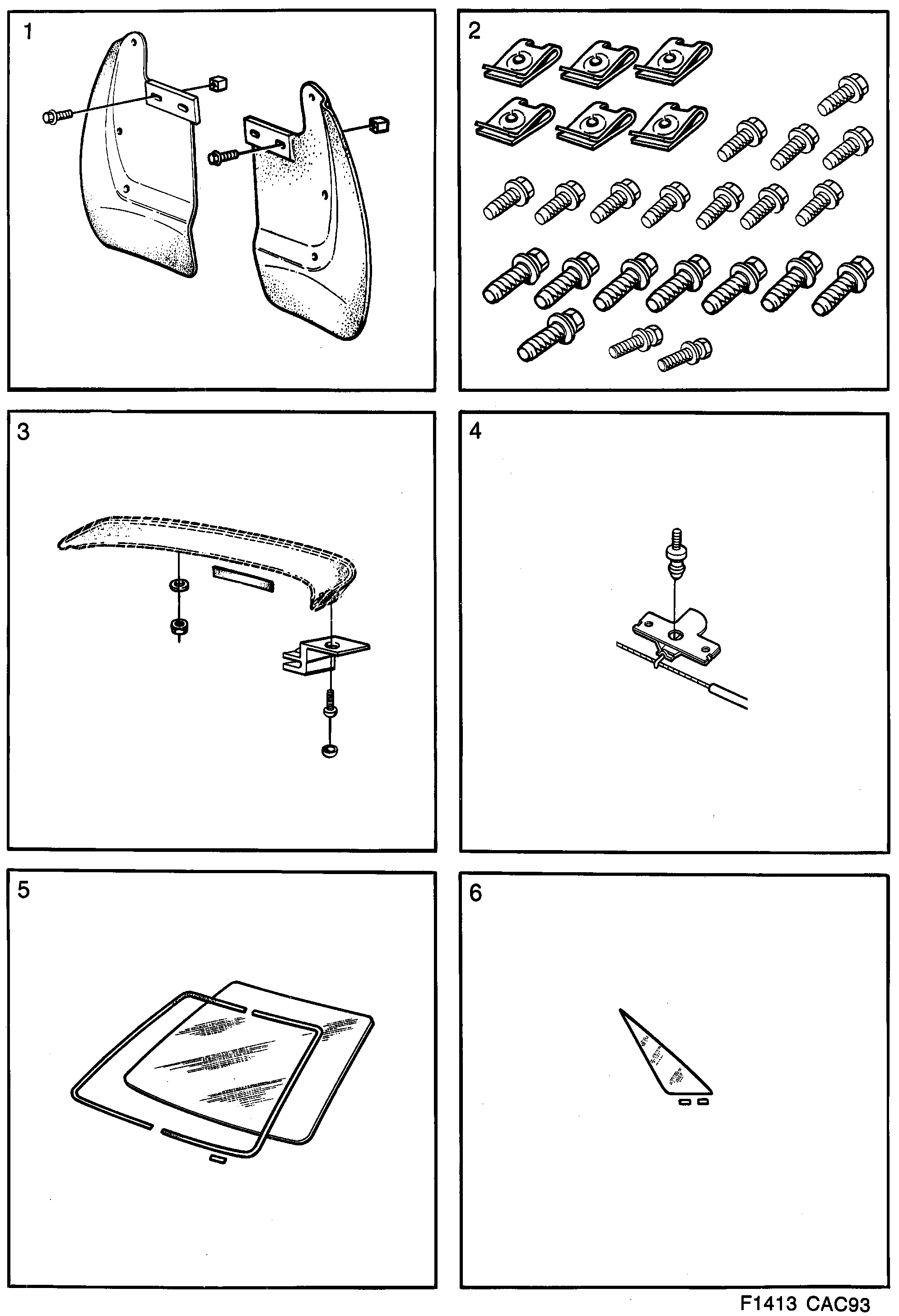

Group 8a Car body, external, section 1610
| Pos | Article | Part No. |
|---|---|---|
| 1 | Baffle | 7874431 |
| Baffle | 9268038 | |
| Baffle | 9268020 | |
| Screw | 7973175 | |
| Nut | 7975261 | |
| 1 | Baffle | 8284341 |
| Baffle | 4099776 | |
| Baffle | 4099768 | |
| Screw | 92153216 (replaces 7982325) | |
| Press nut | 7982655 | |
| Washer | 8273468 | |
| Nut | 9087040 | |
| 2 | Mounting kit | 9267956 |
| Screw | 7973134 | |
| Clip | 7977523 | |
| Screw | 92151807 (replaces 7976988) | |
| Screw | 7976996 | |
| 3 | Mounting kit | 8284267 |
| Nut | 7398423 | |
| Screw | 8059537 | |
| Clip | 4013454 | |
| Washer | 12755938 (replaces 4089389) | |
| Attaching bracket | 9277864 | |
| Protecting cap | 9278847 | |
| 3 | Mounting kit | 8284523 |
| Washer | 4250114 | |
| Nut | 7977671 | |
| 4 | Hood catch kit | 9698523 |
| Hood lock | 6973689 | |
| Lock pin | 6973788 | |
| 4 | Hood catch kit | 9698515 |
| Hood lock | 12785020 (replaces 6973697) | |
| 5 | Windshield | 7497092 (replaces 8284028) |
| Windshield | 6956924 | |
| Mounting kit | 8284531 | |
| Screw | 7967771 | |
| Decor strip | 4250320 | |
| Connector | 9278334 | |
| Strip holder | 9278318 | |
| Strip holder | 9278300 | |
| 5 | Windshield | 7497092 (replaces 8284903) |
| Windshield | 4304648 | |
| 5 | Windshield | 7497092 (replaces 8285272) |
| Windshield | 4250262 | |
| 5 | Windshield | 7497092 (replaces 7497050) |
| Windshield | 4305884 | |
| Spacer | 7497084 | |
| Spacer | 4013603 | |
| Spacer | 6991244 | |
| 5 | Windshield | 7497092 (replaces 7497043) |
| Windshield | 4250460 | |
| 6 | Side window | 8283897 |
| Side window | 6991509 | |
| Spacer | 9259557 | |
| 6 | Side window | 8283905 |
| Side window | 6991491 |
