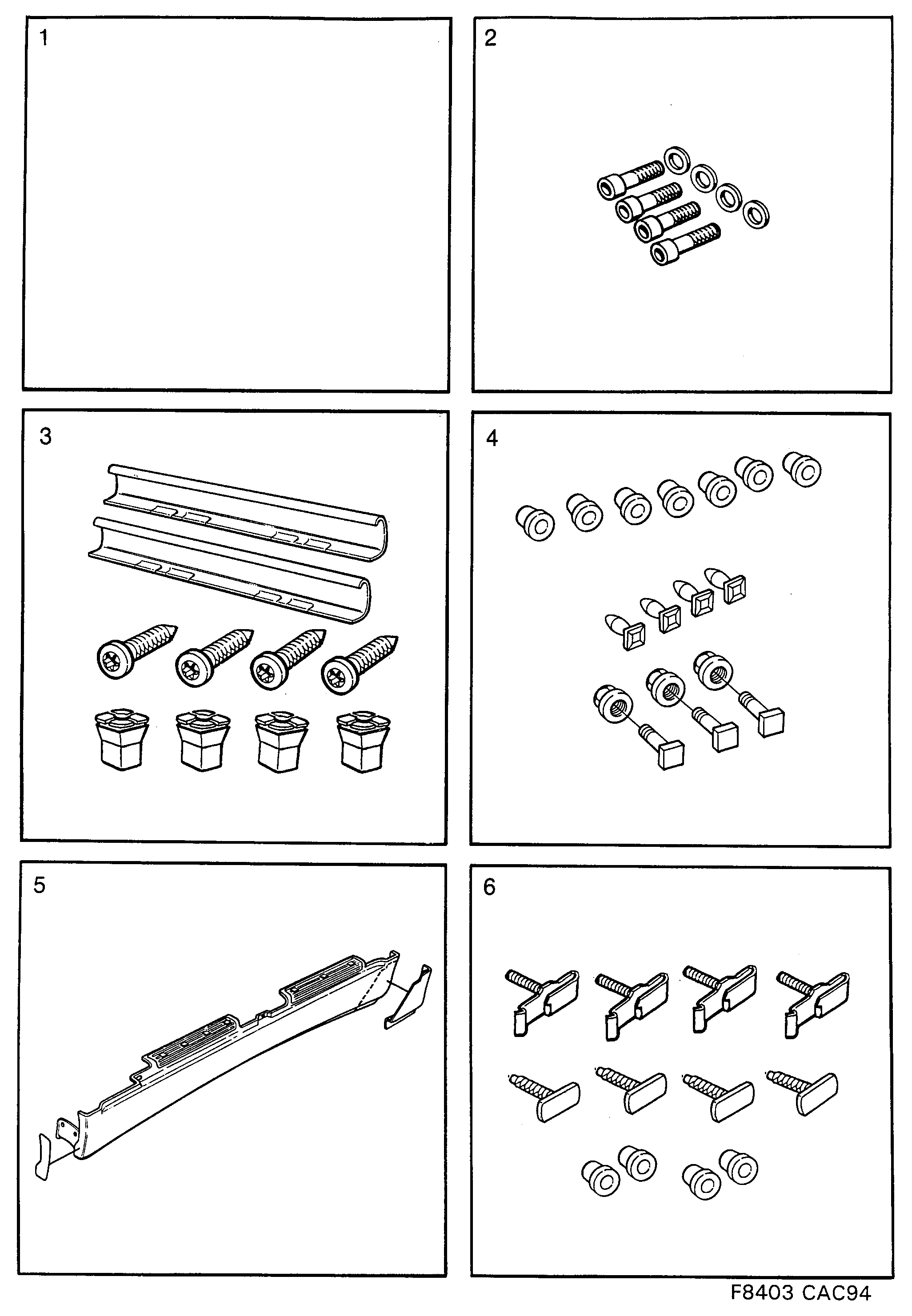

Group 8a Car body, external, section 1530
| Pos | Article | Part No. |
|---|---|---|
| 2 | Mounting kit | 12804284 (replaces 9240086) |
| Plastic washer | 7398506 | |
| Screw | 7977390 | |
| Screw | 92153219 (replaces 7970601) | |
| 3 | Mounting kit | 8284531 |
| Decor strip | 4250320 | |
| Nut | 7975261 | |
| Connector | 9278334 | |
| 4 | Mounting kit | 7496029 |
| Bushing | 7373269 | |
| Screw | 7399470 | |
| Nut | 7399488 | |
| 4 | Mounting kit | 7496037 |
| Clip | 9253329 | |
| 5 | Sill cover | 8285439 |
| Protective foil | 4447124 | |
| Protective foil | 8662843 | |
| Screw | 6959464 | |
| Sill cover | 4435210 | |
| 5 | Sill cover | 8285421 |
| Protective foil | 4447116 | |
| Protective foil | 8662835 | |
| Sill cover | 4435202 | |
| 6 | Mounting kit | 7497589 |
| Screw | 4087151 | |
| Clip | 4090197 | |
| Sealing strip | 4484796 |
