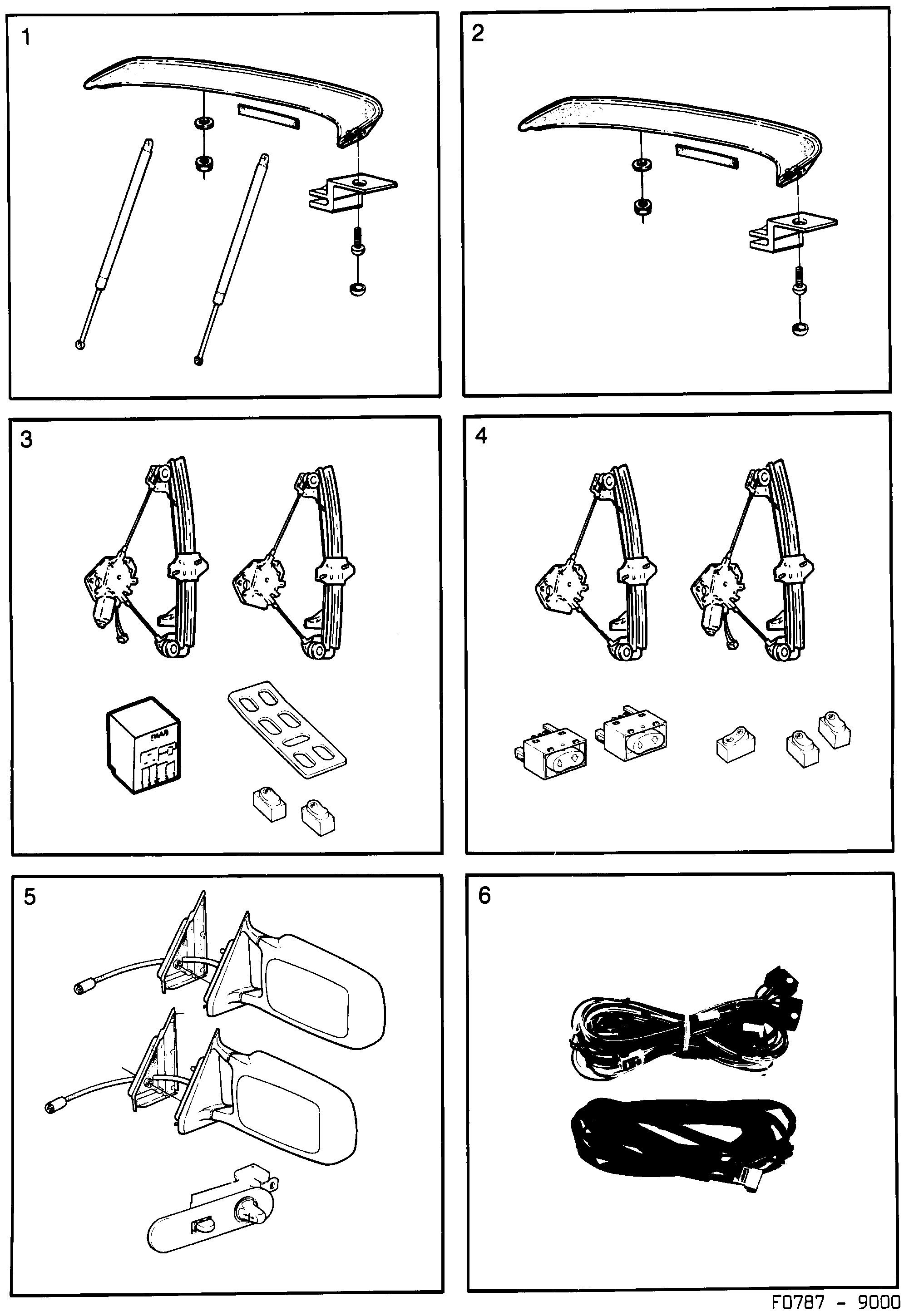

Group 8a Car body, external, section 1360
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spoiler | 7874811 |
| Gas spring | 6956288 | |
| Spoiler | 9277609 | |
| Mounting kit | 9698374 | |
| 1 | Spoiler | 8284283 |
| Spoiler | 6992838 | |
| Mounting kit | 8284267 | |
| 2 | Spoiler | 7874688 |
| 2 | Spoiler | 8284275 |
| 3 | Window regulator | 8547291 |
| Nut | 11900428 (replaces 7971658) | |
| Screw | 7922420 | |
| Cover washer | 8817884 | |
| Window regulator | 9255217 | |
| Window regulator | 9255209 | |
| Switch | 9501859 | |
| Cover washer | 9501891 | |
| Retainer | 9506676 | |
| Switch | 30526039 (replaces 9512310) | |
| Relay | 30526059 (replaces 9512823) | |
| Clip | 8817892 | |
| 4 | Window regulator | 8547309 |
| Window regulator | 9255233 | |
| Window regulator | 9255225 | |
| Switch | 9501867 | |
| Switch | 9501875 | |
| Switch | 9503772 | |
| 5 | Rear view mirror kit | 8547317 |
| Switch | 9505488 | |
| Cover | 4268389 (replaces 9694704) | |
| Cover | 4268397 (replaces 9660051) | |
| Rear view mirror | 4684775 (replaces 9661307) | |
| Rear view mirror | 4684734 (replaces 9661364) | |
| 5 | Rear view mirror kit | 8547325 |
| Rear view mirror | 4684809 (replaces 9661208) | |
| Rear view mirror | 4684783 (replaces 9661240) | |
| 6 | Cable harness | 8547333 |
| Cable harness | 9523556 | |
| Cable harness | 9523572 | |
| 6 | Cable harness kit | 8547473 |
| Cable harness | 9567959 | |
| Cable harness | 9526872 | |
| Tie strap | 11900513 (replaces 7971880) |
