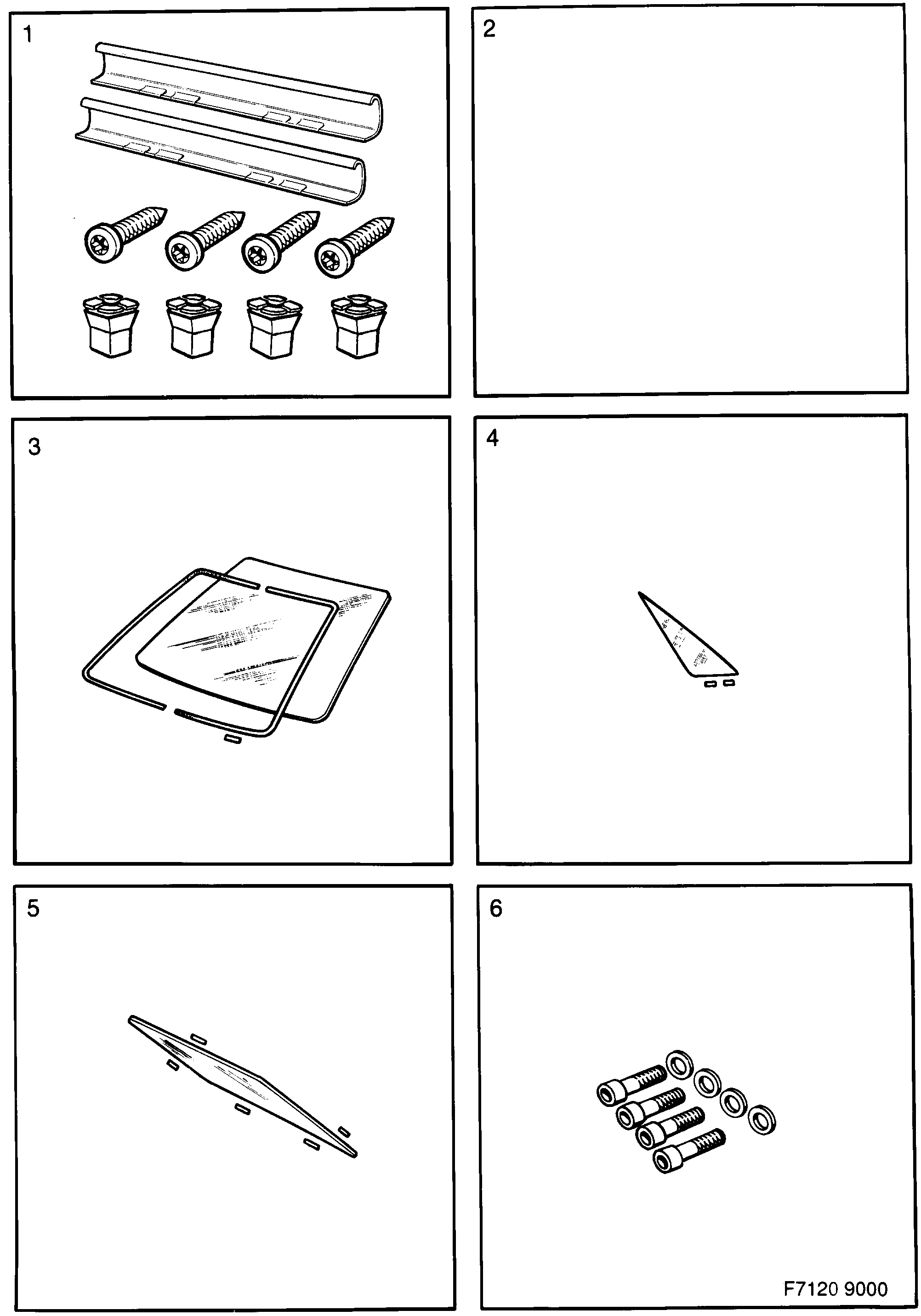

Group 8a Car body, external, section 1330
| Pos | Article | Part No. |
|---|---|---|
| 1 | Mounting kit | 8284531 |
| Decor strip | 4250320 | |
| Screw | 92153219 (replaces 7970601) | |
| Nut | 7975261 | |
| Connector | 9278334 | |
| 3 | Windshield | 7497092 (replaces 7497050) |
| Windshield | 4305884 | |
| Spacer | 7497084 | |
| Spacer | 4013603 | |
| Spacer | 6991244 | |
| Strip holder | 9278318 | |
| Strip holder | 9278300 | |
| 3 | Windshield | 7497092 (replaces 7497043) |
| Windshield | 4250460 | |
| 3 | Windshield | 8285330 |
| Windshield | 4304143 | |
| 3 | Windshield | 7497092 (replaces 8285272) |
| Windshield | 4250262 | |
| 4 | Side window | 8283897 |
| Side window | 6991509 | |
| Spacer | 9259557 | |
| 4 | Side window | 8283905 |
| Side window | 6991491 | |
| 5 | Rear window | 8284580 (replaces 8283988) |
| Rear window | 9277229 | |
| Spacer | 6956734 | |
| Spacer | 9259565 | |
| 5 | Rear window | 8284598 (replaces 8284101) |
| Rear window | 6948590 | |
| 6 | Mounting kit | 12804284 (replaces 9240086) |
| Plastic washer | 7398506 | |
| Screw | 7977390 |
