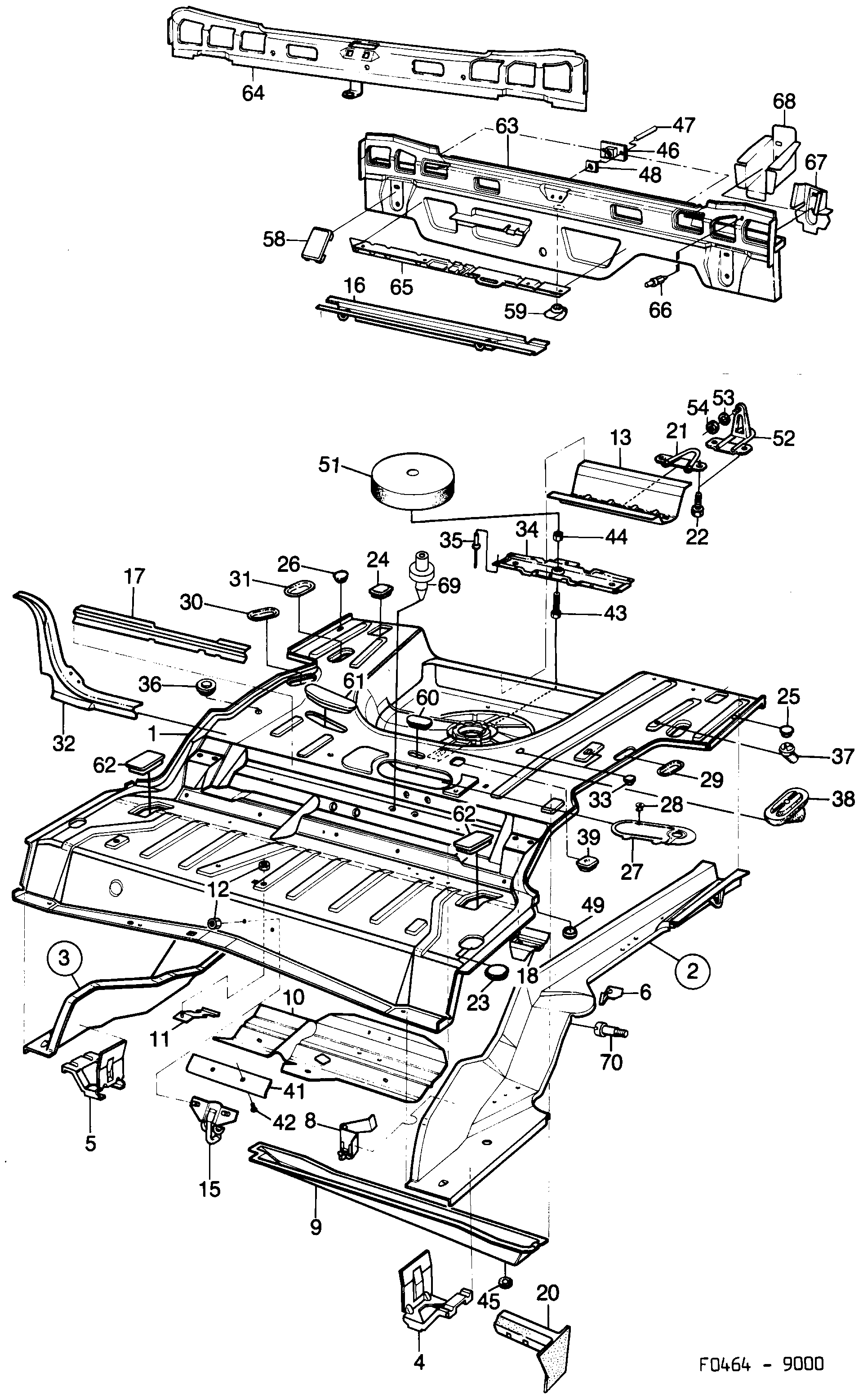

Group 8a Car body, external, section 130
| Pos | Article | Part No. |
|---|---|---|
| 1 | Floor | 9265943 |
| 2 | Beam | 9265976 |
| 2 | Beam | 9276932 |
| 3 | Beam | 30521810 (replaces 9265968) |
| 3 | Beam | 30521810 (replaces 9276924) |
| 4 | Jack support | 9265984 |
| 4 | Jack support | 6958011 |
| 5 | Jack support | 9265992 |
| 5 | Jack support | 6958003 |
| 6 | Bracket | 9266016 |
| 6 | Bracket | 9266008 |
| 8 | Suspension | 9265950 |
| 8 | Suspension | 6976278 |
| 9 | Crossmember | 9266024 |
| 10 | Reinforcement | 9266032 |
| 11 | Bracket | 9266040 |
| 12 | Lock nut | 7968415 |
| 13 | Support | 9266057 |
| 13 | Support | 9276940 |
| 15 | Suspension | 9266073 |
| 16 | Support | 9266081 |
| 17 | Bevel wall | 9266099 |
| 18 | Bracket | 9266115 |
| 18 | Bracket | 9266107 |
| 20 | Protection | 9267717 |
| 20 | Protection | 9267709 |
| 21 | Towing hook | 9278912 (replaces 9262619) |
| 21 | Towing hook | 9278912 |
| 22 | Screw | 92152121 (replaces 7974850) |
| 22 | Screw | 92152121 (replaces 8130064) |
| 23 | Cover | 9267865 |
| 24 | Cover | 9267774 |
| 25 | Plug | 9268814 |
| 26 | Plug | 9268822 |
| 27 | Cover | 9387994 |
| 28 | Latch | 9387911 |
| 29 | Cover | 8962342 |
| 30 | Cover | 8962359 |
| 31 | Cover | 8962334 |
| 32 | Bevel wall | 9265935 |
| 32 | Bevel wall | 9265927 |
| 33 | Plug | 8239170 |
| 34 | Support member | 9269184 |
| 34 | Support member | 9276106 |
| 35 | Pop rivet | 8235178 |
| 36 | Plug | 6919658 |
| 37 | Plug | 9267998 |
| 38 | Plug | 9267980 |
| 41 | Cover plate | 9271263 |
| 43 | Screw | 7398688 |
| 44 | Nut | 11900429 (replaces 7967953) |
| Tape | 9288127 | |
| 45 | Plug | 8206096 |
| 46 | Nut plate | 9653502 |
| 47 | Rivet | 92153058 (replaces 7972490) |
| 48 | Washer | 9230293 |
| 49 | Plug | 8241325 |
| 51 | Seal | 6962542 |
| 52 | Towing hook | 6939805 |
| 53 | Washer | 6939839 |
| 54 | Nut | 11900437 (replaces 7978620) |
| 54 | Nut | 7967979 |
| 58 | Cover | 6958987 |
| 59 | Draining plug | 9267998 (replaces 8266876) |
| 60 | Seal | 6973812 |
| 61 | Seal | 6973820 |
| 62 | Seal | 6973838 |
| 63 | Rear section | 9266198 |
| 63 | Rear section | 6963912 |
| 64 | Sill | 6962625 |
| 64 | Sill | 6963920 |
| 65 | Support | 6963904 |
| 66 | Rivet nut | 9130829 (replaces 7399454) |
| 67 | Support | 9266065 |
| 68 | Spacer | 6973564 |
| 68 | Spacer | 6973556 |
| 69 | Plug | 6960975 |
| 70 | Screw | 6973440 |
