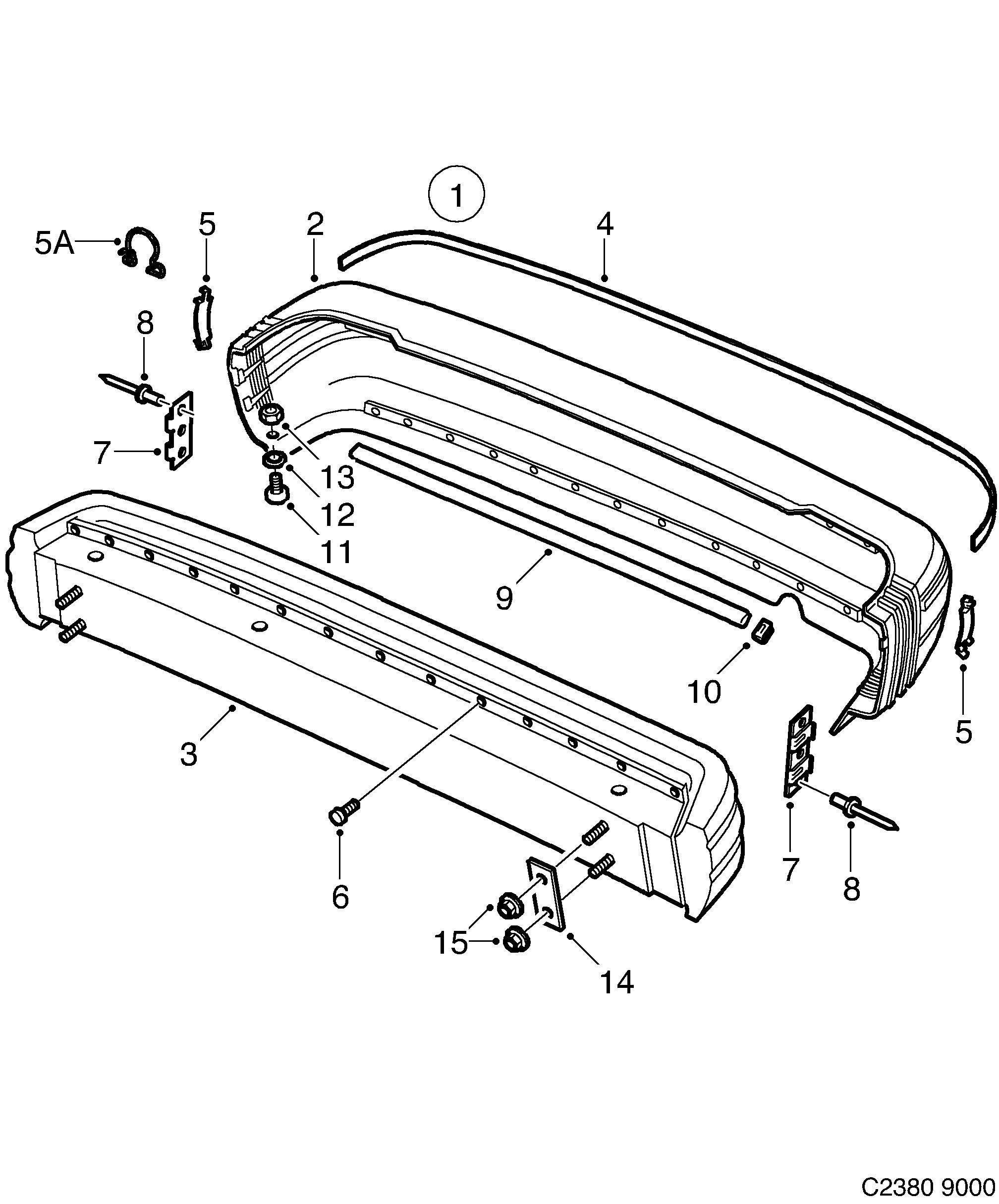

Group 8a Car body, external, section 1260
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bumper | 4093969 |
| 1 | Bumper | 4343802 |
| 1 | Bumper | 4447330 |
| 2 | Cover | 4093977 |
| 2 | Cover | 4447868 |
| 2 | Cover | 4447447 |
| 3 | Bumper rail | 6955264 |
| 4 | Decor strip | 6973945 |
| 4 | Decor strip | 4446258 |
| 5 | Spring | 6959142 |
| 5A | Beam spring | 6991954 |
| 5A | Beam spring | 6991871 |
| 6 | Screw | 4446290 |
| 7 | Bracket | 4340634 |
| 7 | Bracket | 4340626 |
| 8 | Rivet | 92153060 (replaces 7972516) |
| 9 | Moulding | 4010625 |
| 10 | Clip | 4013256 |
| 11 | Screw | 92153149 (replaces 7977465) |
| 11 | Screw | 7922370 |
| 12 | Washer | 7088073 |
| 13 | Nut | 4008504 (replaces 4005237) |
| 13 | Spring nut | 7933682 |
| 14 | Seal | 9234055 (replaces 6992325) |
| 15 | Nut | 7967979 |
