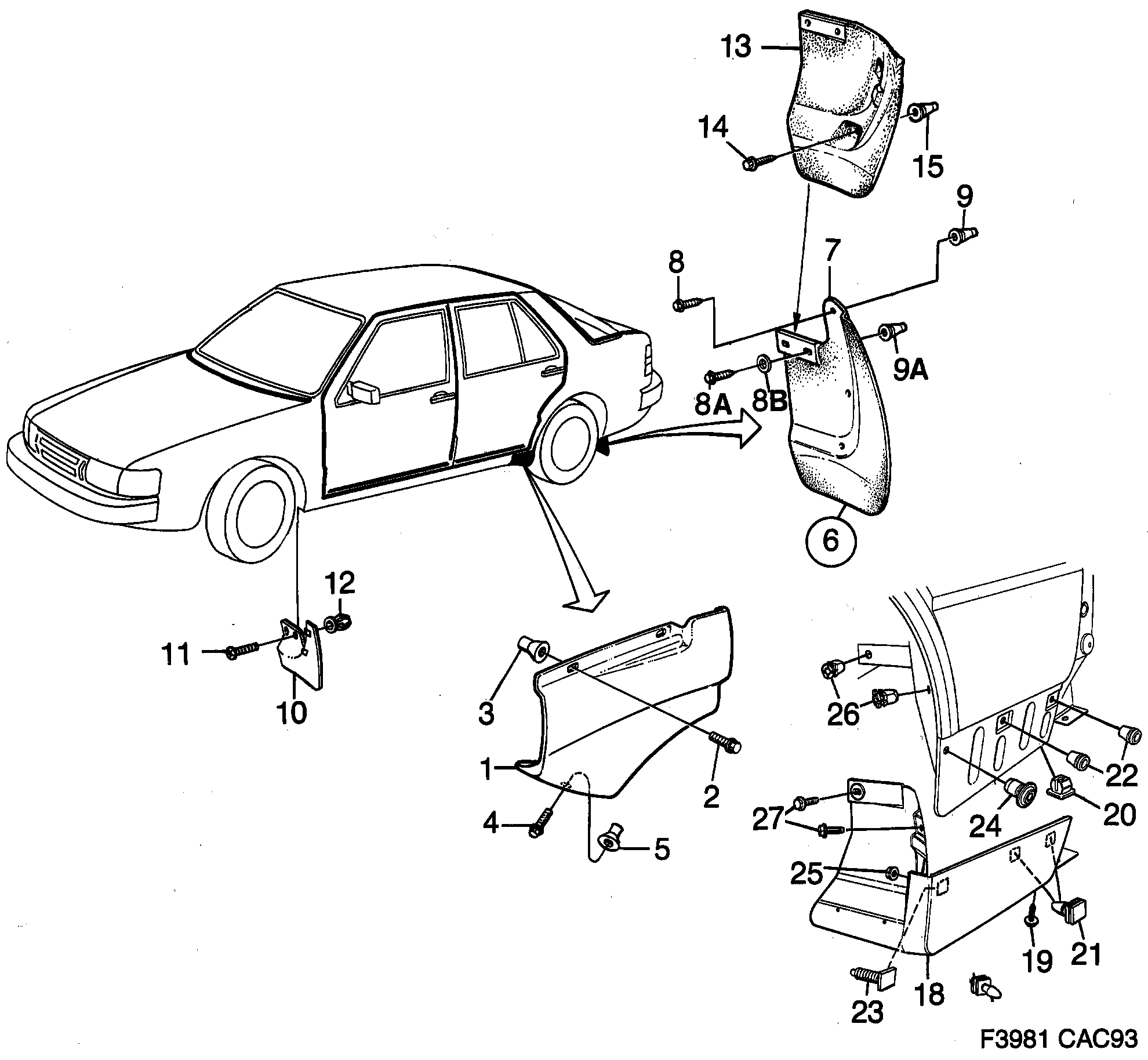

Group 8a Car body, external, section 1250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Protection | 4293635 |
| 1 | Protection | 4293643 |
| 2 | Screw | 9571118 |
| 3 | Nut | 7975261 |
| 4 | Screw | 7973175 |
| 5 | Press nut | 7977358 |
| 6 | Baffle | 7874431 |
| 6 | Baffle | 9698440 |
| 6 | Baffle | 9698457 |
| 6 | Baffle | 8284341 |
| 6 | Baffle | 8284663 |
| 6 | Baffle | 8284655 |
| 7 | Baffle | 9268038 |
| 7 | Baffle | 9268020 |
| 7 | Baffle | 4099776 |
| 7 | Baffle | 4099768 |
| 8 | Screw | 7972672 (replaces 7978646) |
| 8 | Screw | 7973191 |
| 8 | Screw | 92153216 (replaces 7982325) |
| 8B | Washer | 8273468 |
| 9 | Press nut | 7982655 |
| 9A | Nut | 9087040 |
| 10 | Baffle | 8284721 (replaces 9698416) |
| 10 | Baffle | 9698424 |
| 10 | Baffle | 9698432 |
| 10 | Baffle | 8284721 |
| 10 | Baffle | 8284747 |
| 10 | Baffle | 8284739 |
| 10 | Baffle | 9279415 |
| 10 | Baffle | 4008942 (replaces 9279407) |
| 10 | Baffle | 4008959 |
| 10 | Baffle | 4008942 |
| 11 | Screw | 7981947 |
| 12 | Nut | 9288846 |
| 13 | Baffle | 6938914 |
| 13 | Baffle | 6938906 |
| 15 | Nut | 4008504 |
| 18 | Stone guard | 4006110 |
| 18 | Stone guard | 4006102 |
| 18 | Stone guard | 30538231 (replaces 4006136) |
| 18 | Stone guard | 30538230 (replaces 4006128) |
| 18 | Stone guard | 9082678 |
| 18 | Stone guard | 9082660 |
| 19 | Screw | 92151994 (replaces 7972953) |
| 20 | Nut | 4008504 (replaces 4005237) |
| 21 | Clip | 7373251 |
| 22 | Bushing | 7373269 |
| 23 | Screw | 6959464 |
| 24 | Bushing | 30521853 (replaces 9278151) |
| 25 | Nut | 7399488 |
| 27 | Screw | 92153149 (replaces 7977465) |
| Stone guard kit | 8284572 | |
| Stone guard kit | 8284564 | |
| Stone guard kit | 8284556 | |
| Stone guard kit | 8284549 |
