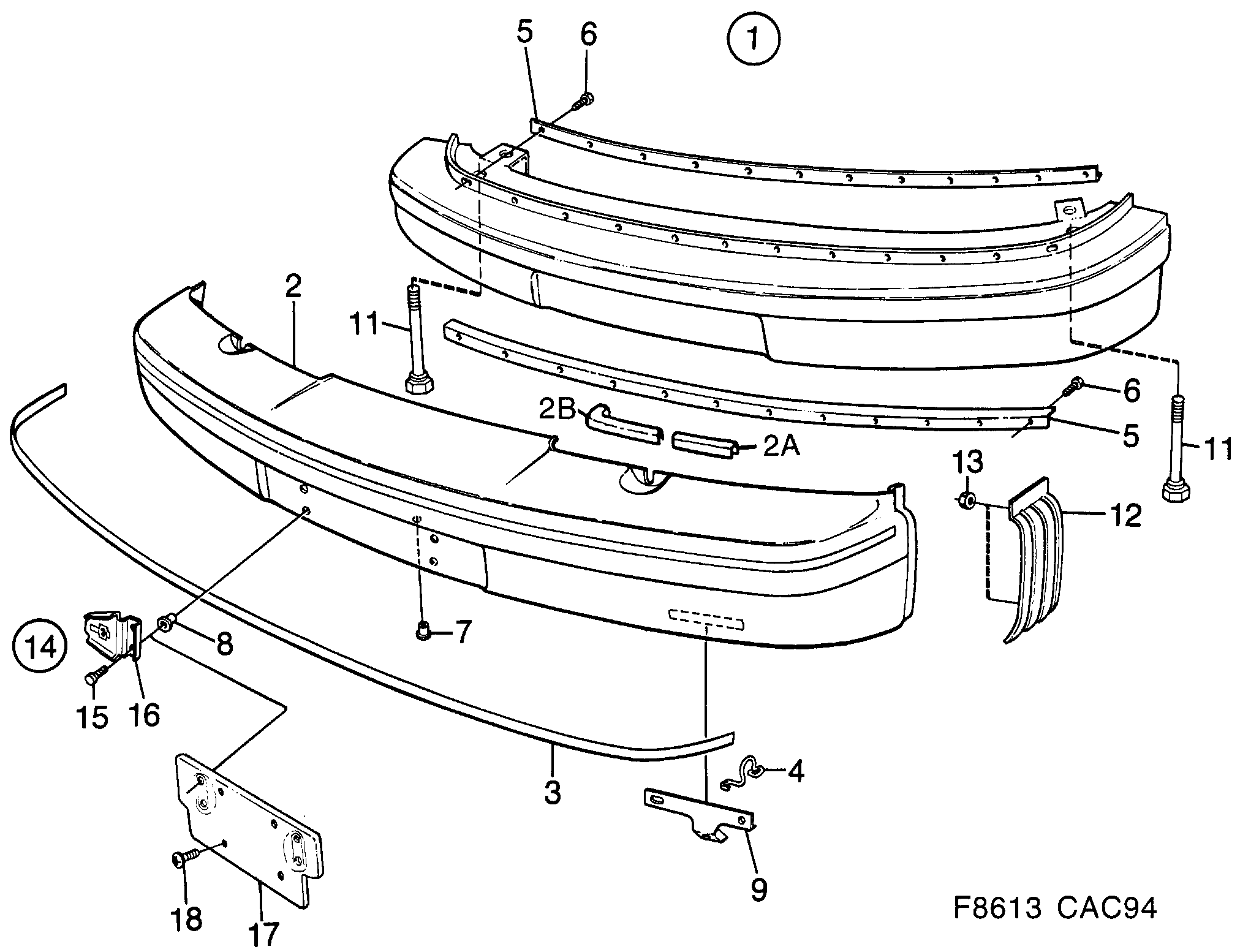

Group 8a Car body, external, section 1230
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bumper | 9081217 |
| 1 | Bumper | 4320461 |
| 1 | Bumper | 4484689 |
| 2 | Cover | 4446266 |
| 2 | Cover | 4435327 |
| 2A | Seal | 4380036 |
| 2B | Seal | 4096756 |
| 2B | Seal | 4096749 |
| 3 | Decor strip | 4089736 |
| 4 | Beam spring | 6991954 |
| 4 | Beam spring | 6991871 |
| 5 | Attaching rail | 9081282 |
| 6 | Screw | 4446290 |
| 7 | Nut | 9288846 |
| 8 | Nut | 9087040 |
| 9 | Bracket | 4088118 |
| 9 | Bracket | 4088100 |
| 11 | Screw | 7399884 |
| 12 | Retainer | 4093522 |
| 12 | Retainer | 4093514 |
| 13 | Nut | 11900451 (replaces 7977929) |
| 14 | Retainer kit | 8284846 |
| 15 | Screw | 8059578 |
| 16 | Retainer | 9081316 |
| 17 | Bracket | 6921142 |
| 18 | Screw | 7977390 |
