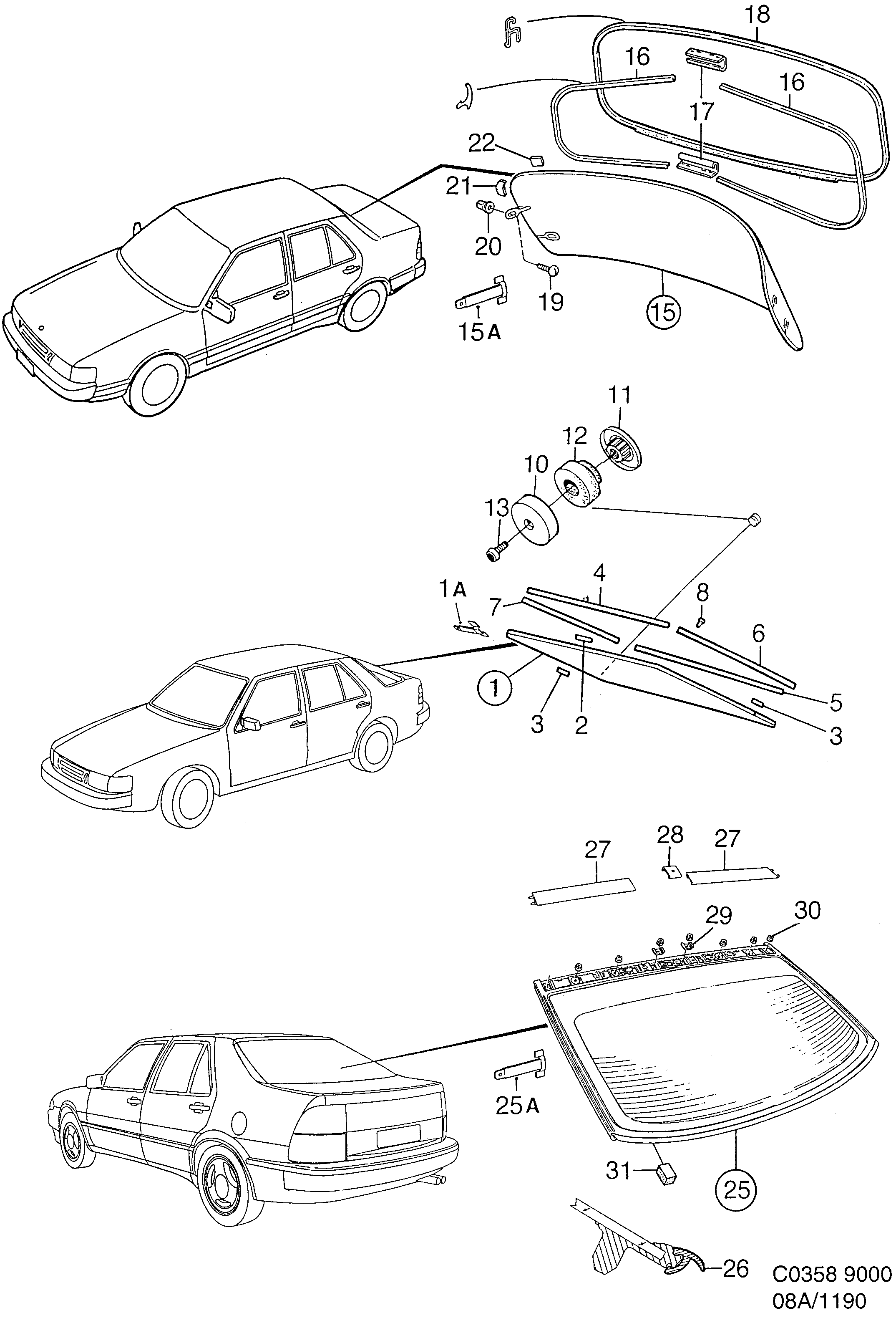

Group 8a Car body, external, section 1190
| Pos | Article | Part No. |
|---|---|---|
| 1 | Rear window | 8284580 |
| 1 | Rear window | 8284598 |
| 1A | Connecting tab | 5182985 |
| 2 | Spacer | 4171229 |
| 2 | Spacer | 4013603 |
| 3 | Spacer | 6956734 |
| 4 | Decor strip | 4096657 |
| 4 | Decor strip | 4254348 |
| 5 | Decor strip | 4014163 |
| 6 | Decor strip | 4014601 |
| 7 | Decor strip | 4014593 |
| 8 | Screw | 7972425 |
| 10 | Cover | 6948574 |
| 11 | Cover | 6937981 |
| 12 | Grommet | 6948566 |
| 13 | Screw | 7965833 |
| 15 | Rear window | 7497118 (replaces 8284069) |
| 16 | Strip holder | 6962815 |
| 16 | Strip holder | 6962807 |
| 17 | Connector | 9278334 |
| 18 | Cover moulding | 6948871 |
| 19 | Screw | 7967771 |
| 19 | Screw | 92153219 (replaces 7970601) |
| 20 | Nut | 7975261 |
| 21 | Spacer | 6991244 |
| 22 | Spacer | 12787842 (replaces 6992028) |
| 25 | Rear window | 4306296 (replaces 9088527) |
| 25A | Connecting tab | 9089855 |
| 26 | Seal | 30541922 (replaces 4304341) |
| 27 | Decor strip | 9084773 |
| 27 | Decor strip | 9084765 |
| 27 | Decor strip | 9083858 |
| 27 | Decor strip | 9083841 |
| 28 | Connection | 9083866 |
| 28 | Connection | 9083874 |
| 29 | Washer | 9089517 |
| 30 | Nut | 32026207 (replaces 7977911) |
| 30 | Nut | 7398423 |
| 31 | Seal | 4096343 |
