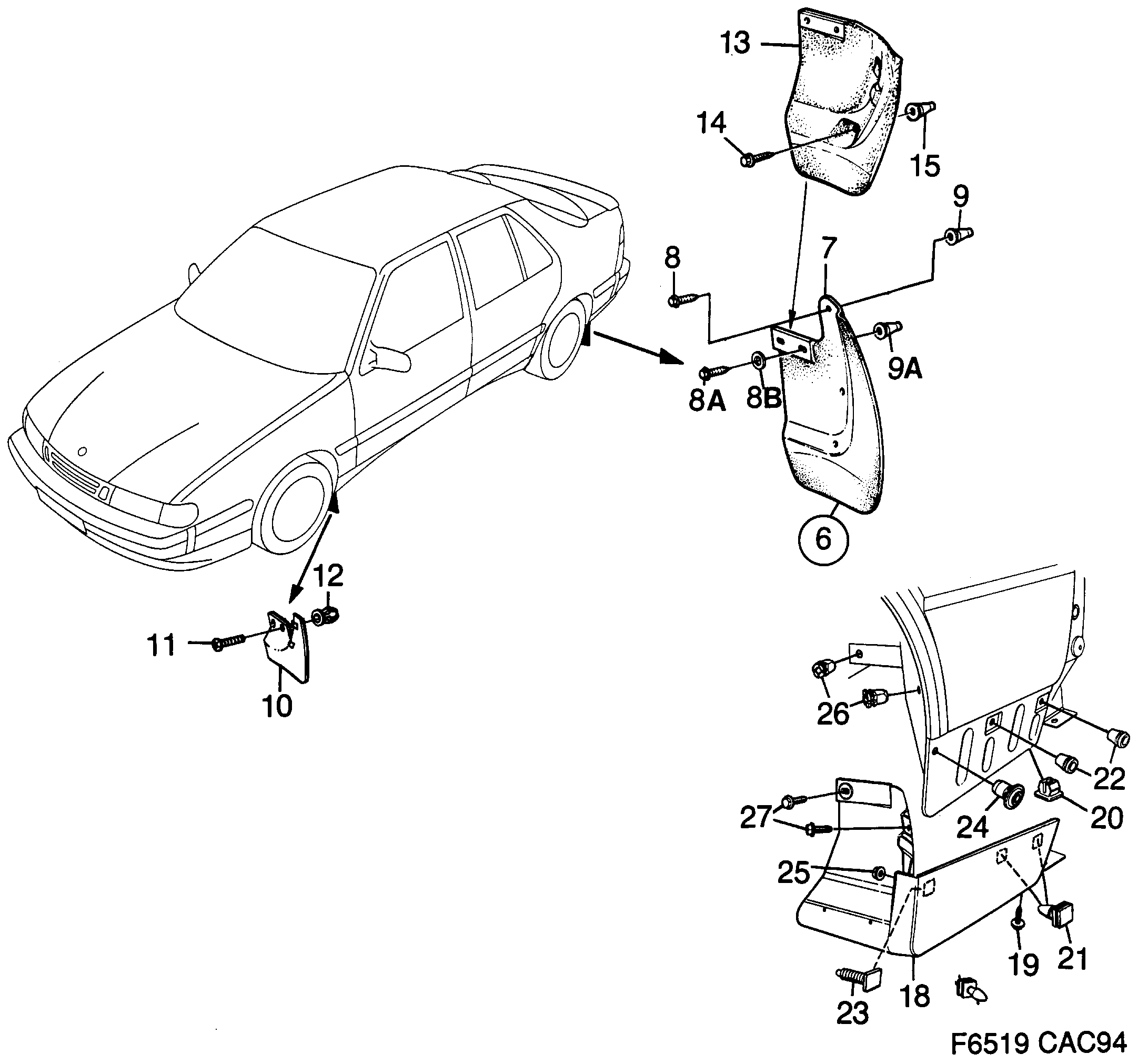

Group 8a Car body, external, section 1140
| Pos | Article | Part No. |
|---|---|---|
| 6 | Baffle | 8284341 |
| 6 | Baffle | 8284663 |
| 6 | Baffle | 8284655 |
| 7 | Baffle | 4099776 |
| 7 | Baffle | 4099768 |
| 8 | Screw | 92153216 (replaces 7982325) |
| 8B | Washer | 8273468 |
| 9 | Press nut | 7982655 |
| 9A | Nut | 9087040 |
| 10 | Baffle | 8284721 |
| 10 | Baffle | 8284747 |
| 10 | Baffle | 8284739 |
| 10 | Baffle | 4008959 |
| 10 | Baffle | 4008942 |
| 13 | Baffle | 6938914 |
| 13 | Baffle | 6938906 |
| 15 | Nut | 4008504 |
| 18 | Stone guard | 30538231 (replaces 4006136) |
| 18 | Stone guard | 30538230 (replaces 4006128) |
| 18 | Stone guard | 9082678 |
| 18 | Stone guard | 9082660 |
| 19 | Screw | 92151994 (replaces 7972953) |
| 20 | Nut | 4008504 (replaces 4005237) |
| 21 | Clip | 7373251 |
| 22 | Bushing | 7373269 |
| 23 | Screw | 6959464 |
| 24 | Bushing | 30521853 (replaces 9278151) |
| 25 | Nut | 7399488 |
| Stone guard kit | 8284556 | |
| Stone guard kit | 8284549 |
