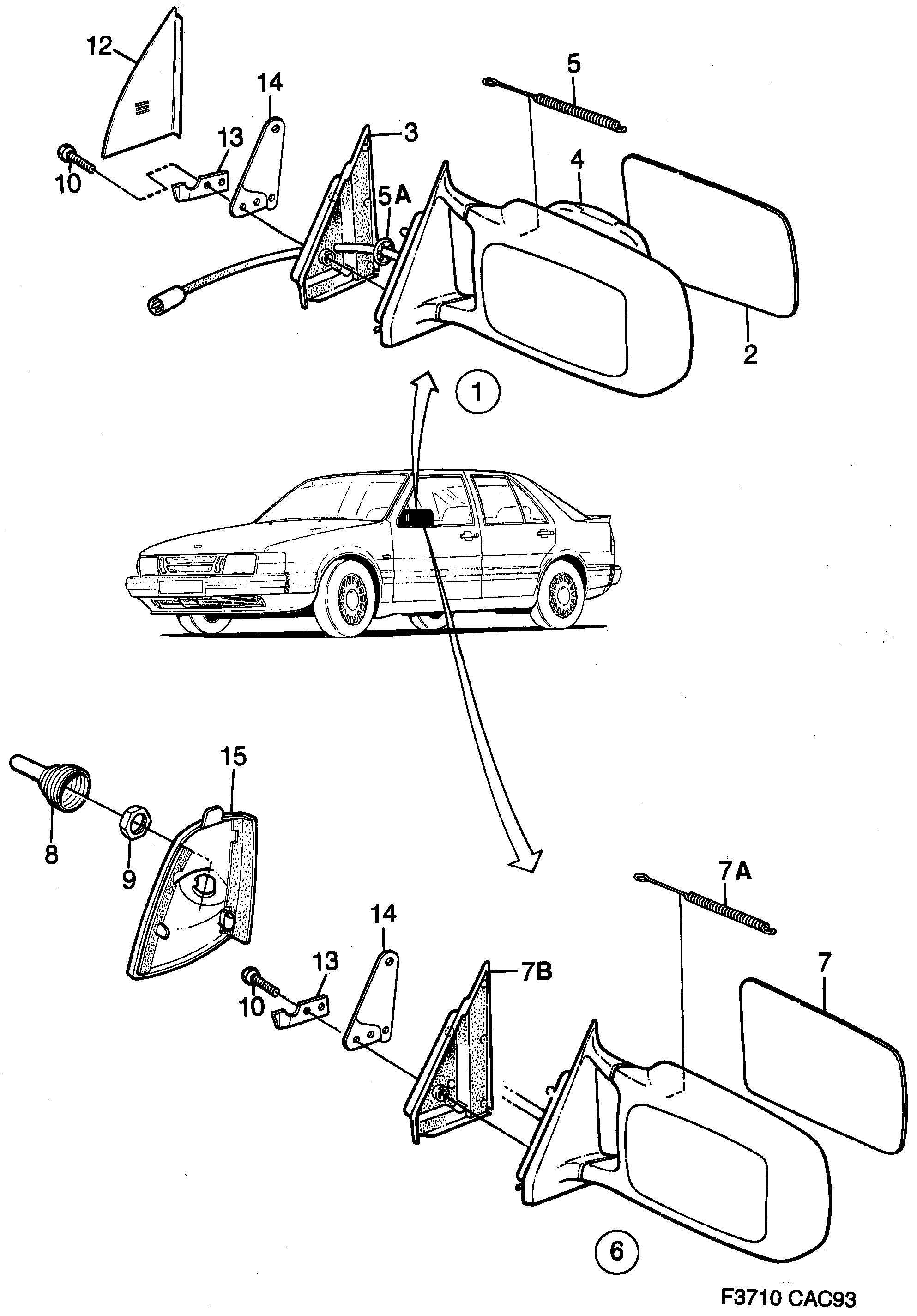

Group 8a Car body, external, section 1130
| Pos | Article | Part No. |
|---|---|---|
| 1 | Rear view mirror | 4684775 (replaces 9661307) |
| 1 | Rear view mirror | 4684734 (replaces 9661364) |
| 1 | Rear view mirror | 4684742 (replaces 9661323) |
| 1 | Rear view mirror | 9661380 |
| 1 | Rear view mirror | 9661331 |
| 1 | Rear view mirror | 4684809 (replaces 9661208) |
| 1 | Rear view mirror | 4684783 (replaces 9661240) |
| 1 | Rear view mirror | 9661216 |
| 1 | Rear view mirror | 9661257 |
| 1 | Rear view mirror | 4684791 (replaces 9661265) |
| 1 | Rear view mirror kit | 8547317 |
| 1 | Rear view mirror kit | 8547325 |
| 1 | Rear view mirror kit | 4368593 |
| 1 | Rear view mirror kit | 4368601 |
| 2 | Mirror glass | 4684866 (replaces 9797044) |
| 2 | Mirror glass | 4684825 (replaces 9797069) |
| 2 | Mirror glass | 4684833 (replaces 9797093) |
| 2 | Mirror glass | 4684858 (replaces 9797101) |
| 2 | Mirror glass | 9591868 |
| 2 | Mirror glass | 4684858 (replaces 9591660) |
| 2 | Mirror glass | 4684817 (replaces 9797051) |
| 2 | Mirror glass | 32000185 (replaces 9797077) |
| 2 | Mirror glass | 4684841 (replaces 9797119) |
| 3 | Gasket | 9661448 |
| 3 | Gasket | 9661455 |
| 4 | Drive unit | 9776584 |
| 5 | Spring | 9472580 |
| 5A | Lock washer | 4260568 |
| 6 | Mirror | 9678749 |
| 6 | Mirror | 9678764 |
| 6 | Mirror | 9591108 |
| 6 | Mirror | 9678798 |
| 6 | Mirror | 9678822 |
| 6 | Mirror | 9678756 |
| 6 | Mirror | 9678772 |
| 6 | Mirror | 9678780 |
| 6 | Mirror | 9678814 |
| 7 | Mirror glass | 9833559 |
| 7 | Mirror glass | 9833575 |
| 7 | Mirror glass | 9833591 |
| 7 | Mirror glass | 9837246 |
| 7 | Mirror glass | 9833518 |
| 7 | Mirror glass | 9833617 |
| 7B | Gasket | 9590423 |
| 7B | Gasket | 9590449 |
| 8 | Rubber bellows kit | 9678608 |
| 9 | Nut | 9678616 |
| 10 | Screw | 7977689 |
| 12 | Cover | 4268389 (replaces 9694704) |
| 12 | Cover | 4268397 (replaces 9694696) |
| 12 | Cover | 4268389 |
| 12 | Cover | 4268397 |
| 13 | Reinforcement | 9658972 |
| 13 | Reinforcement | 9658980 |
| 14 | Gasket | 9671926 |
| 14 | Gasket | 9671934 |
| 15 | Cover | 4268421 (replaces 9694720) |
| 15 | Cover | 9694712 |
| 15 | Cover | 4268421 |
| 15 | Cover | 4268439 |
| Cable harness kit | 8548109 | |
| Cable harness kit | 8548760 |
