Saab 9000 1990-1993 Front and centre floor

Group 8a Car body, external, section 110

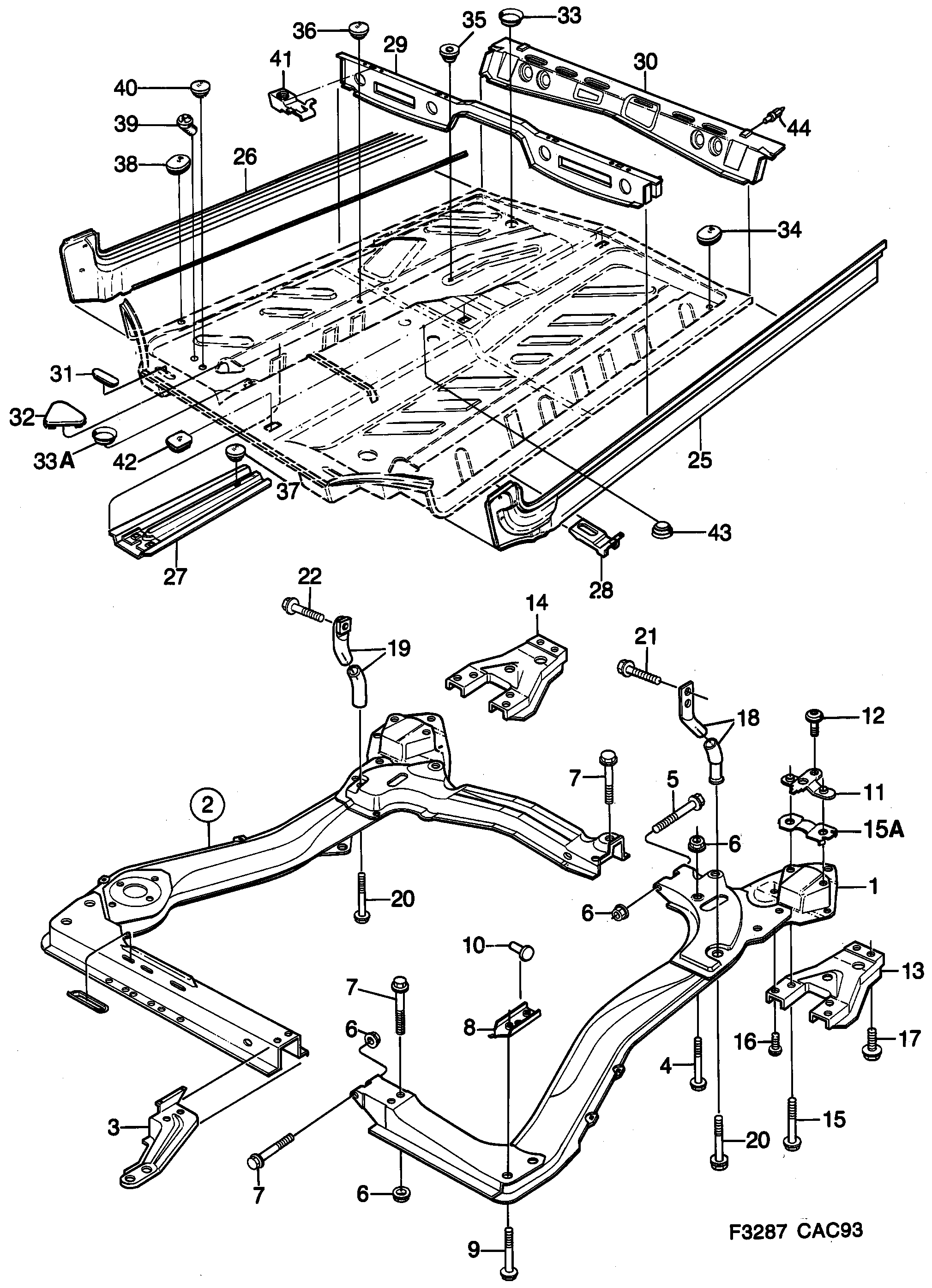

Saab 9000 Front and centre floor diagram

Pos	Article	Part No.
	Body	9265745
1	Frame	4645933 (replaces 8954935)
2	Frame	4426219 (replaces 8973737)
2	Frame	4426219 (replaces 4197356)
3	Bracket	8961948
4	Screw	7983141 (replaces 7973852)
4	Screw	7983141
5	Screw	7983158 (replaces 7972136)
5	Screw	7983158
6	Lock nut	7969306
7	Screw	7973571
7	Screw	7983133
8	Bracket	8961070
9	Screw	92151521 (replaces 7976913)
10	Plug	8961997
10	Rivet	9565417
11	Bracket	8961054
12	Screw	8966087
13	Reinforcement	8960247
14	Reinforcement	8960122
15	Screw	11588749 (replaces 7976921)
15	Screw	11588749 (replaces 7984008)
15	Screw	11588749
15A	Spacer	4195277
16	Screw	7923014
17	Screw	9292699
18	Stanchion	4103412
19	Stanchion	8961237
20	Screw	92151523 (replaces 92150035)
20	Screw	7974777
21	Screw	7973779
22	Screw	7969298
25	Sill	4100418 (replaces 9266172)
25	Sill	4100418
26	Sill	30540585 (replaces 9266164)
26	Sill	30540585 (replaces 4100400)
26	Sill	30540585 (replaces 4293767)
27	Beam	9266123
28	Jack support	9266156
28	Jack support	9266149
29	Beam	9266131
29	Beam	4101465
30	Beam	9266180
31	Cover	8962292
32	Cover	9267691
33	Cover	7313752
33A	Plug	4102901
34	Plug	9267899
35	Plug	4333563 (replaces 9267881)
36	Plug	9267808
36	Plug	7038342
37	Plug	9267923
38	Plug	9267907
39	Plug	9267998
40	Plug	9268178
41	Cage nut	7975766
42	Plug	9386509
44	Rivet nut	9130829 (replaces 7399454)
