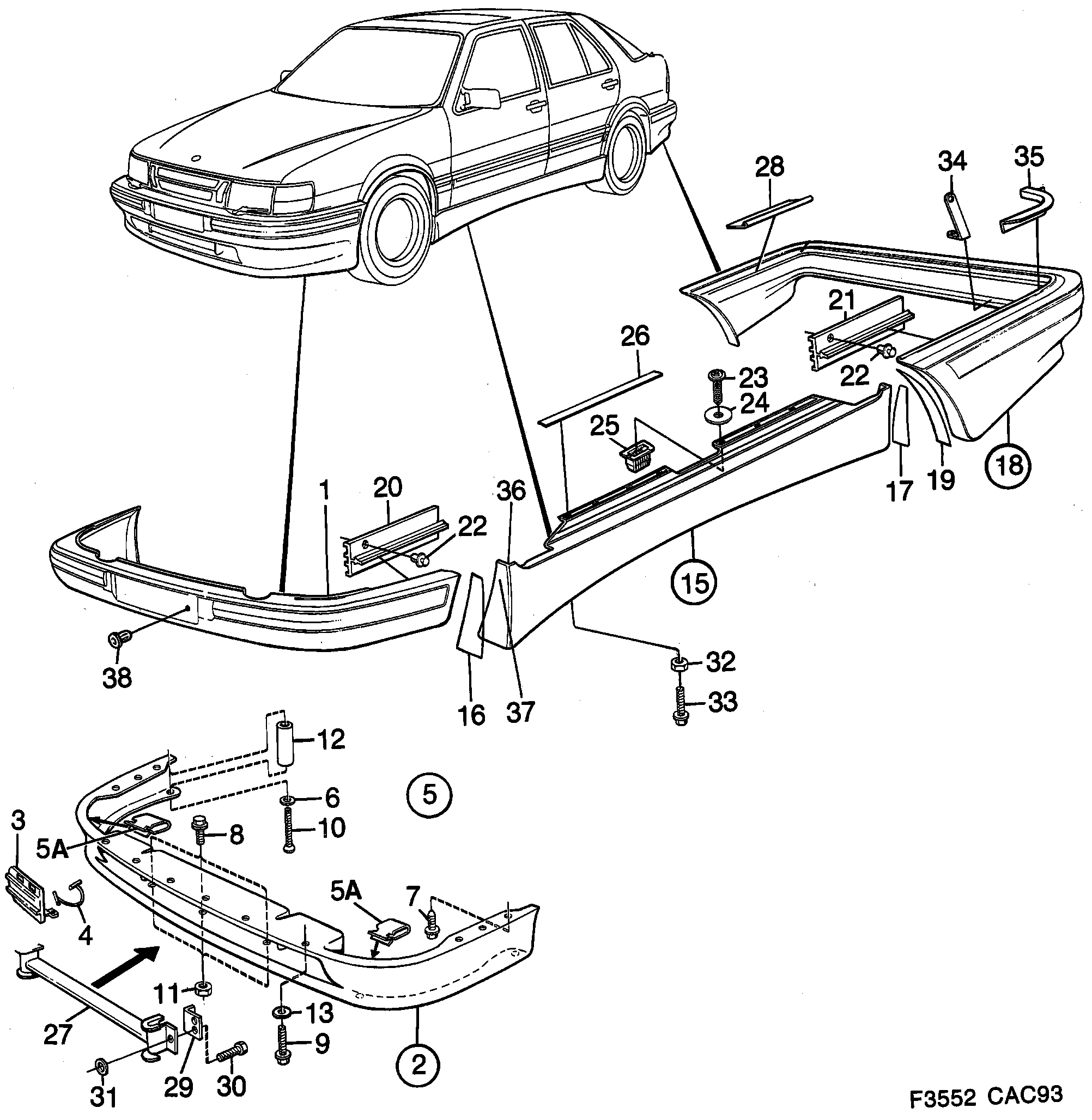

Group 8a Car body, external, section 1070
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 8670903 |
| 2 | Spoiler | 8670895 |
| 3 | Cover | 8670507 |
| 4 | Bracket | 6960926 |
| 5 | Mounting kit | 8667370 |
| 5A | Clamp | 4048401 |
| 6 | Washer | 7335540 |
| 7 | Screw | 92153149 (replaces 7973142) |
| 8 | Screw | 92151807 (replaces 7976988) |
| 9 | Screw | 8019564 |
| 10 | Screw | 8019648 |
| 11 | Nut | 8074098 |
| 12 | Spacer tube | 8670242 |
| 13 | Washer | 8670259 |
| 15 | Side shield | 8284804 |
| 15 | Side shield | 8284796 |
| 16 | Protective foil | 8666679 |
| 16 | Protective foil | 8666653 |
| 17 | Protective foil | 8666687 |
| 17 | Protective foil | 8666661 |
| 18 | Cover | 8284788 |
| 19 | Protective foil | 8667214 |
| 19 | Protective foil | 8667206 |
| 20 | Rail | 8671976 |
| 21 | Rail | 8670226 |
| 22 | Rivet | 8667479 |
| 23 | Screw | 8657975 |
| 24 | Washer | 8663494 |
| 25 | Clip | 9268616 |
| 26 | Cover moulding | 8670200 |
| 26 | Cover moulding | 8670218 |
| 27 | Cover | 8670309 |
| 28 | Seal | 8662603 |
| 29 | Bracket | 8668618 |
| 31 | Washer | 7060999 |
| 32 | Nut | 4008504 (replaces 4005237) |
| 33 | Screw | 92153149 (replaces 7977465) |
| 34 | Brace | 8670515 |
| 35 | Bracket | 8670275 |
| 35 | Bracket | 8670267 |
| 36 | Protection | 8670531 |
| 36 | Protection | 8670523 |
| 38 | Nut | 9087040 |
