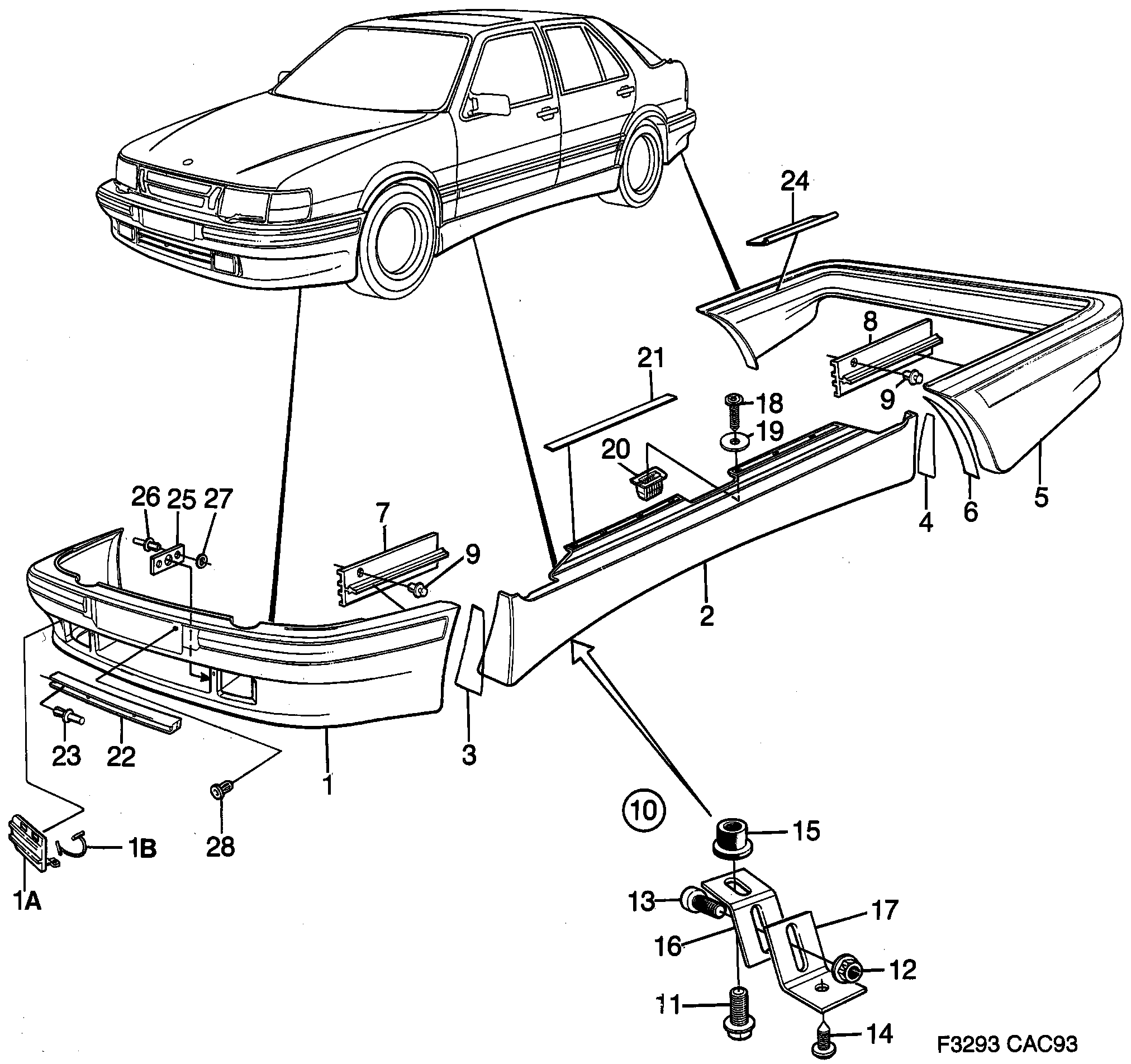

Group 8a Car body, external, section 1040
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spoiler | 8667578 |
| 1A | Cover | 8667602 |
| 1B | Bracket | 6960926 |
| 2 | Side shield | 8284614 |
| 2 | Side shield | 8284606 |
| 3 | Protective foil | 8662827 |
| 3 | Protective foil | 8662819 |
| 4 | Protective foil | 8662843 |
| 4 | Protective foil | 8662835 |
| 5 | Cover | 8284622 |
| 6 | Protective foil | 8662967 |
| 6 | Protective foil | 8662959 |
| 7 | Rail | 8671976 (replaces 8663296) |
| 8 | Rail | 8662595 |
| 9 | Rivet | 8667479 |
| 10 | Mounting kit | 8284333 |
| 11 | Screw | 7973779 |
| 12 | Nut | 92153044 (replaces 7974298) |
| 13 | Screw | 7975196 |
| 14 | Screw | 8657777 |
| 15 | Plug | 8660607 |
| 16 | Bracket | 8660615 |
| 17 | Bracket | 8660623 |
| 18 | Screw | 8657975 |
| 19 | Washer | 8663494 |
| 20 | Clip | 9268616 |
| 21 | Cover moulding | 8662470 |
| 22 | Grille | 8662538 |
| 23 | Clip | 8667495 |
| 24 | Seal | 8662603 |
| 25 | Bracket | 8668618 |
| 27 | Washer | 7060999 |
| 28 | Nut | 9087040 |
