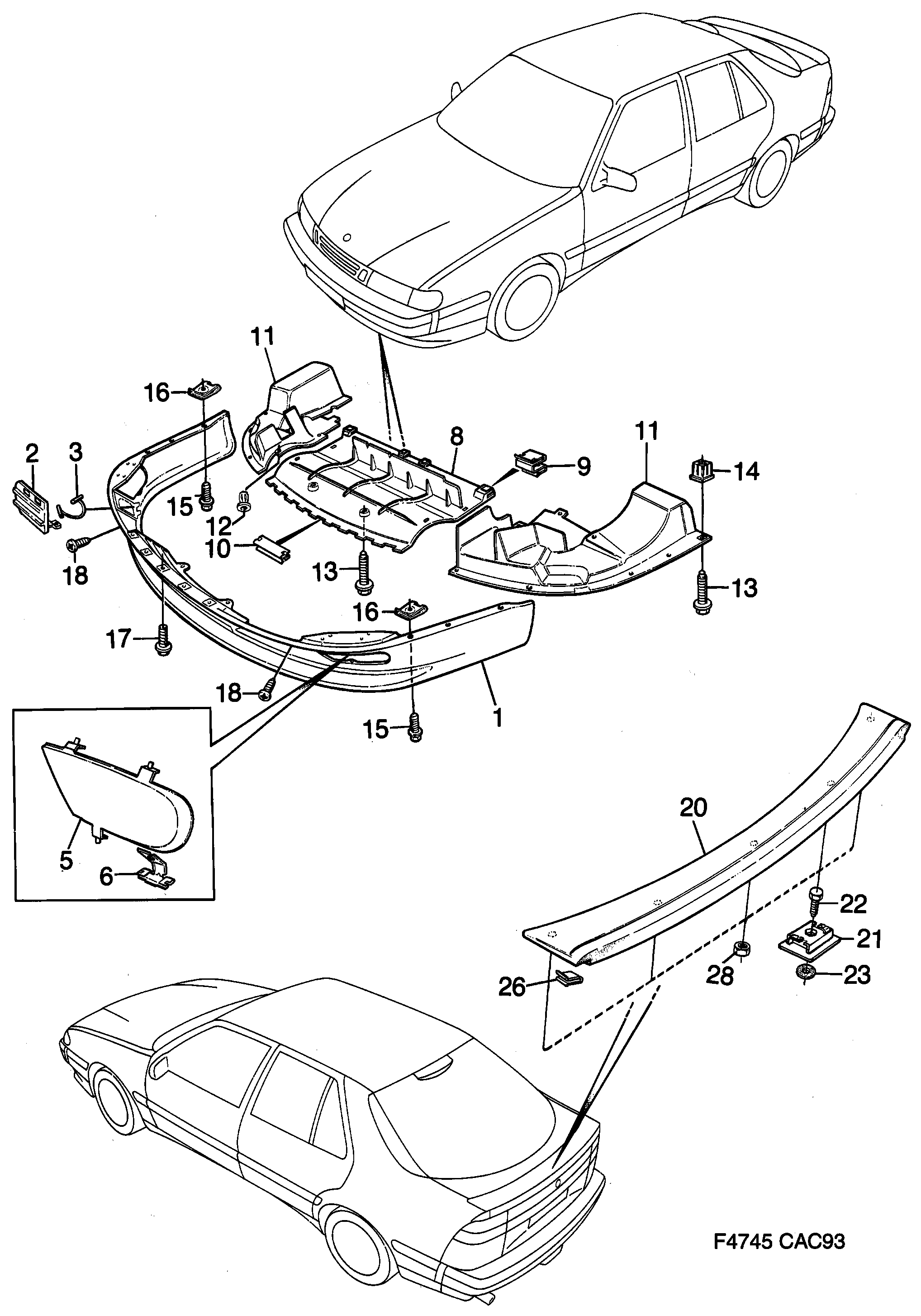

Group 8a Car body, external, section 1010
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spoiler | 9082843 |
| 1 | Spoiler | 4091062 |
| 2 | Cover | 9085986 |
| 2 | Cover | 4090858 |
| 3 | Bracket | 6960926 |
| 5 | Cover | 4090056 |
| 5 | Cover | 4090049 |
| 5 | Cover | 4090890 |
| 5 | Cover | 4090882 |
| 6 | Clip | 4340964 |
| 8 | Air shield | 9084211 |
| 9 | Clamp | 9265331 |
| 10 | Clip | 30543254 (replaces 4294369) |
| 11 | Air shield | 30550322 (replaces 9086174) |
| 11 | Air shield | 9086166 |
| 12 | Nut | 9087040 |
| 13 | Screw | 92153216 (replaces 7982325) |
| 14 | Press nut | 7982655 |
| 15 | Screw | 7973134 |
| 16 | Clip | 7977523 |
| 17 | Screw | 92151807 (replaces 7976988) |
| 18 | Screw | 92153219 (replaces 7970601) |
| 20 | Spoiler | 4093704 |
| 20 | Spoiler | 4344826 |
| 20 | Spoiler | 8285314 |
| 20 | Spoiler | 8285322 |
| 21 | Retainer | 4320016 |
| 22 | Screw | 8267205 |
| 23 | Sealing washer | 4435442 |
| 26 | Clip | 4343174 |
| 28 | Nut | 11900451 (replaces 7977929) |
| Mounting kit | 4009502 |
