Saab 9000 1985-1989 Front and centre floor

Group 8a Car body, external, section 100

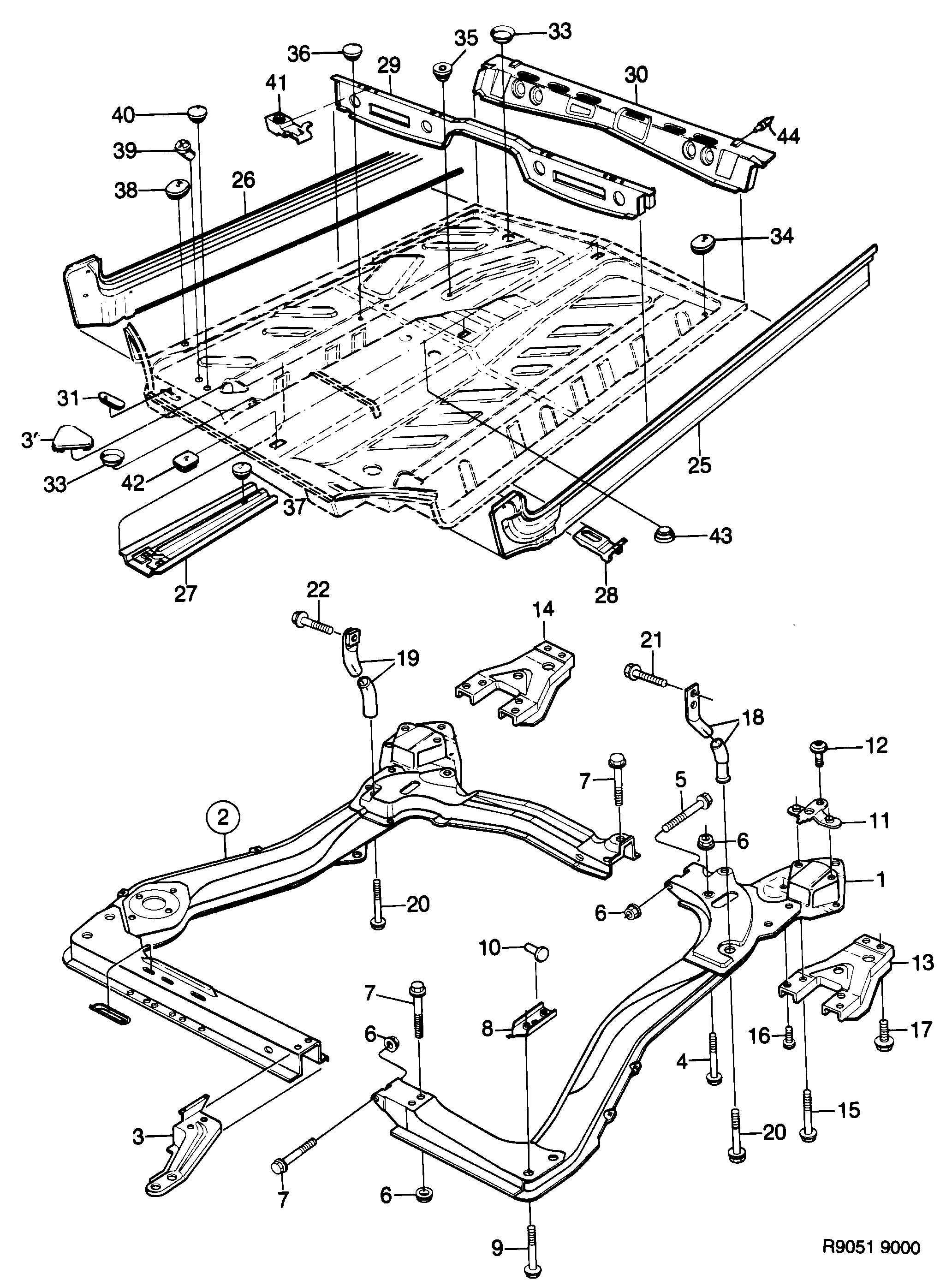

Saab 9000 Front and centre floor diagram

Pos	Article	Part No.
	Body	9265745
1	Frame	4645933 (replaces 8954935)
2	Frame	8954943
3	Bracket	8961948
4	Screw	7983141 (replaces 7973852)
5	Screw	7983158 (replaces 7972136)
6	Lock nut	7969306
7	Screw	7973571
8	Bracket	8961070
9	Screw	92151521 (replaces 7976913)
10	Plug	8961997
11	Bracket	8961054
12	Screw	8966087
13	Reinforcement	8960247
14	Reinforcement	8960122
15	Screw	11588749 (replaces 7976921)
16	Screw	7923014
17	Screw	9292699
18	Stanchion	8961344
19	Stanchion	8961237
20	Screw	7974777
21	Screw	7973779
22	Screw	7969298
25	Sill	4100418 (replaces 9266172)
26	Sill	30540585 (replaces 9266164)
27	Beam	9266123
28	Jack support	9266156
28	Jack support	9266149
29	Beam	9266131
30	Beam	9266180
31	Cover	8962292
32	Cover	9267691
33	Cover	7313752
34	Plug	9267899
35	Plug	4333563 (replaces 9267881)
36	Plug	9267808
37	Plug	9267923
38	Plug	9267907
39	Plug	9267998
40	Plug	9268178
41	Cage nut	7975766
42	Plug	9386509
44	Rivet nut	9130829 (replaces 7399454)
