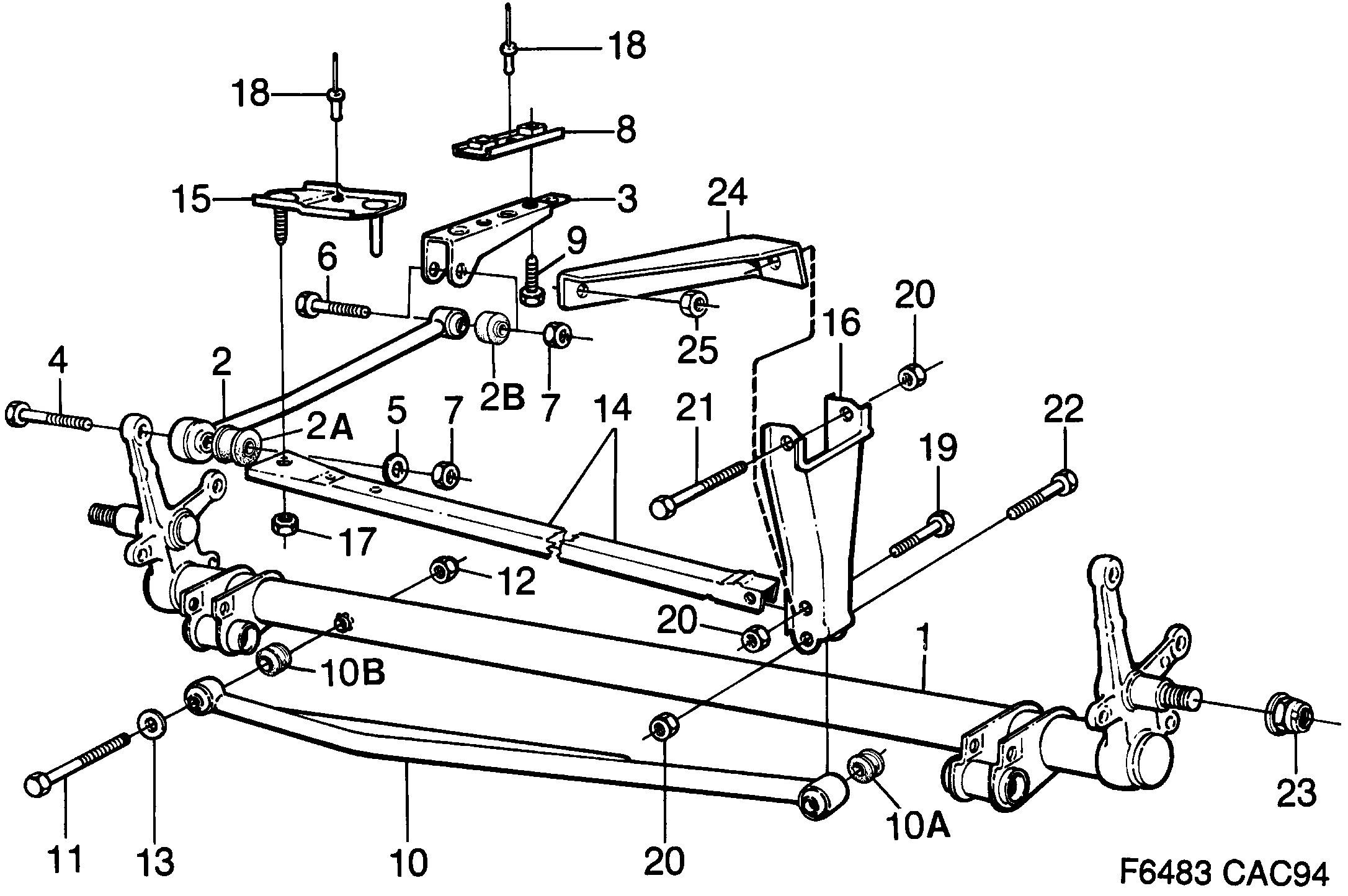

Group 7 Suspension system, section 270
| Pos | Article | Part No. |
|---|---|---|
| 1 | Rear axle | 8957706 |
| 2 | Brace | 8952046 |
| 2A | Bushing | 8955759 |
| 2B | Bushing | 8956468 |
| 3 | Bracket | 8951915 |
| 4 | Screw | 7979586 (replaces 7979487) |
| 5 | Washer | 8952277 |
| 6 | Screw | 30509382 (replaces 7982002) |
| 7 | Lock nut | 92153199 (replaces 8151474) |
| 8 | Nut piece | 8958514 |
| 9 | Screw | 11900016 (replaces 7976897) |
| 10 | Brace | 8957722 |
| 10A | Bushing | 8952558 |
| 10B | Bushing | 8957532 |
| 11 | Screw | 7982069 |
| 12 | Lock nut | 8151482 |
| 13 | Washer | 92153204 (replaces 7916521) |
| 14 | Brace | 8968471 |
| 15 | Washer | 8958746 |
| 16 | Bracket | 8958613 |
| 17 | Flange lock nut | 92153201 (replaces 7977820) |
| 18 | Rivet | 7961642 |
| 18 | Pop rivet | 7972474 |
| 19 | Screw | 7982085 |
| 21 | Screw | 7982093 |
| 23 | Lock nut | 8965360 |
| 24 | Bracket | 8968505 |
| 25 | Nut | 92150143 (replaces 7971922) |
