Saab 9000 1990-1993 Rear axle

Group 7 Suspension system, section 260

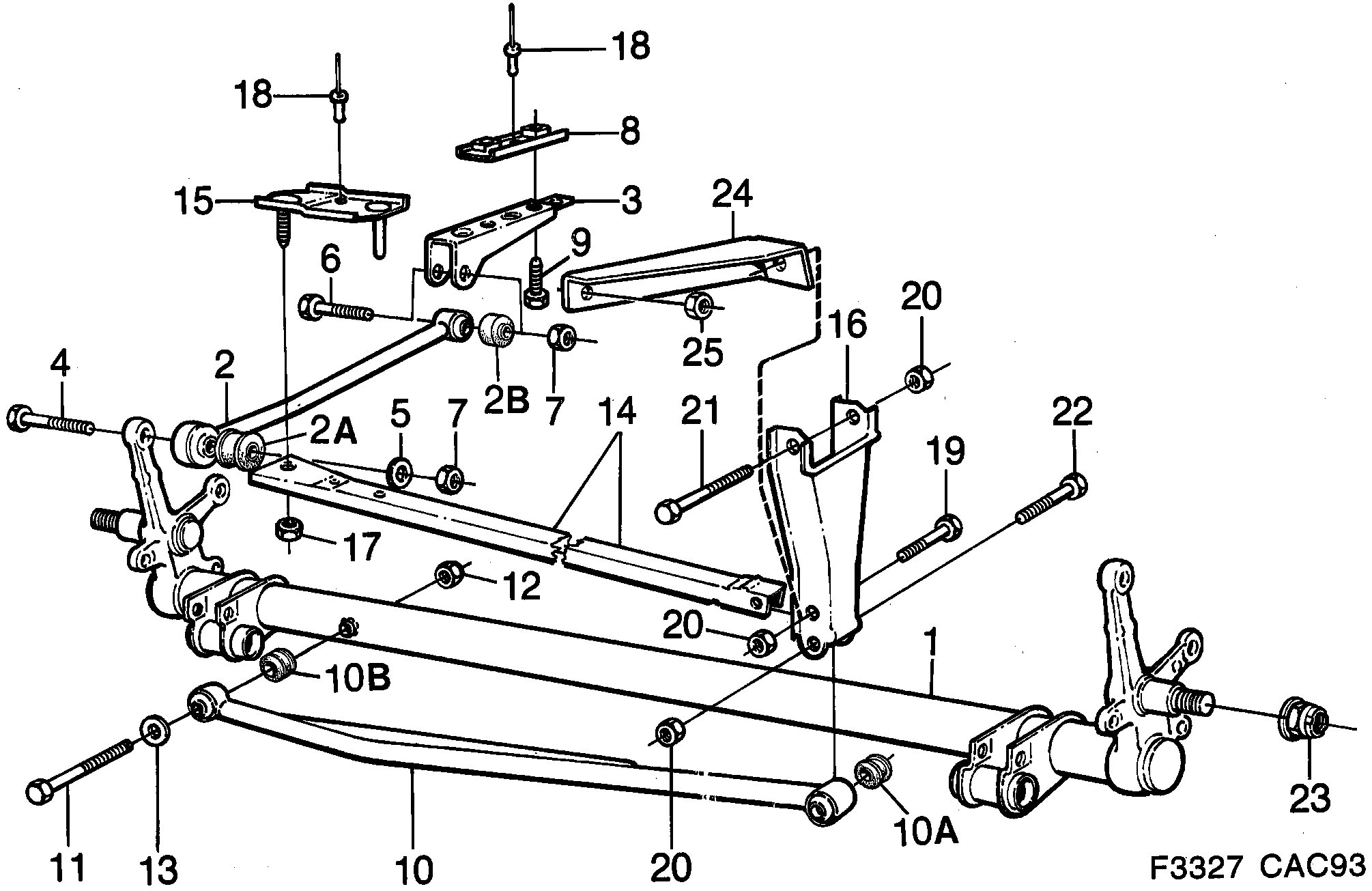

Saab 9000 Rear axle diagram

Pos	Article	Part No.
1	Rear axle	8963050
1	Rear axle	8957706
2	Brace	8952046
2A	Bushing	8955759
2B	Bushing	8956468
3	Bracket	8951915
4	Screw	7979586 (replaces 7979487)
5	Washer	8952277
6	Screw	30509382 (replaces 7982002)
7	Lock nut	92153199 (replaces 8151474)
8	Nut piece	8958514
9	Screw	11900016 (replaces 7976897)
10	Brace	8957722 (replaces 8973000)
10	Brace	8957722
10A	Bushing	8952558 (replaces 8972648)
10A	Bushing	8952558
10B	Bushing	8957532 (replaces 8972655)
10B	Bushing	8957532
11	Screw	7982069
12	Lock nut	8151482
13	Washer	92153204 (replaces 7916521)
14	Brace	8968471
15	Washer	8958746
16	Bracket	8958613
18	Rivet	7961642
19	Screw	7982085
21	Screw	7982093
23	Lock nut	8965360
24	Bracket	8968505
25	Nut	92150143 (replaces 7971922)
