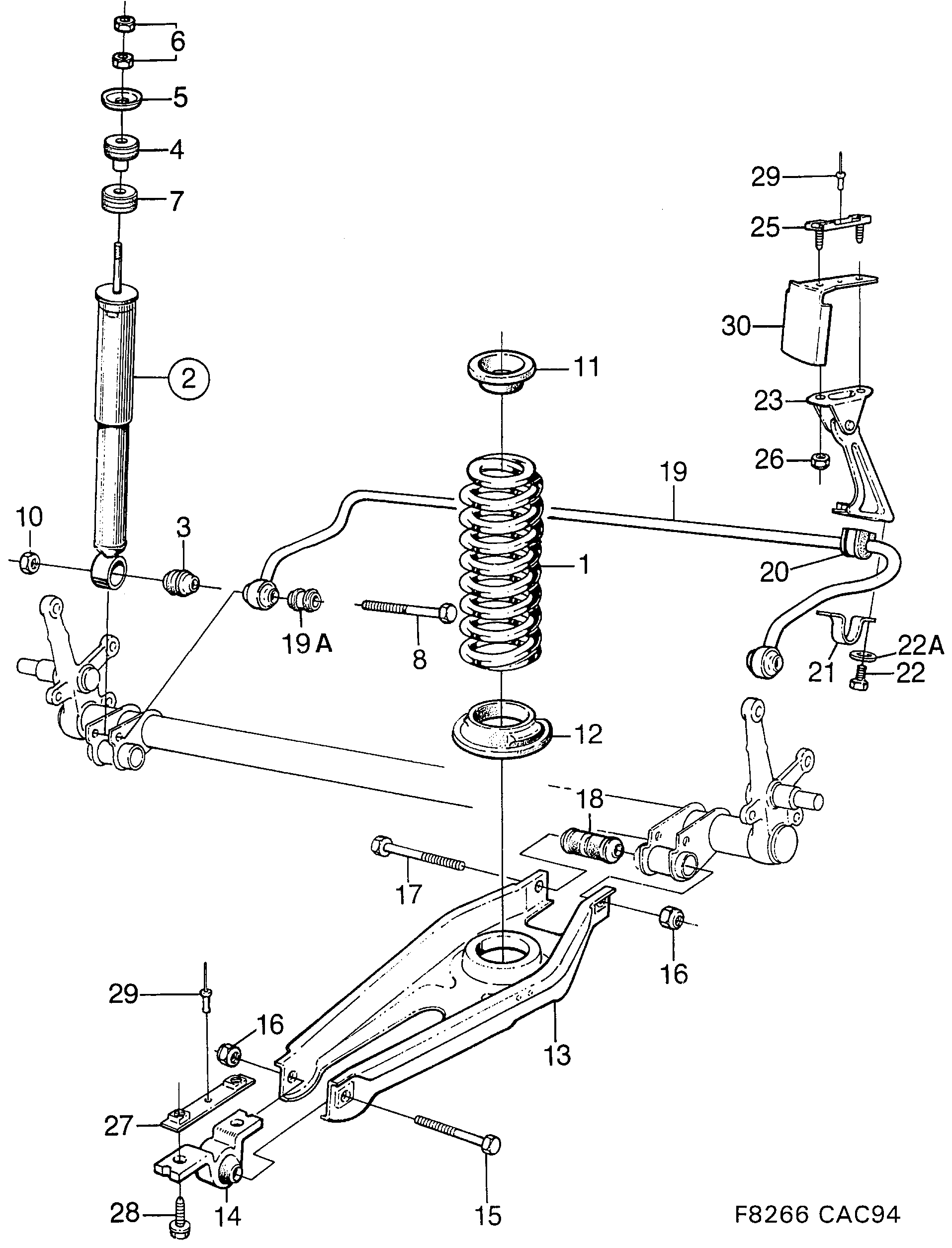

Group 7 Suspension system, section 240
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring | 4193561 |
| 1 | Spring | 4193603 |
| 1 | Spring | 4193611 |
| 1 | Spring | 4193629 |
| 1 | Spring | 4193637 |
| 2 | Shock absorber kit | 4645008 |
| 2 | Shock absorber kit | 4645016 |
| 2 | Shock absorber kit | 4647095 |
| 3 | Bearing bushing | 8952749 |
| 4 | Rubber bushing | 4197422 |
| 5 | Washer | 8959934 |
| 6 | Nut | 30509371 (replaces 7979511) |
| 7 | Rubber bushing | 4106266 |
| 8 | Hexagon screw | 7985054 |
| 10 | Lock nut | 8151482 |
| 11 | Spring insulator | 30519187 (replaces 8952285) |
| 12 | Spring insulator | 8950438 |
| 13 | Spring link | 8970782 |
| 14 | Bearing anchorage | 8957714 |
| 15 | Screw | 7982028 |
| 16 | Lock nut | 92153199 (replaces 8151474) |
| 17 | Screw | 7982036 |
| 18 | Bushing | 8951063 |
| 19 | Stabilizer bar | 93169245 (replaces 4105730) |
| 19 | Stabilizer bar | 8961765 |
| 19A | Bearing bushing | 8952749 (replaces 8962011) |
| 20 | Rubber bushing | 4425583 |
| 20 | Rubber bushing | 4425575 |
| 21 | Brace | 8952137 |
| 22 | Screw | 11900016 (replaces 7976897) |
| 22A | Washer | 8380982 |
| 23 | Link | 4193132 |
| 23 | Link | 4193140 |
| 25 | Attaching plate | 8961625 |
| 26 | Nut | 92150143 (replaces 7971922) |
| 27 | Nut piece | 30519311 (replaces 8958498) |
| 28 | Screw | 7976905 |
| 29 | Rivet | 7961642 |
| 30 | Protecting plate | 8969214 |
