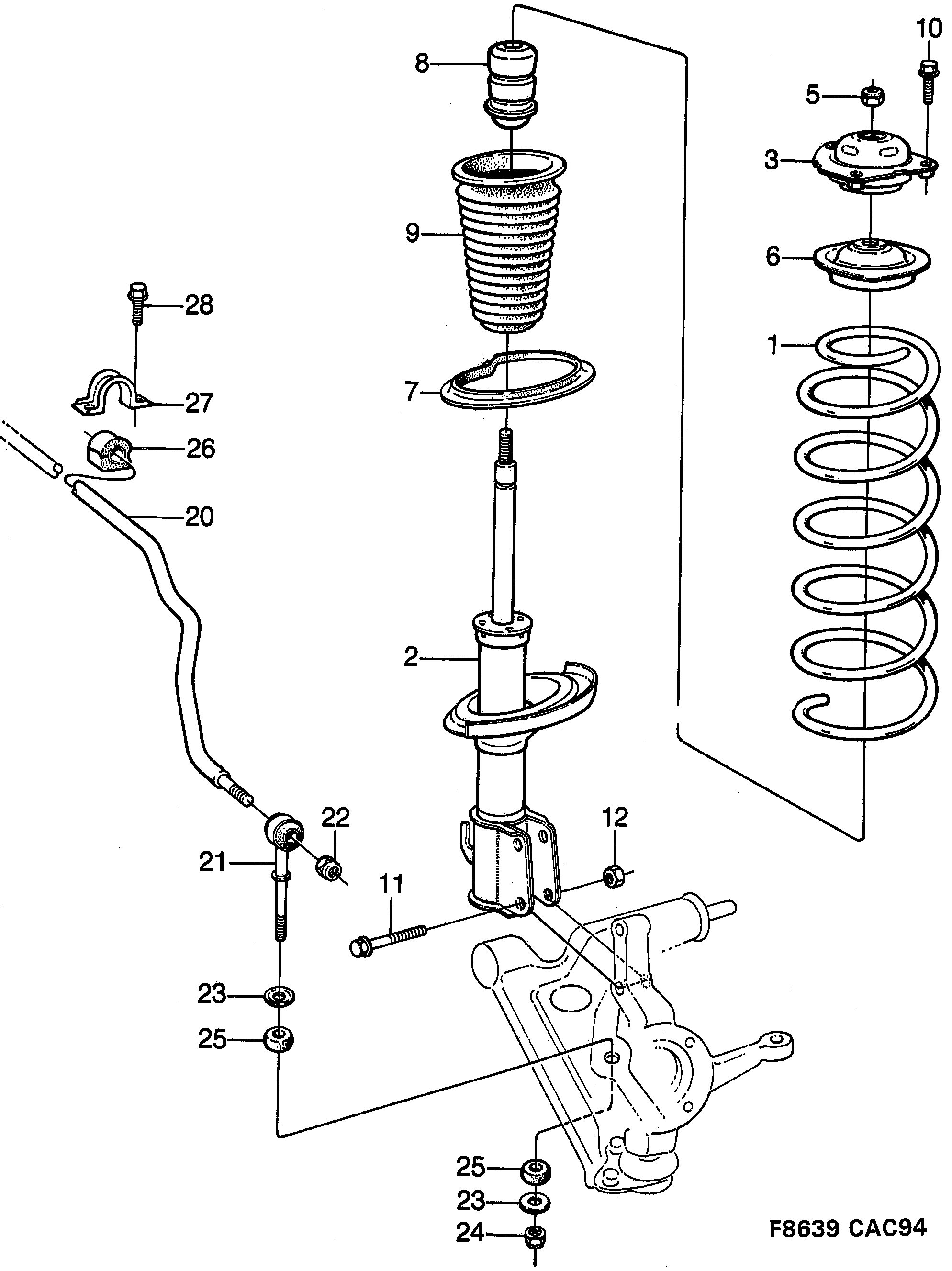

Group 7 Suspension system, section 120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring | 4193389 |
| 1 | Spring | 4193397 |
| 1 | Spring | 4193405 |
| 1 | Spring | 4193413 |
| 1 | Spring | 4193421 |
| 1 | Spring | 4646717 (replaces 4193454) |
| 1 | Spring | 4193462 |
| 1 | Spring | 4646717 |
| 1 | Spring | 4646725 |
| 1 | Spring | 4544870 |
| 1 | Spring | 4544888 |
| 1 | Spring | 4426730 |
| 1 | Spring | 4544896 |
| 2 | Spring strut | 4199899 (replaces 4001640) |
| 2 | Spring strut | 4199899 (replaces 4543781) |
| 2 | Spring strut | 4199899 (replaces 4195061) |
| 2 | Spring strut | 4543799 |
| 2 | Spring strut | 4199899 (replaces 4194338) |
| 2 | Spring strut | 4199899 (replaces 4646758) |
| 3 | Support bearing | 4106969 |
| 5 | Lock nut | 7979537 |
| 6 | Spring seat | 8968067 |
| 7 | Spacer | 4195327 |
| 8 | Buffer | 8972002 |
| 9 | Bellows | 8958084 |
| 10 | Screw | 7984511 |
| 11 | Screw | 8966129 |
| 12 | Nut | 92153201 (replaces 7979552) |
| 20 | Stabilizer bar | 8968984 |
| 21 | Link | 8958944 |
| 22 | Nut | 7979578 |
| 23 | Washer | 8960171 |
| 24 | Lock nut | 92153199 (replaces 8151474) |
| 25 | Block | 8953986 |
| 26 | Bushing | 8968992 |
| 27 | Cap | 8954000 |
| 28 | Screw | 7399330 |
