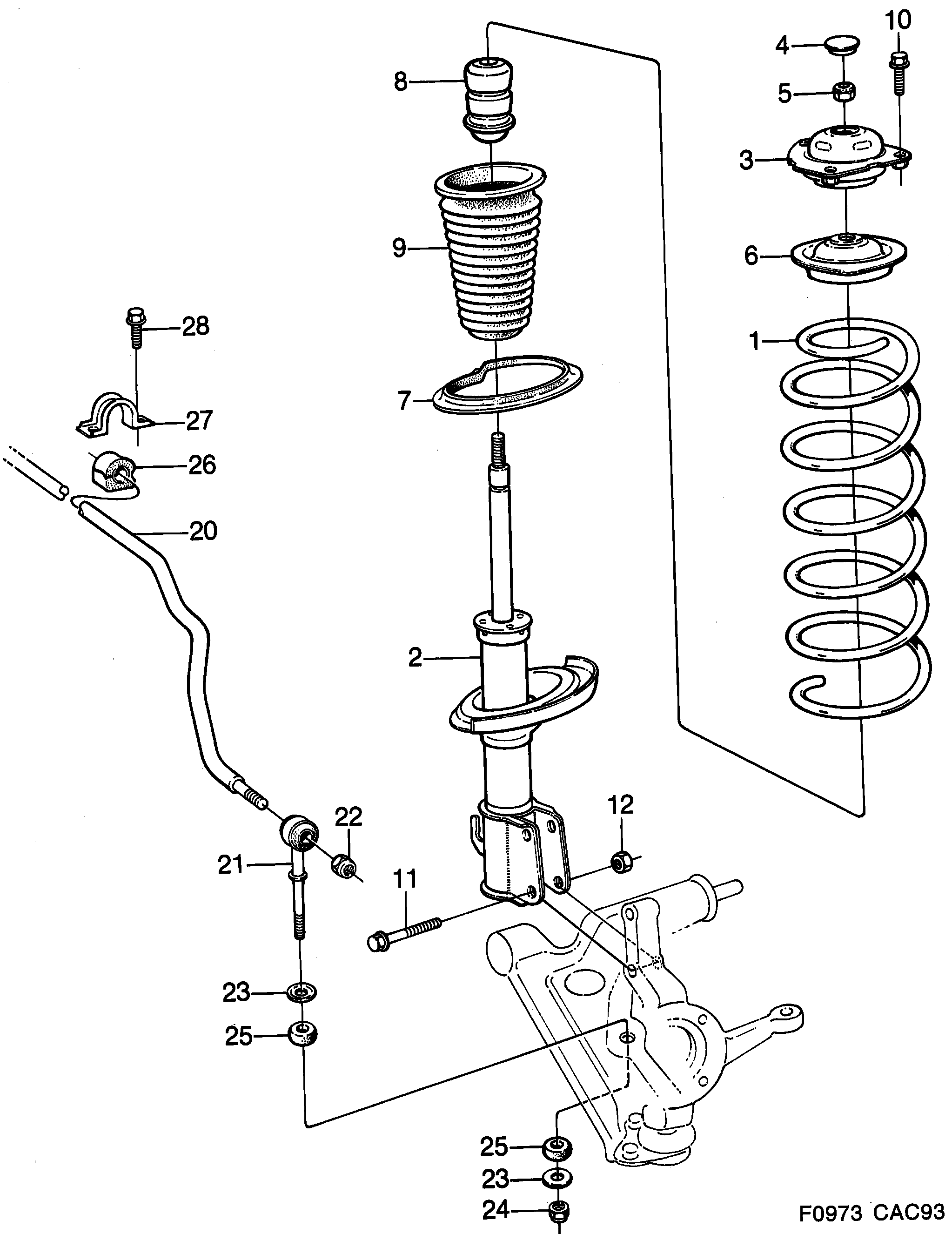

Group 7 Suspension system, section 110
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring | 8971814 |
| 1 | Spring | 4193389 (replaces 8971822) |
| 1 | Spring | 8971806 |
| 1 | Spring | 8971830 |
| 1 | Spring | 4193413 (replaces 8971848) |
| 1 | Spring | 4646717 (replaces 8971863) |
| 1 | Spring | 4646717 (replaces 4107652) |
| 1 | Spring | 4193421 |
| 1 | Spring | 4193439 |
| 2 | Spring strut | 4199899 (replaces 8967861) |
| 2 | Spring strut | 4199899 (replaces 4004537) |
| 2 | Spring strut | 4199899 (replaces 8971780) |
| 2 | Spring strut | 4199899 (replaces 4004545) |
| 2 | Spring strut | 4199899 (replaces 8967846) |
| 2 | Spring strut | 4199899 (replaces 4004552) |
| 2 | Spring strut | 4107603 |
| 3 | Support bearing | 4106969 (replaces 8963282) |
| 3 | Support bearing | 4106969 |
| 4 | Protecting casing | 8964207 |
| 5 | Lock nut | 7979537 |
| 6 | Spring seat | 8968067 |
| 7 | Spring seat | 8957102 |
| 8 | Buffer | 32000304 (replaces 8968521) |
| 8 | Buffer | 8972002 |
| 9 | Bellows | 8958084 |
| 10 | Screw | 7984511 (replaces 7978711) |
| 10 | Screw | 32000291 (replaces 7982994) |
| 11 | Screw | 8966129 |
| 12 | Nut | 92153201 (replaces 7971765) |
| 20 | Stabilizer bar | 8962144 |
| 20 | Stabilizer bar | 8968984 |
| 21 | Link | 8958944 |
| 22 | Nut | 7979578 |
| 23 | Washer | 8960171 |
| 24 | Lock nut | 92153199 (replaces 8151474) |
| 25 | Block | 8953986 |
| 26 | Bushing | 8965378 |
| 26 | Bushing | 8968992 |
| 27 | Cap | 8954000 |
| 28 | Screw | 7399330 |
