Saab 9000 1990-1993 Front end Steering device

Group 6 Front wheel suspension, section 380

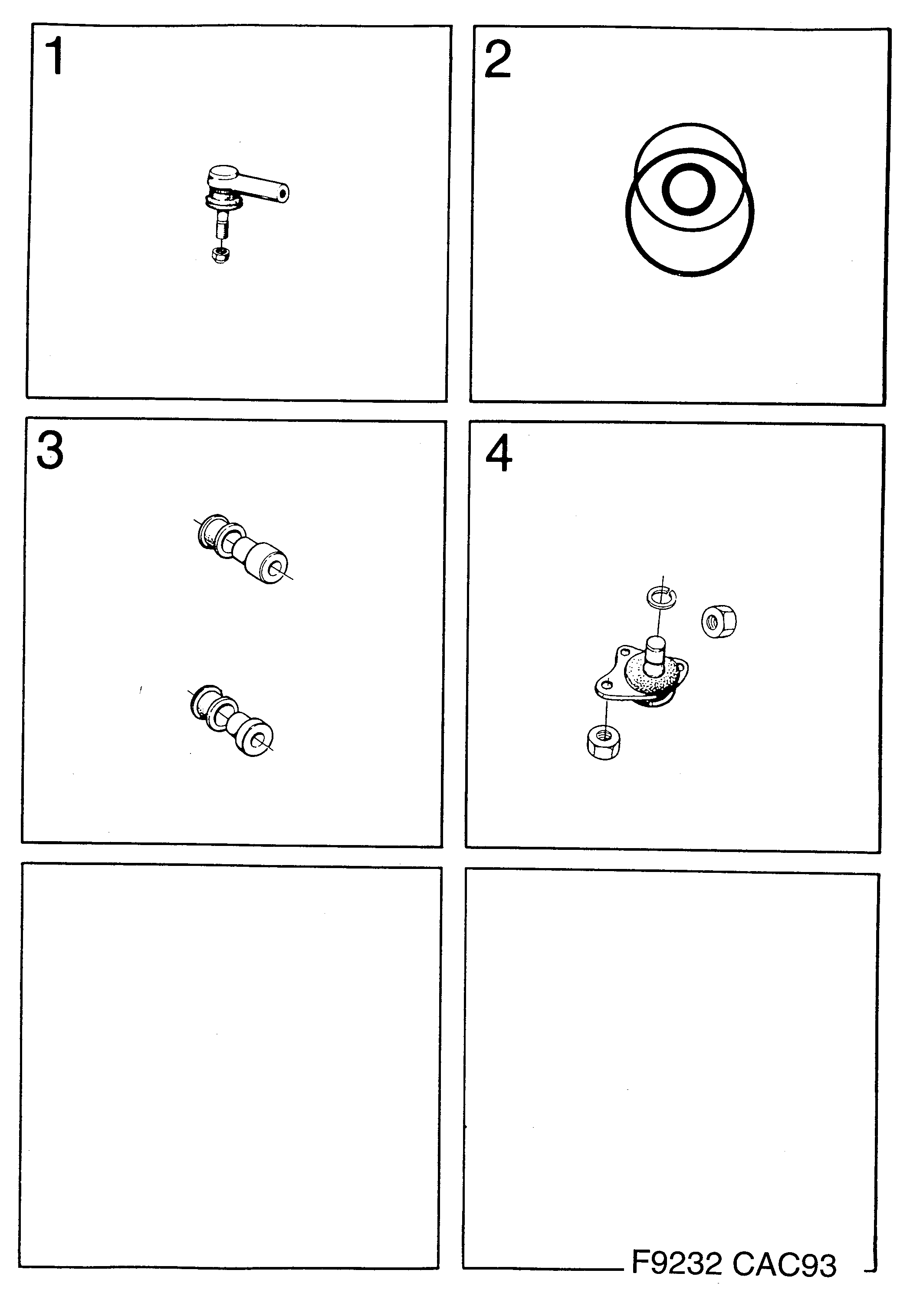

Saab 9000 Front end Steering device diagram
PosArticlePart No.
1Drag link end8993453
Drag link end8957839
Lock nut8151482
2Gasket kit8989857
2Sealing kit4104766
O-ring4104709
O-ring4104717
O-ring4104725
O-ring4104733
Seal5336441
3Bushing kit4901476 (replaces 4029989)
Bushing4028197
Bushing4901401 (replaces 4028080)
Bushing4028205
4Ball joint kit8994212
Lock ring7963168
Nut11066386 (replaces 7975501)
Nut7977309
Ball joint8972135
