Saab 9000 1985-1989 Belt tensioner 115 A alternator

Group 6 Front wheel suspension, section 310

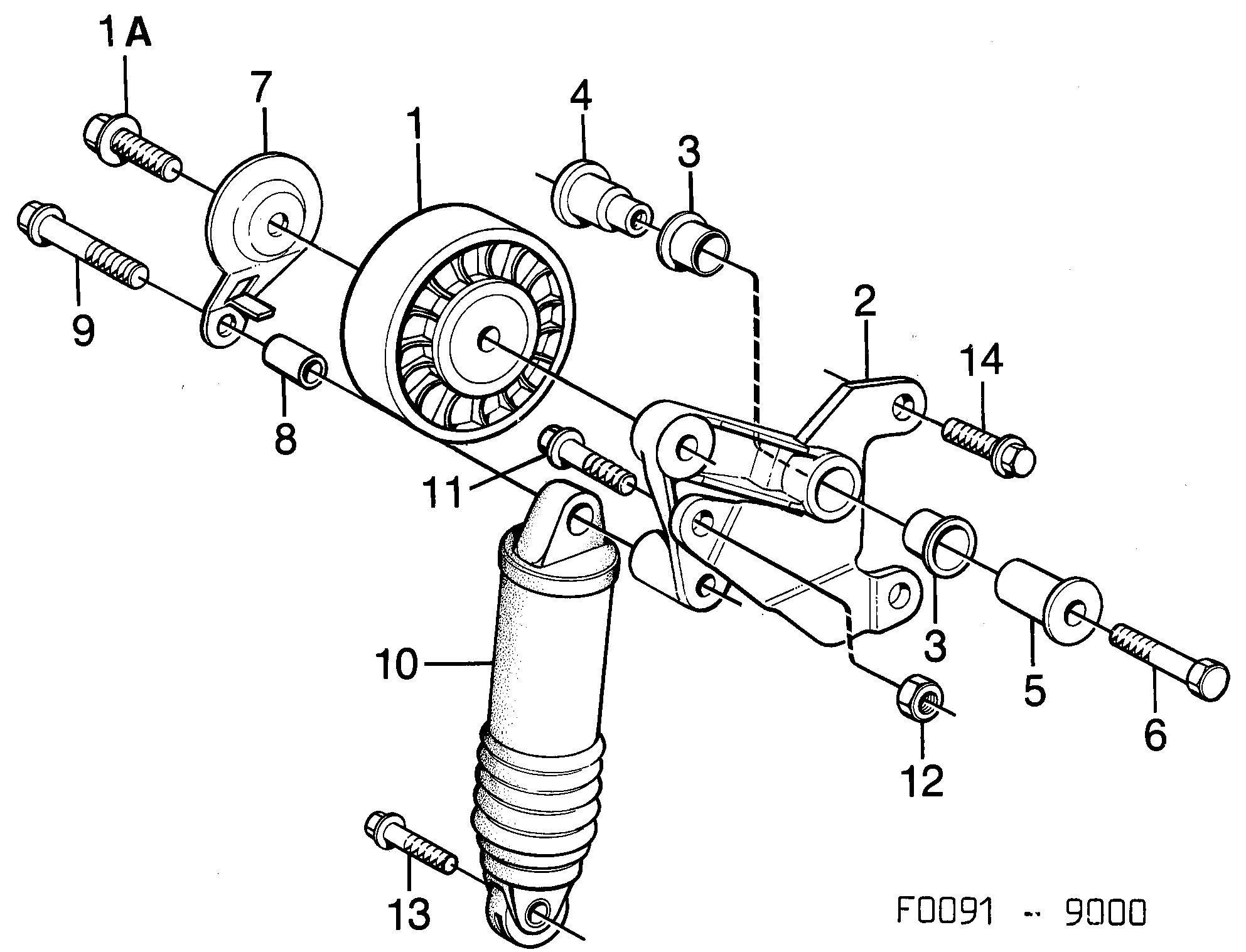

Saab 9000 Belt tensioner 115 A alternator diagram
PosArticlePart No.
1Tension pulley4901625 (replaces 7592017)
1AScrew7972748
2Tensioner7593429
3Bushing7599806
4Bearing7599814
5Bearing7599822
6Screw9346354
7Brace7596612
8Bushing4283032 (replaces 7593387)
8Bushing4283032
9Screw11900368 (replaces 7975527)
10Spring unit7593395
11Screw7972292
12Nut8074106
13Screw11900368 (replaces 7972342)
