Saab 9000 1985-1989 Belt tensioner

Group 6 Front wheel suspension, section 280

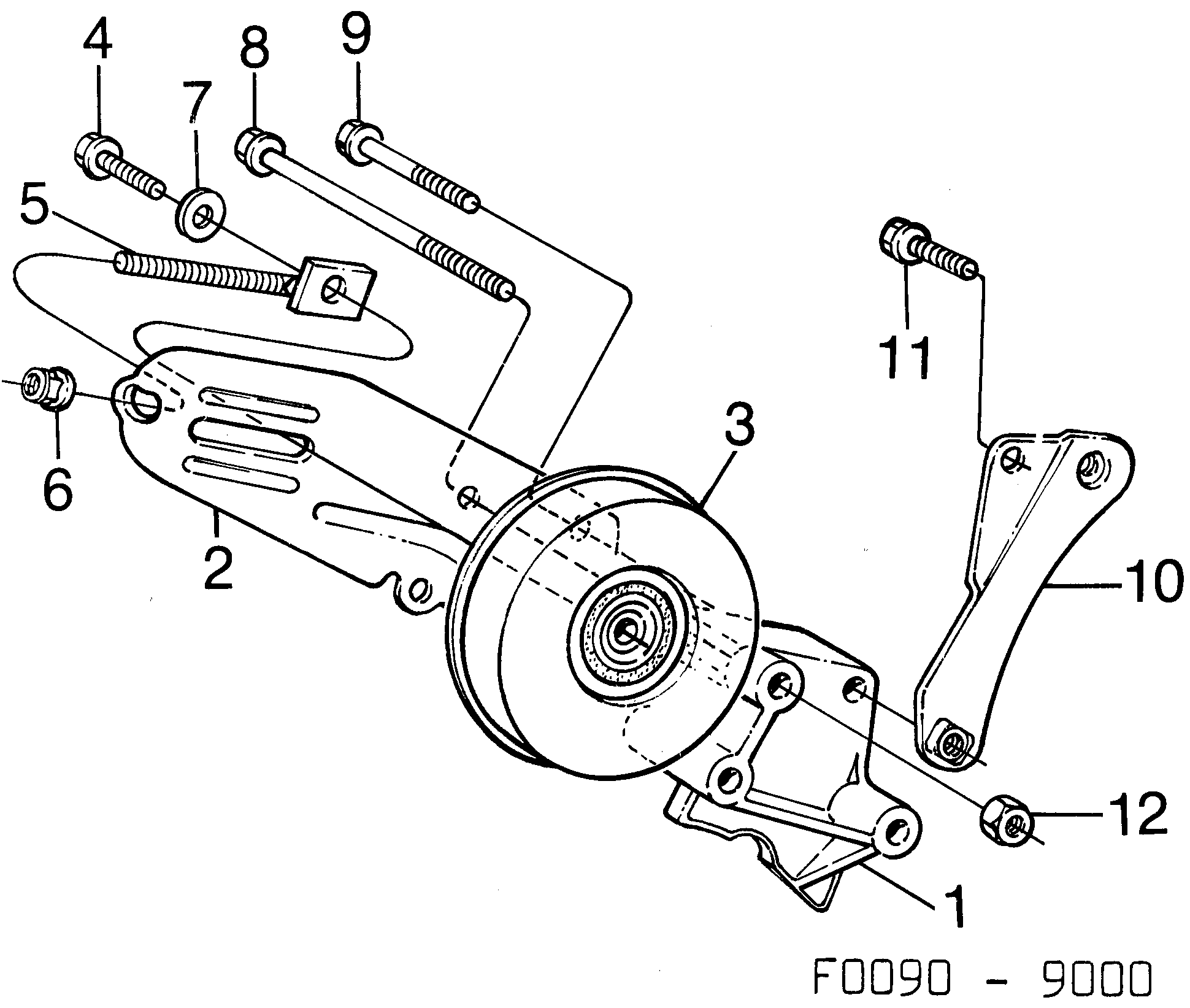

Saab 9000 Belt tensioner diagram

Pos	Article	Part No.
1	Base	7576242 (replaces 7551245)
1	Base	7576242
2	Tensioner	9382003
2	Tensioner	7575871
3	Tension pulley	32000432 (replaces 7554223)
3	Tension pulley	7596679 (replaces 7579840)
3	Tension pulley	7598634
4	Screw	7970288
4	Hexagon screw	7985898
5	Screw	9382268
5	Screw	7575889
6	Nut	92150143 (replaces 7971922)
7	Washer	92153033 (replaces 8029985)
8	Screw	9386533
9	Screw	7972292
10	Brace	9386210
11	Screw	55562121 (replaces 7967938)
12	Nut	8074106
12	Nut	8151235
