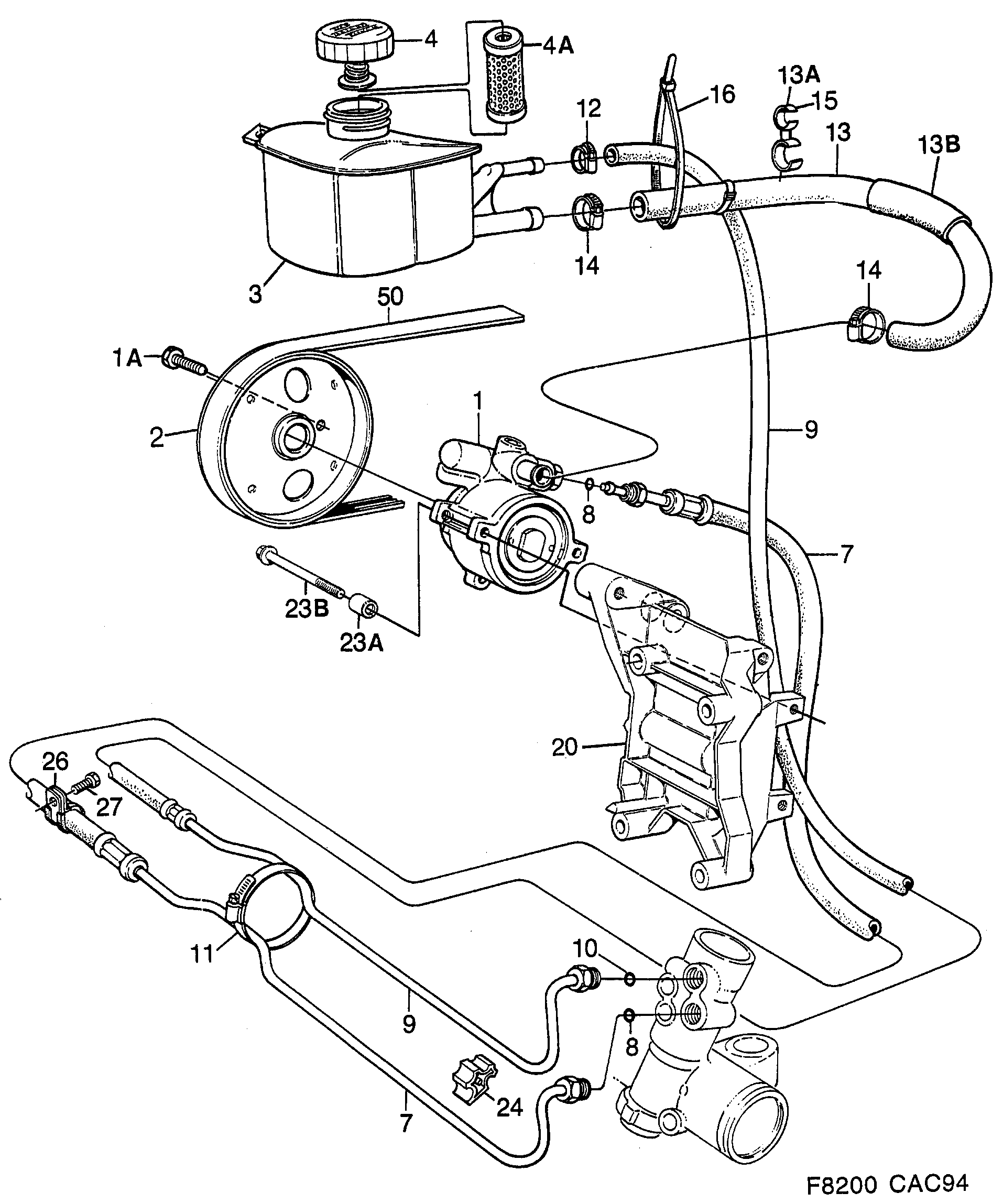

Group 6 Front wheel suspension, section 270
| Pos | Article | Part No. |
|---|---|---|
| 1 | Pump, hydraulic oil | 4647426 (replaces 4105037) |
| 1 | Pump, hydraulic oil | 4647426 |
| 1 | Pump, hydraulic oil | 4196226 |
| 1 | Pump, hydraulic oil | 4647418 |
| 1A | Screw | 90470712 (replaces 8741449) |
| 2 | Pulley | 4528717 (replaces 7573694) |
| 2 | Pulley | 4528717 |
| 2 | Pulley | 90409788 (replaces 4165171) |
| 3 | Reservoir | 4192993 |
| 3 | Reservoir | 4424800 |
| 4 | Cover | 4193900 |
| 4A | Filter cartridge | 4193199 |
| 7 | Hose | 5170485 |
| 7 | Hose | 4196242 |
| 7 | Hose | 5170493 |
| 7 | Hose | 4425104 |
| 8 | O-ring | 4104048 |
| 8 | O-ring | 7977580 |
| 9 | Hose | 4190179 |
| 9 | Hose | 4196036 |
| 9 | Hose | 4190187 |
| 9 | Hose | 4196010 |
| 11 | Hose clamp | 92153077 (replaces 7970130) |
| 11 | Hose clamp | 92153079 (replaces 7970148) |
| 11 | Hose clamp | 7970122 |
| 12 | Hose clamp | 7970049 |
| 13 | Hose | 4190120 |
| 13 | Hose | 4425120 |
| 13 | Hose | 4544748 |
| 13A | Clamp | 4194379 |
| 13B | Wear protection | 4424602 |
| 14 | Hose clamp | 7970072 |
| 15 | Clamp | 7398530 |
| 16 | Tie strap | 7971898 |
| 23B | Screw | 7978349 |
| 23B | Hexagon screw | 11900376 (replaces 7982523) |
| 24 | Spacer bushing | 4001681 |
| 26 | Clamp | 7969488 |
| 26 | Clamp | 7969363 |
| 27 | Screw | 7922438 |
| 27 | Screw | 7972466 |
| Sealing kit | 4104766 | |
| Sealing kit | 4649745 | |
| Sealing kit | 32000169 (replaces 4402780) |
