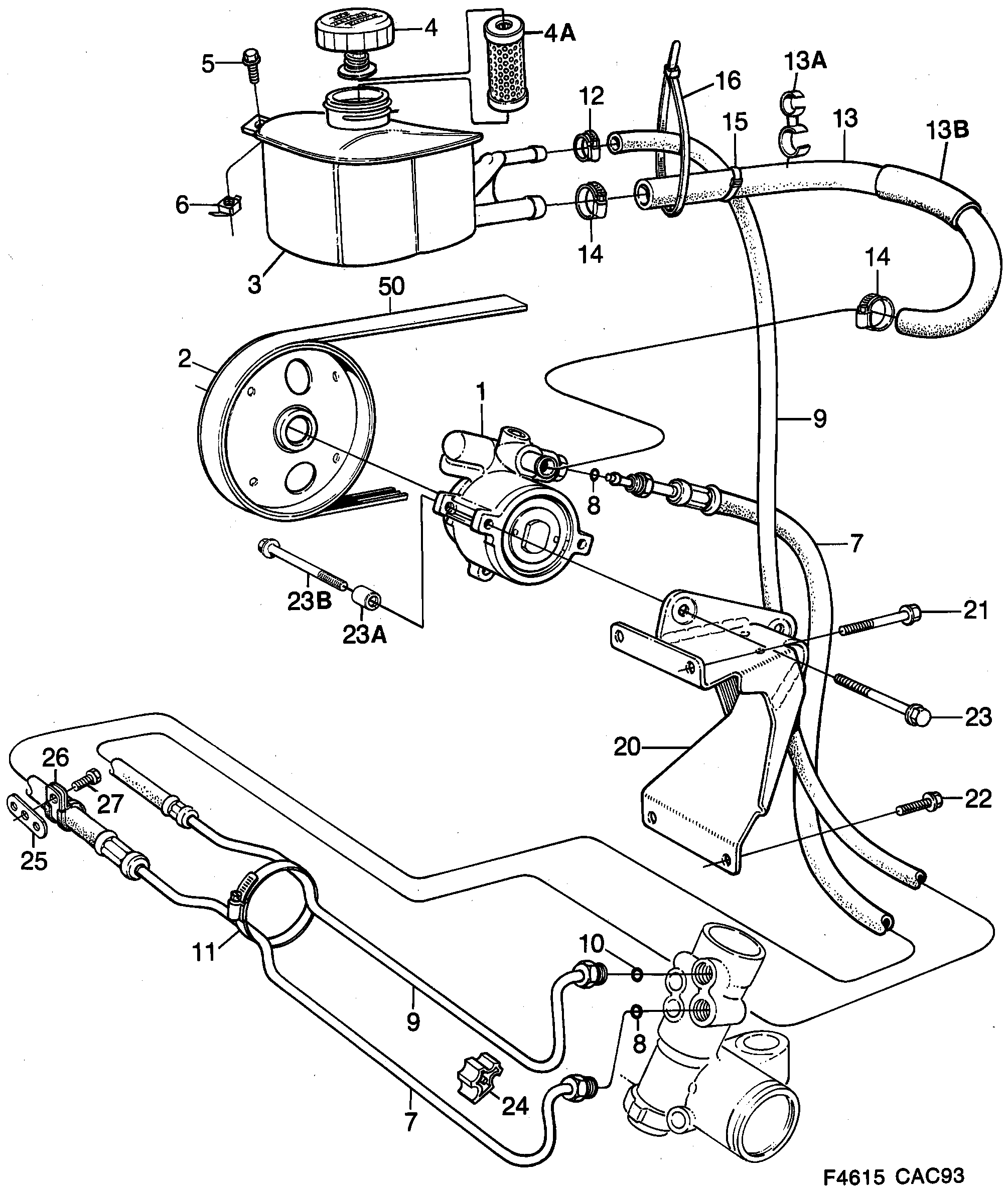

Group 6 Front wheel suspension, section 260
| Pos | Article | Part No. |
|---|---|---|
| 1 | Pump, hydraulic oil | 8972770 |
| 1 | Pump, hydraulic oil | 4105045 |
| 1 | Pump, hydraulic oil | 4647426 (replaces 8972424) |
| 1 | Pump, hydraulic oil | 4647426 (replaces 4105037) |
| 2 | Pulley | 93183540 |
| 2 | Pulley | 4528717 (replaces 7573694) |
| 3 | Reservoir | 8971004 |
| 3 | Reservoir | 4192993 |
| 4 | Cover | 4197380 |
| 4 | Cover | 4193900 |
| 4A | Filter cartridge | 4193199 |
| 5 | Screw | 7978133 (replaces 7977432) |
| 6 | Nut | 7975006 |
| 7 | Hose | 8972416 |
| 7 | Hose | 5170485 |
| 7 | Hose | 8972945 |
| 7 | Hose | 5170493 |
| 8 | O-ring | 4104048 (replaces 8937500) |
| 8 | O-ring | 4104048 |
| 9 | Hose | 8959090 |
| 9 | Hose | 4190195 |
| 9 | Hose | 8971434 |
| 9 | Hose | 4190179 |
| 9 | Hose | 8963357 |
| 9 | Hose | 4190187 |
| 10 | O-ring | 7977580 |
| 11 | Hose clamp | 92153077 (replaces 7970130) |
| 11 | Hose clamp | 7970122 |
| 12 | Hose clamp | 7970049 (replaces 7963507) |
| 12 | Hose clamp | 7970049 |
| 13 | Hose | 8959116 |
| 13 | Hose | 4190138 |
| 13 | Hose | 4001673 |
| 13 | Hose | 4190120 |
| 13A | Clamp | 4194379 |
| 13B | Wear protection | 4424602 |
| 14 | Hose clamp | 7970072 (replaces 7963531) |
| 14 | Hose clamp | 7970072 |
| 15 | Clamp | 7398373 |
| 16 | Tie strap | 7971898 |
| 20 | Bracket | 7550361 |
| 20 | Bracket | 7593452 |
| 21 | Screw | 7551641 |
| 22 | Screw | 55562121 (replaces 7967938) |
| 23 | Screw | 7973787 |
| 23 | Screw | 7973795 |
| 23B | Screw | 7978349 |
| 24 | Spacer bushing | 4001681 |
| 25 | Washer | 4001699 |
| 26 | Clamp | 7969488 |
| 27 | Screw | 7922438 |
| Gasket kit | 8989857 | |
| Sealing kit | 4104766 |
