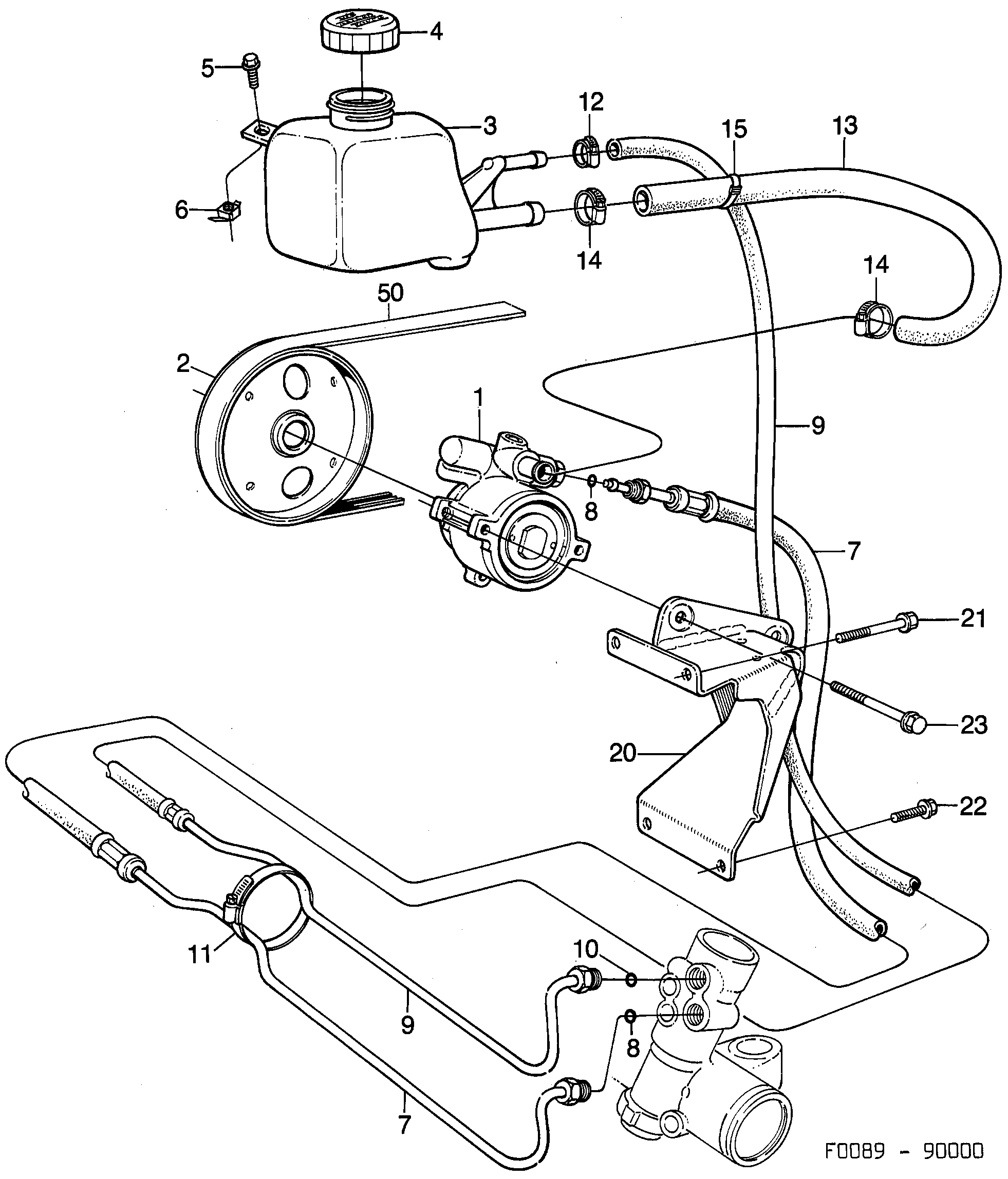

Group 6 Front wheel suspension, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Pump, hydraulic oil | 4647426 (replaces 8963993) |
| 1 | Pump, hydraulic oil | 4105045 |
| 1 | Pump, hydraulic oil | 8972770 |
| 1 | Pump, hydraulic oil | 4647426 (replaces 8972424) |
| 2 | Pulley | 8956914 |
| 2 | Pulley | 93183540 |
| 3 | Reservoir | 8965832 |
| 4 | Cover | 4197380 (replaces 8956385) |
| 5 | Screw | 7978133 (replaces 7977432) |
| 6 | Nut | 7975006 |
| 7 | Hose | 8959033 |
| 7 | Hose | 8972416 |
| 7 | Hose | 8963308 |
| 7 | Hose | 8972945 |
| 8 | O-ring | 4104048 (replaces 8937500) |
| 9 | Hose | 8959090 |
| 9 | Hose | 8963357 |
| 11 | Hose clamp | 92153077 (replaces 7970130) |
| 11 | Hose clamp | 7970122 |
| 12 | Hose clamp | 7970049 (replaces 7963507) |
| 13 | Hose | 8959116 |
| 14 | Hose clamp | 7970072 (replaces 7963531) |
| 15 | Clamp | 7398373 |
| 20 | Bracket | 7550361 |
| 20 | Bracket | 7593452 |
| 21 | Screw | 7551641 |
| 22 | Screw | 55562121 (replaces 7967938) |
| 23 | Screw | 7973787 |
| 23 | Screw | 7973795 |
| Gasket kit | 8989857 |
