Saab 9000 1985-1989 Power steering gear

Group 6 Front wheel suspension, section 220

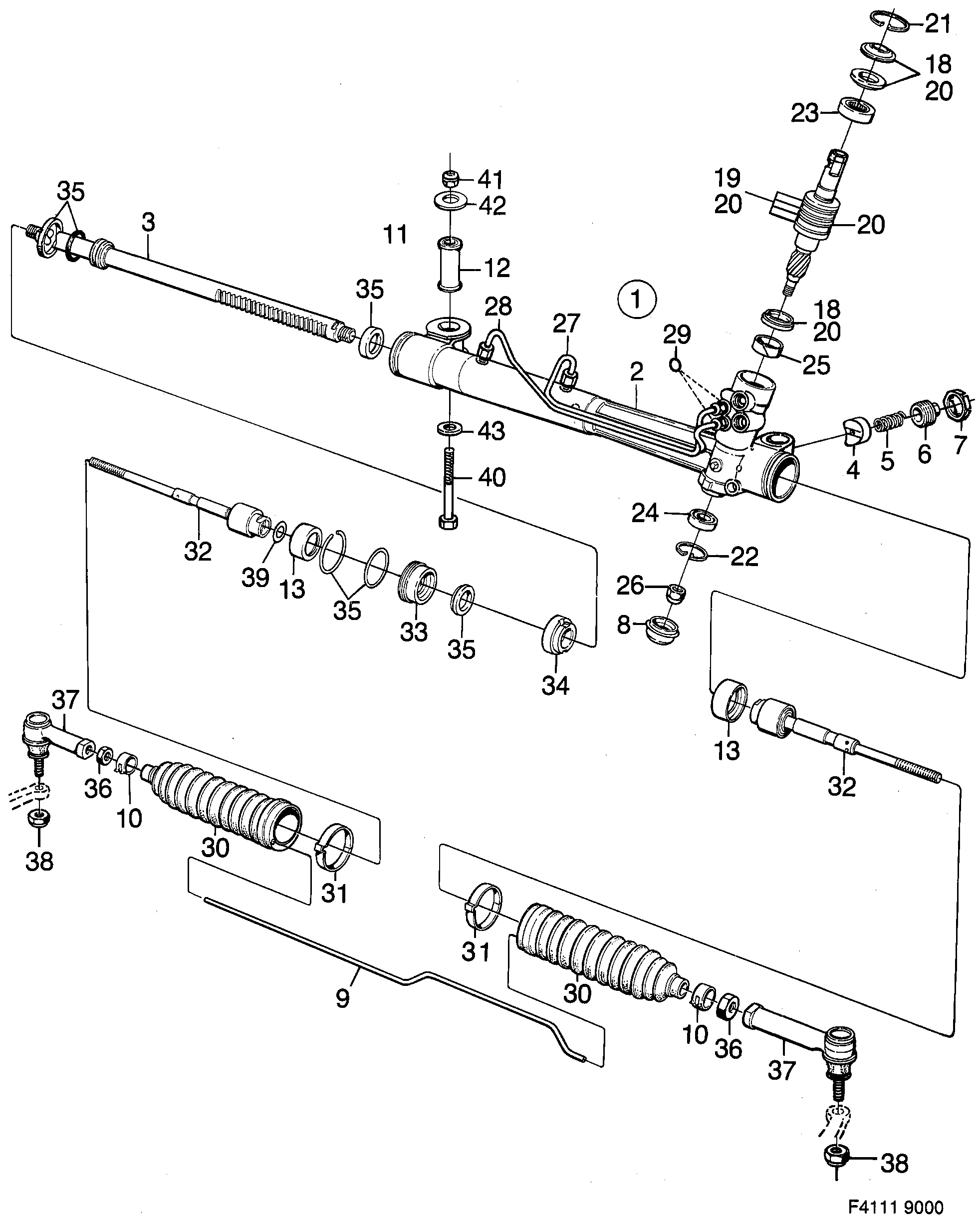

Saab 9000 Power steering gear diagram

Pos	Article	Part No.
1	Steering box	8827164 (replaces 4105052)
1	Steering box	8993669 (replaces 8993529)
1	Steering box	4105060
2	Steering box	8968737
3	Rack	4105508 (replaces 8955601)
3	Rack	4105516 (replaces 8960536)
4	Plunger	4199923 (replaces 8937005)
5	Spring	8963985
6	Screw	8937021
7	Lock nut	8937039
8	Cap	8955742
9	Pipe	8955718
10	Clamp	8937161
11	Rubber bushing kit	8993511
12	Rubber bushing	8934119
13	Ring	8936684
18	Sealing kit	4104493
	Seal	4104022
	Seal	4103990
	Seal	4104592
19	Sealing kit	4104519
	Teflon ring	8936882
20	Repair kit	4104535
	Pinion	8967929
25	Bushing	8936619
20	Repair kit	4104550
	Pinion	8967937
21	Lock ring	8936908
22	Lock ring	8936973
23	Needle bearing	30539591 (replaces 8936932)
24	Ball bearing	8936965
26	Lock nut	4104162
27	Pipe set	4105565
	Pipe	8962565
29	O-ring	4104014
27	Pipe set	4105581
	Pipe	8964090
28	Pipe set	4105573
	Pipe	8962573
28	Pipe set	4105599
	Pipe	8964082
30	Bellows kit	8962243
	Bellows	8955692
31	Clamp	8961310
30	Bellows kit	8962516
	Bellows	8962524
32	Steering rod	8962250
	Steering rod	8955650
33	End plate	8955619
34	Bushing	8955635
35	Sealing kit	4104527
	O-ring	4103958
	Seal	4103966
	Seal	4103974
	O-ring	4103982
	Piston ring	8937070
	Piston ring	8970873
	Lock ring	8955643
36	Nut	12781815 (replaces 8959587)
37	Drag link end	8993453
38	Lock nut	8151482 (replaces 8073546)
38	Lock nut	8151482
39	Spacer washer	8946360
40	Screw	13253472 (replaces 8965956)
42	Washer	8934259
43	Washer	11011199 (replaces 8073116)
