Saab 9000 1994-1998 Intermediate shaft Bracket

Group 6 Front wheel suspension, section 210

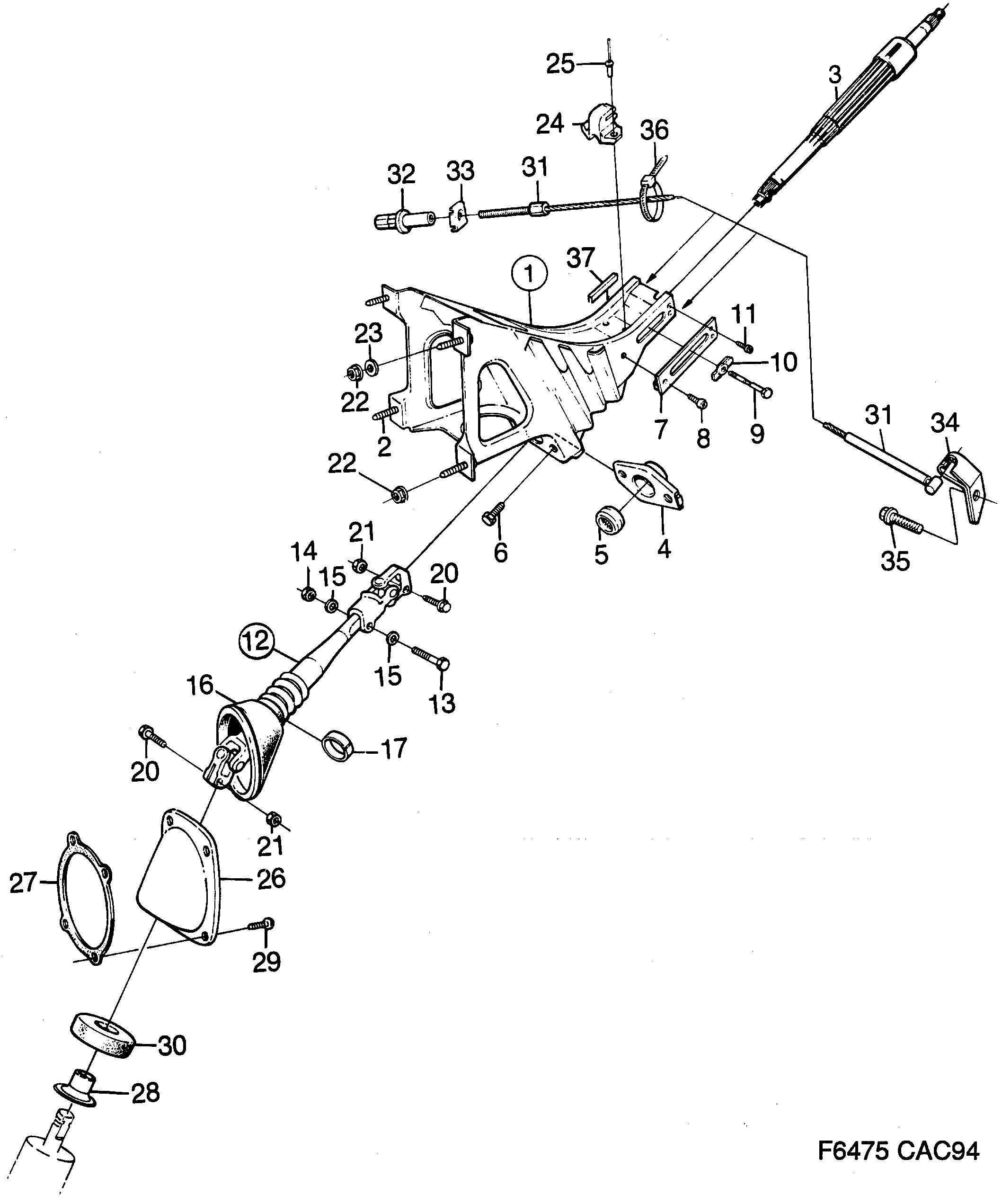

Saab 9000 Intermediate shaft Bracket diagram

Pos	Article	Part No.
1	Bracket	30565428 (replaces 4002994)
1	Bracket	30565428 (replaces 4801619)
1	Bracket	4107744
1	Bracket	4531620
1	Bracket	4801601
1	Bracket	32000215 (replaces 4531638)
1	Bracket	32000215 (replaces 4801593)
2	Screw	7398787
4	Bearing housing	8952194
5	Needle bearing	8956104
6	Screw	7399934
7	Slide rail	8971343 (replaces 8971657)
7	Slide rail	8971343
8	Screw	7974512
11	Screw	4940292 (replaces 7973753)
11	Screw	4940292
12	Intermediate shaft	4002259
12	Intermediate shaft	4002234
13	Hexagon screw	7985898 (replaces 7972334)
13	Hexagon screw	7985898
14	Lock nut	7968415
15	Washer	32000432 (replaces 9166372)
16	Bellows	4846408 (replaces 8956252)
16	Bellows	4846408
17	Bushing	4001400
22	Nut	7979602
22	Nut	92150143 (replaces 7971922)
23	Washer	7398852
23	Washer	7982317
24	Bracket	8955809
25	Rivet	7961675
26	Protecting casing	8956211
26	Protecting casing	4532859
27	Seal	8956245
28	Bushing	8956534
29	Screw	7971294
29	Screw	92153146 (replaces 7972607)
30	Seal	8967572
30	Seal	4629523
31	Cable	9586900
32	Adjusting nut	9101221
33	Washer	9587171
34	Bracket	9586918
35	Screw	9794132
35	Screw	11900016 (replaces 7976897)
36	Tie strap	7971864
37	Protecting moulding	9519737
