Saab 9000 1985-1989 Intermediate shaft Bracket

Group 6 Front wheel suspension, section 190

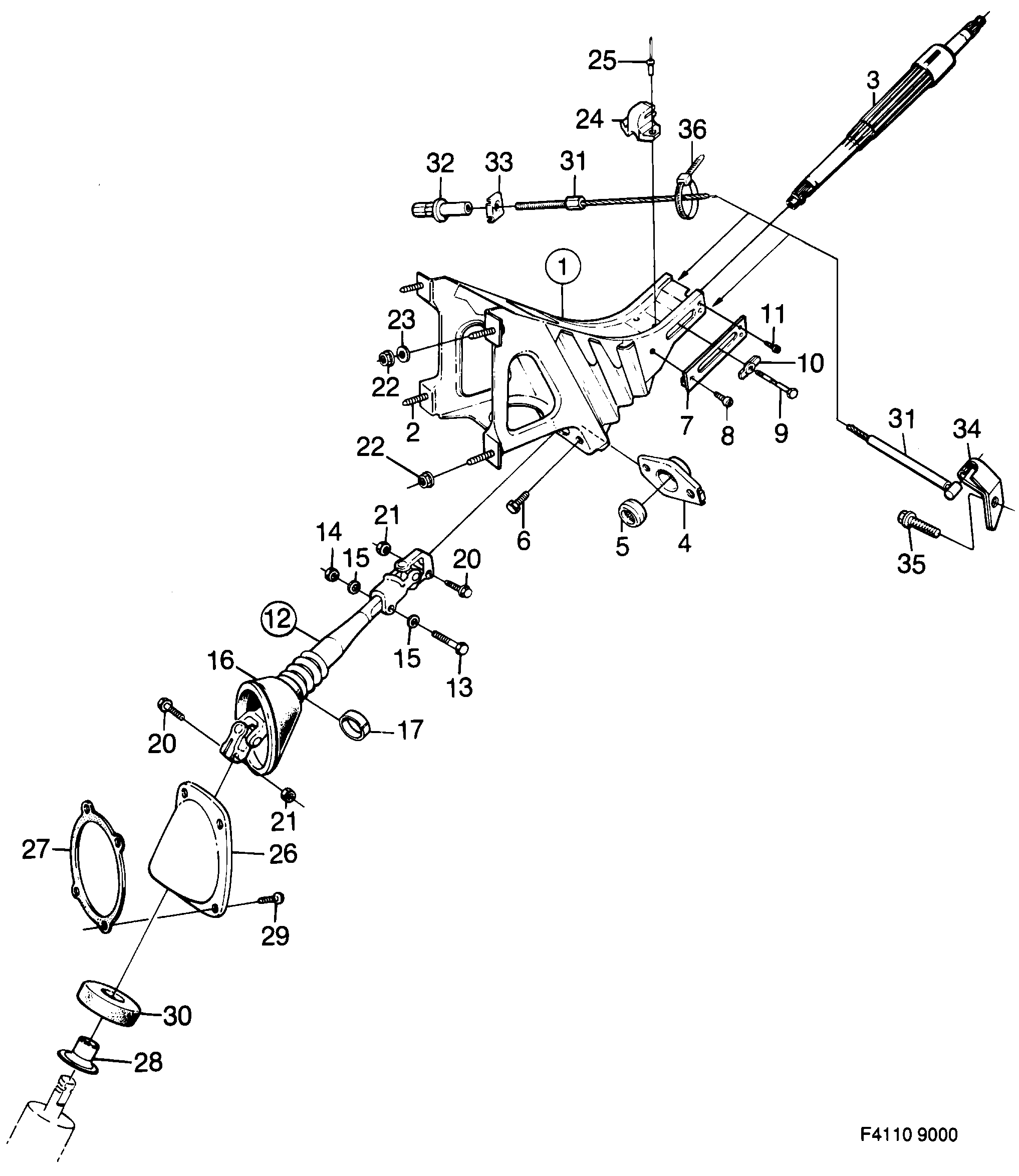

Saab 9000 Intermediate shaft Bracket diagram

Pos	Article	Part No.
1	Bracket	8973448
1	Bracket	30565428 (replaces 4002994)
1	Bracket	8973455
2	Screw	8954497
2	Screw	7398787
4	Bearing housing	8952194
5	Needle bearing	8956104
6	Screw	7399934
7	Slide rail	4002648 (replaces 8963332)
7	Slide rail	8971343
7	Slide rail	8971343 (replaces 8971657)
8	Screw	7974512 (replaces 7973761)
8	Screw	7974512
11	Screw	4940292 (replaces 7973753)
12	Intermediate shaft	4002259 (replaces 8967523)
12	Intermediate shaft	4002259 (replaces 8956849)
12	Intermediate shaft	4002259 (replaces 4002226)
12	Intermediate shaft	4002259
12	Intermediate shaft	4002234 (replaces 8967549)
12	Intermediate shaft	4002234 (replaces 8957581)
12	Intermediate shaft	4002234 (replaces 4002242)
12	Intermediate shaft	4002234
13	Hexagon screw	7985898 (replaces 7972334)
14	Lock nut	7968415
15	Washer	92153033 (replaces 8029985)
16	Bellows	4846408 (replaces 8956252)
17	Bushing	4001400 (replaces 4004206)
17	Bushing	4001400
22	Nut	7974371
22	Nut	7979602
23	Washer	7398852
24	Bracket	8955809
25	Rivet	7961675
26	Protecting casing	8956211
27	Seal	8956245
28	Bushing	8956534
29	Screw	7971294
30	Seal	8967572
31	Cable	9586900
32	Adjusting nut	9101221
33	Washer	9587171
34	Bracket	9586918
35	Screw	7975113
36	Tie strap	7971864
